Description
4K HDMI Audio De-Embedder/Extractor with TOSLINK, RCA and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz
The P130-000-AUDIO supports both two-channel stereo and multi-channel audio up to 5.1 surround sound. It also supports both uncompressed audio, such as LPCM, and compressed audio formats, including DTS® and Dolby Digital®. An LED indicates when the unit is receiving power, transmitting an audio/video signal or transmitting 5.1-channel surround sound.
On the video side, the P130-000-AUDIO transmits Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 50/60 Hz. Product is also HDCP compatible.
Key Features
- Supports multi-channel audio up to 5.1 surround sound
- Features 3.5 mm stereo, TOSLINK and RCA digital audio outputs
- Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Supports uncompressed audio, such as LPCM
- Supports compressed audio, including DTS and Dolby Digital
Description

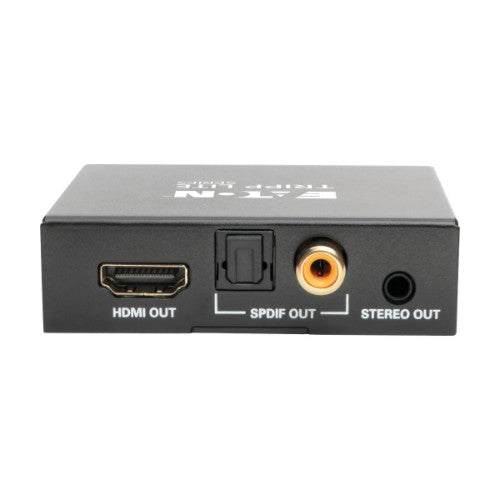

The P130-000-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor is an ideal solution for connecting an HDMI source, such as a Blu-rayTM player or video game system, to audio speakers that don’t have an HDMI input port. It separates the audio track from the HDMI signal and sends it directly to an alternate HDMI audio system. It features 3.5 mm stereo, TOSLINK digital optical and RCA digital audio outputs to match most non-HDMI receivers and audio systems.The P130-000-AUDIO supports both two-channel stereo and multi-channel audio up to 5.1 surround sound. It also supports both uncompressed audio, such as LPCM, and compressed audio formats, including DTS® and Dolby Digital®. An LED indicates when the unit is receiving power, transmitting an audio/video signal or transmitting 5.1-channel surround sound.
On the video side, the P130-000-AUDIO transmits Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 50/60 Hz. Product is also HDCP compatible.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Audio ports quantity | 3 |
| Video out | HDMI |
| Features | |
| LED indicators | Yes |
| Colour depth | 36 bit |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Black |
| 3D | Yes |
| Country of origin | Vietnam |
| Packaging data | |
| Package weight | 9.17 oz (260 g) |
| Package depth | 4.92" (125 mm) |
| Package width | 6.69" (169.9 mm) |
| Package height | 2.36" (59.9 mm) |
| Packaging content | |

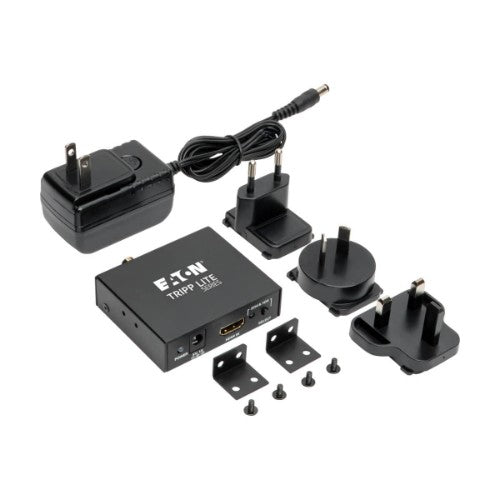

| AC adapter included | Yes |
| Manual | Yes |
| Video | |
| Colour depth | 36 bit |
| Supported graphics resolutions | 3840 x 2160 |
| Maximum resolution | 3840 x 2160 pixels |
| 3D | Yes |
| Colour | |
| Product colour | Black |
| Indication | |
| LED indicators | Yes |
| Technical details | |
| Supported audio channels | 5.1 |
| Package width | 6.69" (169.9 mm) |
| Package height | 2.36" (59.9 mm) |
| Video out | HDMI |
| Weight & dimensions | |
| Package weight | 9.17 oz (260 g) |
| Package depth | 4.92" (125 mm) |
| Package width | 6.69" (169.9 mm) |
| Package height | 2.36" (59.9 mm) |
| Logistics data | |
| Master (outer) case width | 12.4" (315 mm) |
| Master (outer) case length | 10.4" (264.9 mm) |
| Master (outer) case height | 7.48" (190 mm) |
| Master (outer) case gross weight | 6.44 lbs (2.92 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332193190 |
| Harmonized System (HS) code | 85176990 |
| Country of origin | Vietnam |
