Description
2-Port DisplayPort to VGA Hub, DP1.2, TAA
The B157-002-VGA supports video resolutions up to 1080p @ 60 Hz (1920 x 1080), as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.
Key Features
- Supports video resolutions up to 1080p @ 60 Hz (1920 x 1080)

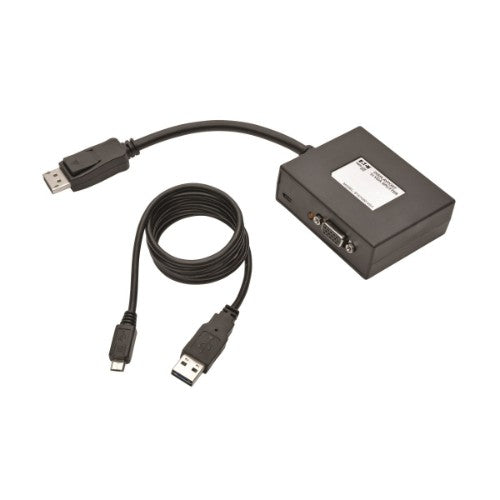

- Included USB Micro-B cable supplies power to unit
- Works with all operating systems
- Compact enough for easy carrying in backpack or laptop bag
- Plug and play—no software or drivers required
Description

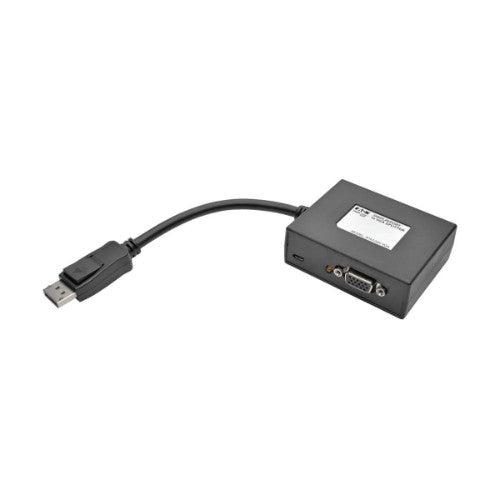

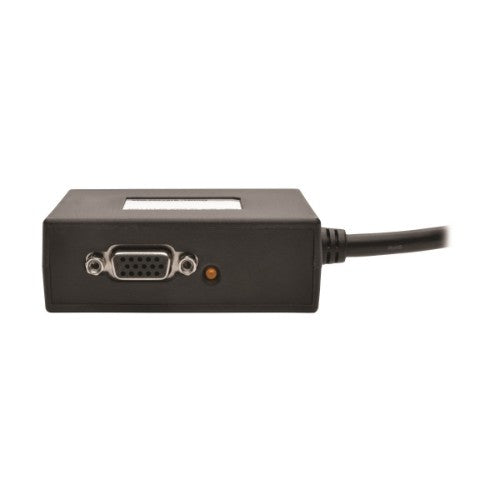

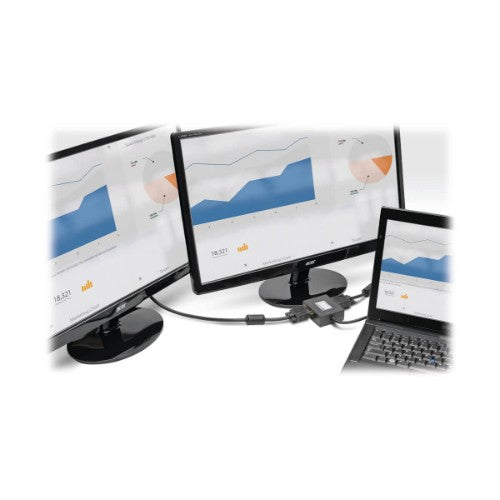

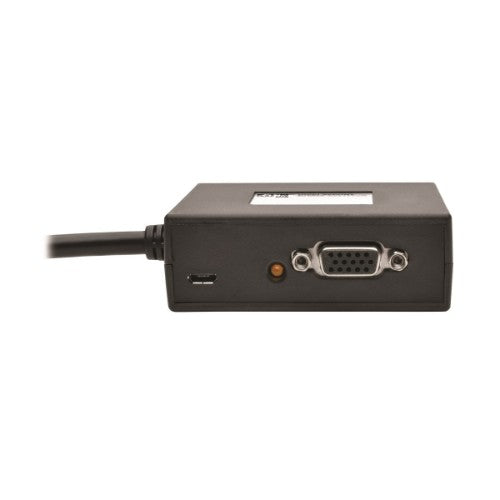

The B157-002-VGA 2-Port DisplayPort to VGA Splitter converts and splits a DisplayPort video signal for display on two VGA-enabled monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, retail settings, trade shows and classrooms, this compact splitter features a built-in DisplayPort cable that connects to the source. It lets you use your existing VGA displays instead of buying new DisplayPort monitors or docking stations.The B157-002-VGA supports video resolutions up to 1080p @ 60 Hz (1920 x 1080), as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x VGA |
| Connector(s) | DisplayPort |
| Cable length | 35.8" (0.91 m) |
| Features | |
| LED indicators | Status |
| Maximum refresh rate | 60 Hz |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum resolution | 1920 x 1080 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Product colour | Black |
| Certification | TAA, RoHS |
| Cable length | 35.8" (0.91 m) |
| Country of origin | Taiwan |
| Packaging data | |
| Package weight | 9.52 oz (270 g) |
| Package depth | 5.6" (142.2 mm) |
| Package width | 7.9" (200.7 mm) |
| Package height | 1.7" (43.2 mm) |
| Packaging content | |
| Manual | Yes |
| Cables included | Micro-USB |
| Video | |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum resolution | 1920 x 1080 pixels |
| Full HD | Yes |
| HDCP | Yes |
| Supported video modes | 1080p |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | TAA, RoHS |
| Indication | |
| LED indicators | Status |
| Technical details | |
| Connection to PC | Yes |
| Package width | 7.9" (200.7 mm) |
| Package height | 1.7" (43.2 mm) |
| Video out | 2x VGA |
| Plug and Play | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Package weight | 9.52 oz (270 g) |
| Package depth | 5.6" (142.2 mm) |
| Package width | 7.9" (200.7 mm) |
| Package height | 1.7" (43.2 mm) |
| Logistics data | |
| Master (outer) case width | 18" (457.2 mm) |
| Master (outer) case length | 8.4" (213.4 mm) |
| Master (outer) case height | 6" (152.4 mm) |
| Master (outer) case gross weight | 6 lbs (2.72 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332191493 |
| Harmonized System (HS) code | 8525.50.3035 |
| Country of origin | Taiwan |
