Tripp Lite B130-101-U AV extender AV transmitter Black

Tripp LiteSKU: B130-101-U

Price:
Sale price$115.85

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, Up to 500 ft. (152 m), TAA

Key Features

  • Extends a 1920 x 1440 (60 Hz) signal up to 350 ft. (106.68 m), or a 1024 x 768 (60 Hz) signal up to 500 ft. (152.4 m), when using 24 AWG, Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • USB-powered...no external AC power needed
  • Built-in VGA dongles...no need for additional VGA cables
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

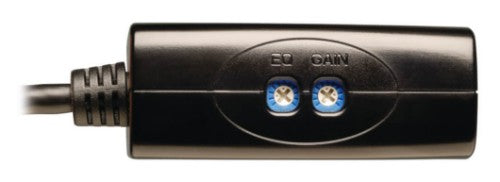

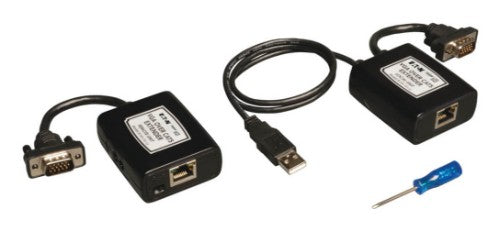

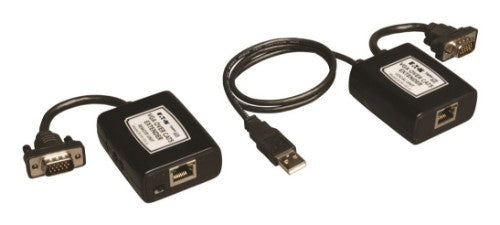

This USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440 (60 Hz) signal up to 350 feet (106.7 meters) or a 1024 x 768 (60 Hz) signal up to 500 feet (152.4 meters) when using 24 AWG Solid Wire Cat5e/6 cable, such as N022-01K-GY (Cat5) and N222-01K-GY (Cat6). Ideal for digital signage applications, classroom or auditorium projectors, and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes gain adjustment for brightness/darkness control and equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required. Kit includes a transmitter with VGA and USB (power) pigtails and a receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Specifications

Features
Type AV transmitter
Maximum resolution 1920 x 1440 pixels
Cable types supported Cat5e
Maximum transfer distance 6000" (152.4 m)
Supported graphics resolutions 1920 x 1440, 1024 x 768 (XGA)
Product colour Black
Ports & interfaces
Ethernet LAN Yes
RJ-45 input ports 2
VGA (D-Sub) input ports 2
DC-in jack No
Connectivity technology Wired
Power
External power adapter No
Packaging data
Package depth 5.6" (142.2 mm)
Package width 7.9" (200.7 mm)
Package height 1.7" (43.2 mm)
Package weight 7.05 oz (200 g)
Packaging content
Manual Yes
Technical details
Country of origin Taiwan
Compliance certificates RoHS
Logistics data
Master (outer) case width 18.4" (467.4 mm)
Master (outer) case length 8.9" (226.1 mm)
Master (outer) case height 12.2" (309.9 mm)
Master (outer) case gross weight 12.1 lbs (5.5 kg)
Products per master (outer) case 20 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332166606
