Tripp Lite B127E-1A1-HH AV extender AV transmitter & receiver Black

Tripp LiteSKU: B127E-1A1-HH

Price:
Sale price$489.15

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

HDMI over Cat6 Extender Kit with Power over Cable - 4K 60 Hz, 4:4:4, 328 ft. (100 m), TAA

Key Features

  • Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
  • Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
  • Transmitter's local HDMI port allows you to see the remote image being displayed
  • Supports multi-resolution output to allow for combination of different display types
  • USB, IR and RS-232 ports let you control the source device

Description

HDMI Extender Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths

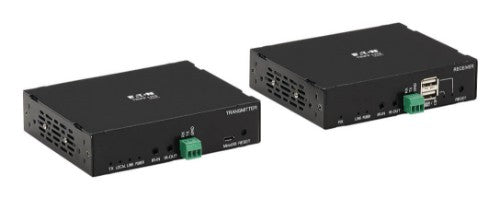

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127E-1A1-HH extends 4K video and stereo audio signals from an HDMI source device to an HDMI display up to 328 feet (100 meters) away via user-supplied Cat6 cabling.


Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-1A1-HH supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. While the receiver features built-in equalization, which automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Monitor your extended content locally by connecting an HDMI TV or display to the transmitter's local HDMI port. The B127E-1A1-HH supports multi-resolution, giving you the flexibility of connecting a 1080p or 4K at 30 Hz local display without affecting the extended 4K at 60 Hz signal.


Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.


Start, Stop, Fast Forward, Pause, Rewind Video from More Than 300 ft. Away
Use the included bi-directional IR cables or the included RS-232 adapters to control video and audio from the HDMI display's location. You can also connect a keyboard and mouse to the receiver's USB port to operate the video source device from up to 328 feet away from the transmitter.


Plug-and-Play Operation for Quick Setup and Immediate Use

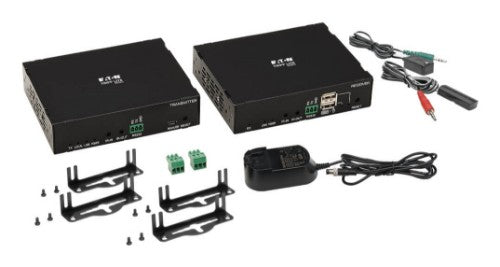

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with user-supplied HDMI cables (such as P568- or P569-Series). Then, connect the two units using Cat6 patch cable (such as N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 328 feet away.

Specifications

Features
Material Metal
HDCP Yes
Audio output channels 7.1 channels
Rack mounting Yes
Maximum refresh rate 60 Hz
Certification CE, FCC, REACH
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Maximum transfer distance 3937" (100 m)
Audio system Multichannel
LED indicators Yes
Product colour Black
Extended display identification data (EDID) Yes
HDCP version 2.2
Ports & interfaces
Remote (IR) output 2
Remote (IR) input 2
USB ports quantity 3
RS-232 output ports 1
RS-232 input ports 1
Ethernet LAN Yes
USB connector type Micro-USB B, USB Type-A
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 3
Number of HDMI outputs 1
HDMI version 2.0
Connectivity technology Wired
Power
Input current 0.6 A
Output current 1 A
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
External power adapter Yes
Operating voltage 24 V
Operational conditions
Storage relative humidity (H-H) 0 - 85%
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -15 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Packaging data
Package type Box
Package depth 5.9" (149.9 mm)
Package width 13.5" (343.9 mm)
Package height 3.27" (83.1 mm)
Package weight 2.84 lbs (1.29 kg)
Packaging content
Mounting kit Yes
AC adapter included Yes
Manual Yes
Included power plug types AU, EU, NA, UK
Technical details
Country of origin Taiwan
Compliance certificates RoHS
Logistics data
Master (outer) case width 17.3" (438.9 mm)
Master (outer) case length 14.3" (363 mm)
Master (outer) case height 12.8" (324.1 mm)
Master (outer) case gross weight 30 lbs (13.6 kg)
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332239133
