Tripp Lite B127A-1A1-BHBH AV extender AV transmitter & receiver Black

Tripp LiteSKU: B127A-1A1-BHBH

Price:
Sale price$235.36

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB/IR, PoC, HDR, HDCP 2.2, 230 ft., TAA

Key Features

  • Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
  • Extend touch screen ability for Interactive Flat Panel Displays
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
  • Transmitter's local port shows you the 4K image being displayed at the other end
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....and More
The B127A-1A1-BHBH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.
Dip Switches Extend Your Choice of Either USB or IR.
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to either control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-1A1-BHBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the transmitter or receiver over Cat6 cable. LEDs on both unit will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the unit where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the receiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BHBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Features
Material Metal
Colour depth 36 bit
Audio output channels 7.1 channels
Wall mountable Yes
Rack mounting Yes
Consumer Electronics Control (CEC) support Yes
3D Yes
Maximum refresh rate 60 Hz
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5, Cat5e, Cat6, HDMI
Maximum transfer distance 2759.8" (70.1 m)
Audio system Multichannel
LED indicators Yes
Product colour Black
Extended display identification data (EDID) Yes
Ports & interfaces
Remote (IR) output 2
Remote (IR) input 2
USB ports quantity 3
USB version 1.1
USB connector type Micro-USB, USB Type-A
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 1
Number of HDMI outputs 2
DC-in jack Yes
Connectivity technology Wired
Digital audio optical out 1
Power
Input current 0.6 A
Output current 1 A
AC input voltage 100 - 240 V
AC input frequency 50-60 Hz
Operating voltage 24 V
Operational conditions
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -15 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Receiver weight 15.9 oz (450 g)
Transmitter weight 15.9 oz (450 g)
Transmitter dimensions (WxDxH) 4.53 x 2.46 x 1.06" (115 x 62.4 x 27 mm)
Receiver dimensions (WxDxH) 4.53 x 2.46 x 1.06" (115 x 62.4 x 27 mm)
Packaging data
Package depth 6.46" (164.1 mm)
Package width 10.2" (260.1 mm)
Package height 2.17" (55.1 mm)
Package weight 23.3 oz (660 g)

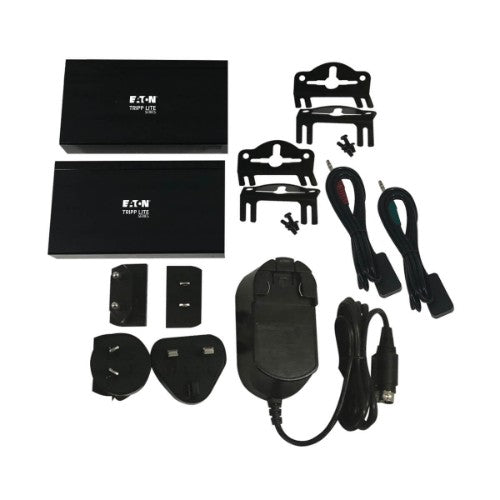

Packaging content
Mounting kit Yes
Cables included IR
AC adapter included Yes
Manual Yes
Included power plug types AU, EU, NA, UK
Technical details
Country of origin Taiwan
Sustainability compliance Yes
Compliance certificates CE, REACH, RoHS
Logistics data
Master (outer) case width 22.6" (573 mm)
Master (outer) case length 10.7" (273 mm)
Master (outer) case height 6.89" (175 mm)
Master (outer) case gross weight 15.2 lbs (6.9 kg)
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332258622
