Tripp Lite B126-1A0 video splitter HDMI

Tripp LiteSKU: B126-1A0

Price:
Sale price$175.62

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

HDMI over Cat5/Cat6 Active Extender, Box-Style Remote Receiver for Video and Audio, 1920x1200 at 60Hz/1080p

Description

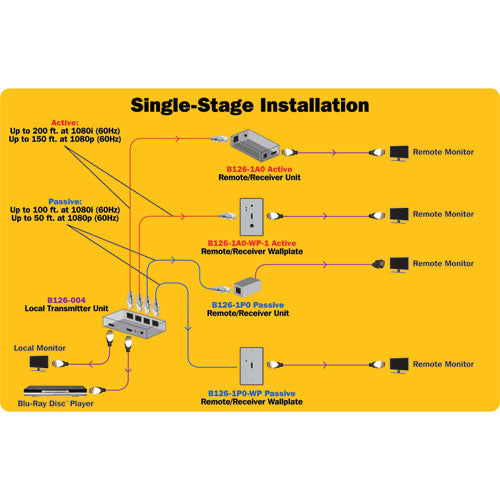

The B126-1A0 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite’s B126-002 or B126-004 transmitter to extend an HDMI signal to a projector, monitor or television. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.

The receiver uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the monitor and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series).

The B126-1A0 can extend a 1080i (60 Hz) signal up to 61 m (200-ft.), a 1080p (60 Hz) signal up to 46 m (150-ft.) and a 3D signal up to 38 m (125-ft.) You can connect up to three B126-110 remote repeaters in the chain for a total of four HDMI displays and full signal extension of 213 m (700-ft.) (1080i), 152 m (500-ft.) (1080p) or 122 m (400-ft.) (3D).

In addition to crystal-clear video, the B126-1A0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-Series transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

● For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia


● Works in tandem with Tripp Lite’s B126-002 or B126-004 transmitter unit
● Extends a 1080i (60 Hz) signal up to 61 m (200-ft.), a 1080p (60 Hz) signal up to 46 m (150-ft.) and a 3D signal up to 38 m (125-ft.)
● Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 213 m (700-ft.) (1080i), 152 m (500-ft.) (1080p) and 122 m (400-ft.) (3D)
● Connects to previous link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)

Supports the Latest Video and Audio Resolutions

● Works with all operating systems and HDMI video sources
● Supports HD resolutions up to 1080p (60 Hz)
● Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with B126-002 or B126-004 transmitter unit
● Supports 24-bit True Color (8 bits per channel) and HDCP

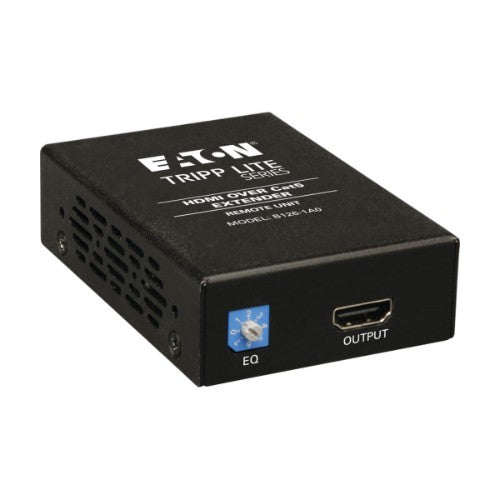

● Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use

● Plug-and-play engineering—no software or drivers to download and install
● Connects quickly to local monitor with HDMI cable, such as Tripp Lite’s P568-Series

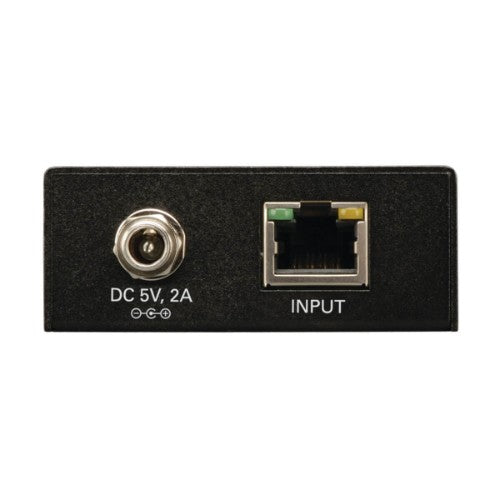

● LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain

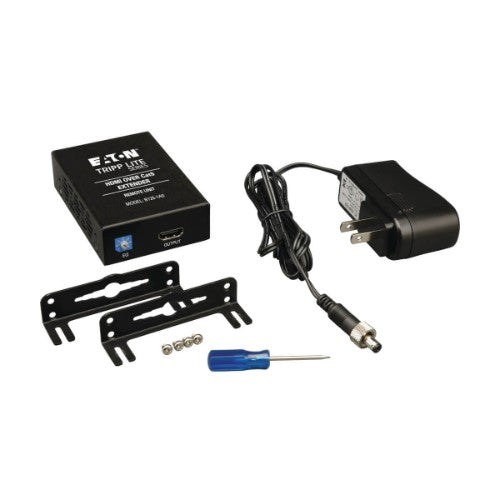

● Included mounting hardware lets you install the unit on a wall, rack or pole

Specifications

Ports & interfaces
Video ports quantity 1
Video out HDMI
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Connector(s) HDMI (FEMALE), RJ45 (FEMALE)
Cable types supported Cat5, Cat6
Ethernet LAN Yes
Features
Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum resolution 1920 x 1200 pixels
Full HD Yes
HDCP Yes
Supported video modes 1080p
Plug and Play Yes
Product colour Black
Certification RoHS
3D Yes
Country of origin Taiwan
Network
Cable types supported Cat5, Cat6
Ethernet LAN Yes
Power
Output current 2 A
Output voltage 5 V
AC input frequency 50 - 60 Hz
AC input voltage 100-240 V
Weight & dimensions
Dimensions (WxDxH) 2.5 x 3.6 x 1" (63.5 x 91.4 x 25.4 mm)
Package weight 15.9 oz (450 g)
Package depth 6.5" (165.1 mm)
Package width 7.25" (184.2 mm)
Package height 2.2" (55.9 mm)
Packaging data
Package weight 15.9 oz (450 g)
Package depth 6.5" (165.1 mm)
Package width 7.25" (184.2 mm)
Package height 2.2" (55.9 mm)
Packaging content
AC adapter included Yes
Manual Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 90%
Video
Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum resolution 1920 x 1200 pixels
Full HD Yes
HDCP Yes
Supported video modes 1080p
3D Yes
Colour
Product colour Black
Certificates
Certification RoHS
Technical details
Package width 7.25" (184.2 mm)
Package height 2.2" (55.9 mm)
Video out HDMI
Plug and Play Yes
Logistics data
Master (outer) case width 23.1" (586.7 mm)
Master (outer) case length 13.7" (348 mm)
Master (outer) case height 8.75" (222.2 mm)
Master (outer) case gross weight 21.5 lbs (9.76 kg)
Products per master (outer) case 20 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332157482
Harmonized System (HS) code 8525.50.3035
Country of origin Taiwan
