Description
HDMI over Cat5/6 Extender, Pigtail-Style Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA
The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as the N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.
The B126-1A0-U can extend a 1080p (@ 60 Hz) signal up to 125 feet (38.1 meters) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.
Key Features
- Supports high-definition video resolutions up to 1080p (@ 60 Hz)
- Supports stereo audio and HDCP
- Works with all operating systems and HDMI sources
- Built-in cable includes latching HDMI connector for a more secure connection
- Plug and play—no software, drivers or external power supply

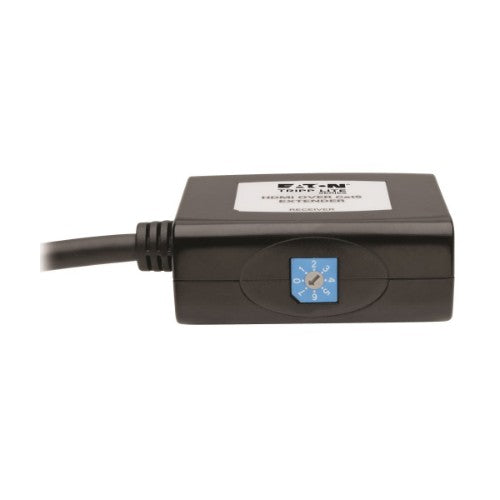

- Built-in equalization control lets you adjust monitor image
Description
The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with a B126-002 or B126-004 transmitter (sold separately) to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. A latching HDMI connector on the built-in cable provides a more secure connectionThe receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as the N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.
The B126-1A0-U can extend a 1080p (@ 60 Hz) signal up to 125 feet (38.1 meters) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Plug and Play | Yes |
| Type | AV receiver |
| Maximum resolution | 1600 x 1200 pixels |
| Cable types supported | Cat5e, Cat6 |
| Supported video modes | 480i, 480p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA) |
| LED indicators | Yes |
| Product colour | Black |
| Ports & interfaces | |
| USB ports quantity | 1 |
| USB connector type | Micro-USB B |
| RJ-45 input ports | 1 |
| Packaging data | |
| Package depth | 6" (152.4 mm) |
| Package width | 5.2" (132.1 mm) |
| Package height | 1.3" (33 mm) |
| Package weight | 8.11 oz (230 g) |
| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| Technical details | |
| Country of origin | Taiwan |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 6.4" (162.6 mm) |
| Master (outer) case length | 13.3" (337.8 mm) |
| Master (outer) case height | 5.5" (139.7 mm) |
| Master (outer) case gross weight | 3.31 lbs (1.5 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332190250 |
