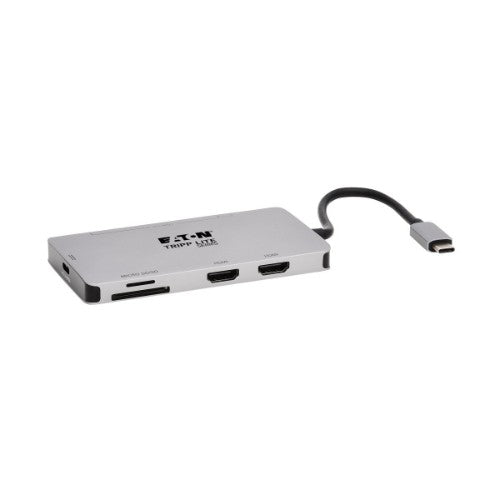

Tripp Lite USB-C Dock, Dual Display - 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A Hub, Memory Card, 100W PD Charging, Gray

EatonSKU: U442-DOCK8-GG

Price:
Sale price$101.37

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

Tripp Lite USB-C Dock, Dual Display - 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A Hub, Memory Card, 100W PD Charging, Gray, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4/2.2, Black, Gray, MicroSD (TransFlash), SD

Key Features

  • Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
  • Supports single-output UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video

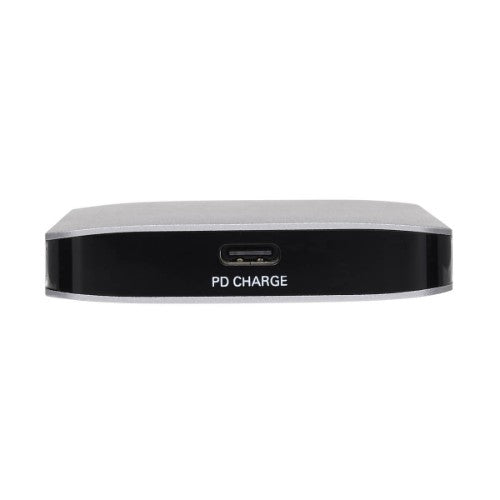

  • Power Delivery port supports 20V 5A (100W) power output for charging host device
  • USB-A and memory card ports allow connection of flash drives and other peripherals
  • Plug-and-play operation with no software required for easy, immediate installation

Description

Tripp Lite USB-C Dock, Dual Display - 4K 60 Hz HDMI, USB 3.2 Gen 1, USB-A Hub, Memory Card, 100W PD Charging, Gray. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product color: Black, Gray, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Power connector: USB Type-C, Output voltage: 20 V. Width: 4.33" (109.9 mm), Depth: 2.32" (58.9 mm), Height: 0.449" (11.4 mm). Quantity per pack: 1 pc(s), Package width: 3.94" (100.1 mm), Package depth: 0.909" (23.1 mm)

Specifications

Ports & interfaces

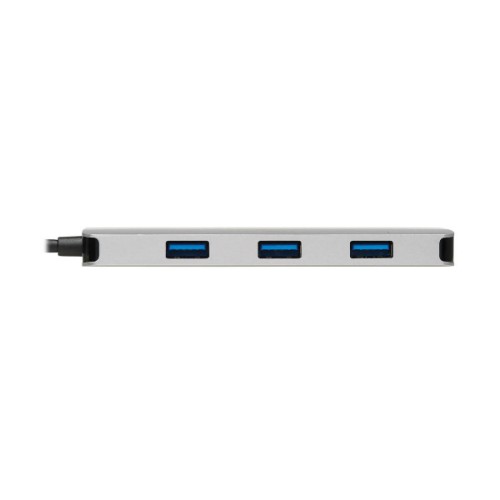

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity 0

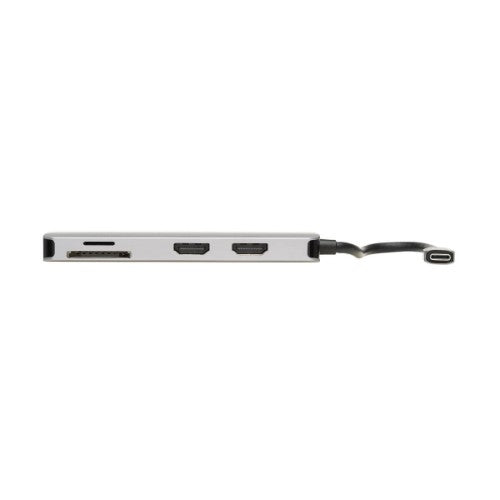

HDMI ports quantity 2
HDMI version 2.0
Microphone in No
Headphone outputs 0
Connectivity technology Wired
USB Power Delivery (USB PD) Yes
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
HDCP version 1.4/2.2
HDCP Yes
USB Type-C DisplayPort Alternate Mode Yes
Network
Ethernet LAN No
Performance
Maximum digital resolution 3840 x 2160 pixels
Number of displays supported 2
Country of origin Vietnam
Product colour Black, Gray
Card reader integrated Yes
Plug and Play Yes
Data transfer rate 5 Gbit/s
Compatible memory cards MicroSD (TransFlash), SD
Charging function Yes
HD type 4K Ultra HD
Housing material Acrylonitrile butadiene styrene (ABS), Aluminum
Maximum refresh rate 60 Hz
High Dynamic Range (HDR) supported No
Technical details
Product colour Black, Gray
Plug and Play Yes
Data transfer rate 5 Gbit/s
Charging function Yes
Sustainability compliance Yes
Master (outer) case GTIN (EAN/UPC) 10037332261288
Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Products per master (outer) case 10 pc(s)
Master (outer) case width 4.72" (119.9 mm)
Master (outer) case gross weight 2.87 lbs (1.3 kg)
Master (outer) case length 5.31" (134.9 mm)
Master (outer) case height 11.6" (294.9 mm)
Storage
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), SD
Power
Power source type USB
Power consumption (typical) 15 W
Output voltage 20 V
Output current 5 A
Power connector USB Type-C
Power cable length 4.72" (0.12 m)
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 10 - 85%
Storage relative humidity (H-H) 5 - 90%
Sustainability
Sustainability compliance Yes
Weight & dimensions
Weight 3.17 oz (90 g)
Width 4.33" (109.9 mm)
Depth 2.32" (58.9 mm)
Height 0.449" (11.4 mm)
Package weight 3.53 oz (100 g)
Package width 3.94" (100.1 mm)
Package depth 0.909" (23.1 mm)
Package height 5.51" (140 mm)
Design
Country of origin Vietnam
Product colour Black, Gray
Packaging data
Quantity per pack 1 pc(s)
Package weight 3.53 oz (100 g)
Package width 3.94" (100.1 mm)
Package depth 0.909" (23.1 mm)
Package height 5.51" (140 mm)
Packaging content
Manual Yes
Quantity per pack 1 pc(s)
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case width 4.72" (119.9 mm)
Master (outer) case gross weight 2.87 lbs (1.3 kg)
Master (outer) case length 5.31" (134.9 mm)
Master (outer) case height 11.6" (294.9 mm)
