Tripp Lite B321-4X1-HDVC video switch HDMI

EatonSKU: B321-4X1-HDVC

Price:
Sale price$91.39

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

4-Port Presentation Adapter, 4K 60 Hz (4:4:4) HDMI, DP, USB-C and 1080p VGA to HDMI, Built-In Cables, TAA

Key Features

  • Built-in 8 ft. HDMI cable connects up to 4 source devices to a single 4K display
  • HDMI, DisplayPort and USB-C cables support true 4K resolutions @ 60 Hz (4:4:4)
  • USB-C PD 3.0 port supports 20V 5A (100W) power output for charging host device
  • Plug-and-play operation with no software required for easy, immediate installation
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

4-in-1 Multi-Format Presentation Adapter Allows Convenient Connection to an HDMI Display

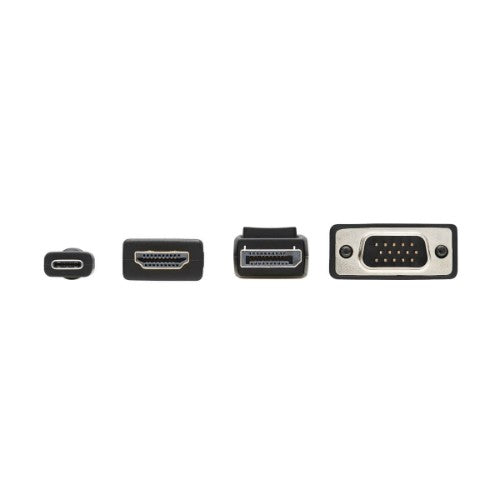

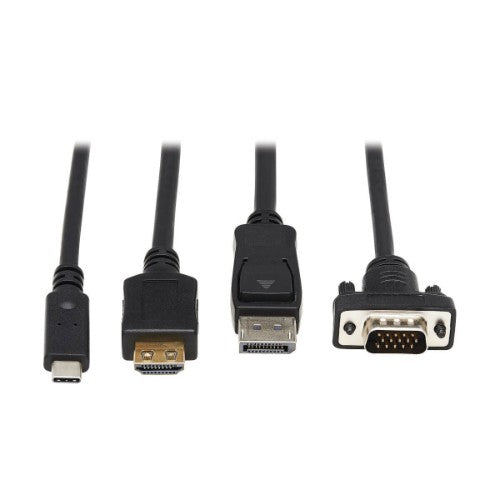

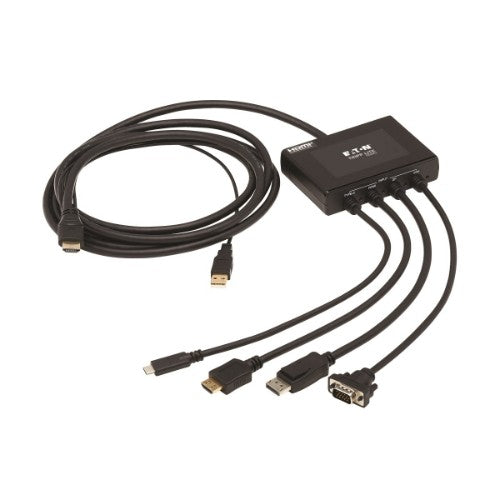

This presentation adapter connects up to four separate source devices of different audio/video formats to your 4K television, projector or monitor’s HDMI input. Without the clutter of extra cables, the B321-4X1-HDVC lets you immediately connect your laptop, tablet or other device to an HDMI display. This adapter features built-in HDMI, DisplayPort, USB-C and VGA cables, making it great for a meeting room where connection to the display is shared among different users with different devices. A built-in USB cable connects to the display to power the adapter.

Versatile Adapter Suitable for Wide Range of Audio/Video Applications

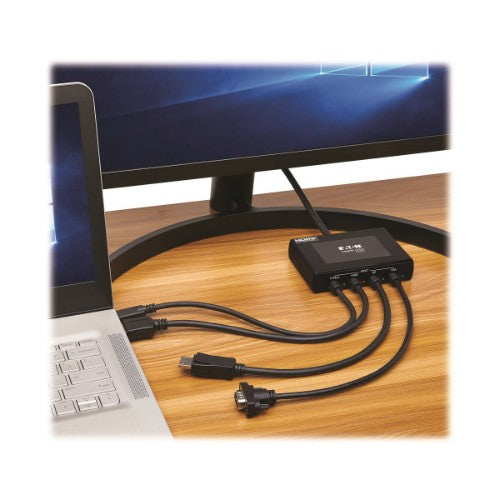

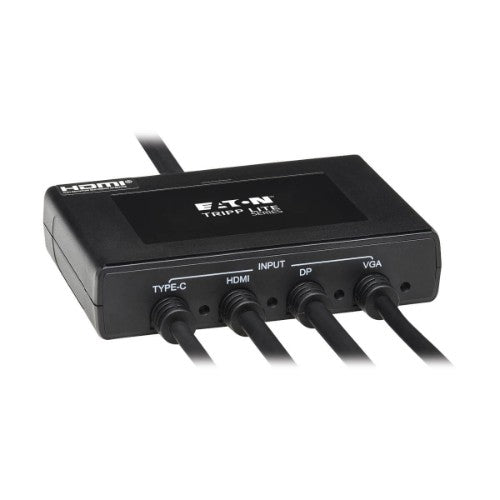

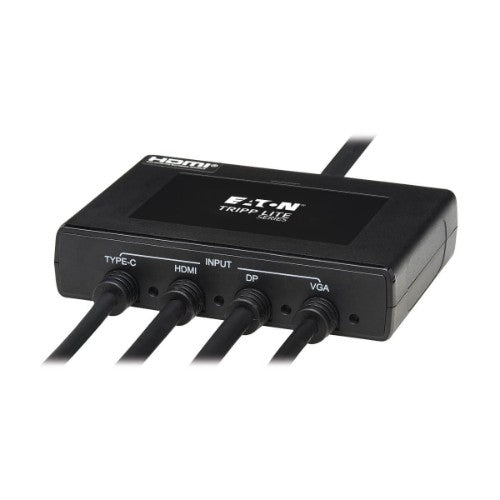

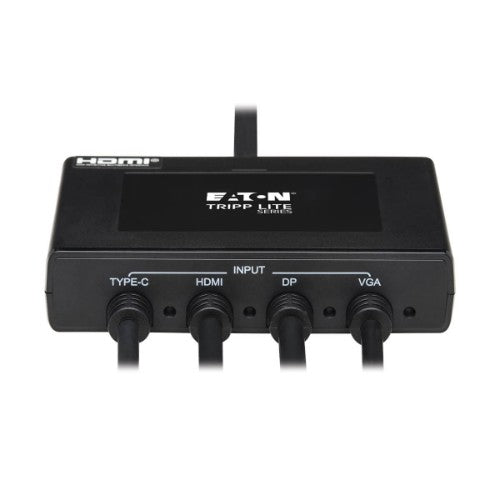

By connecting the built-in eight-foot (2.4-meter) HDMI cable to a display in your conference room, lecture hall or classroom, you can quickly add a source device without untangling an external adapter cable or trying to find one with the right connectors. The multi-format B321-4X1-HDVC is recommended wherever a variety of A/V signals are transmitted to a 4K display, including home theaters, exhibition centers and trade shows. If multiple sources are connected, you can switch from one to another using the manual push button on the unit. Orange LEDs indicate which source is currently in use.

Transmits True 4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio
The built-in HDMI, DisplayPort and USB-C cables support true 4K resolutions at 60 Hz. The HDMI cable also supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Full 7.1-channel digital surround sound ensures your ears receive the same treat as your eyes. The VGA port supports HD video up to 1920 x 1080 (1080p) at 60 Hz.

PD 3.0 Charging Port Charges the USB-C Source to Avoid Battery Drain and Signal Loss

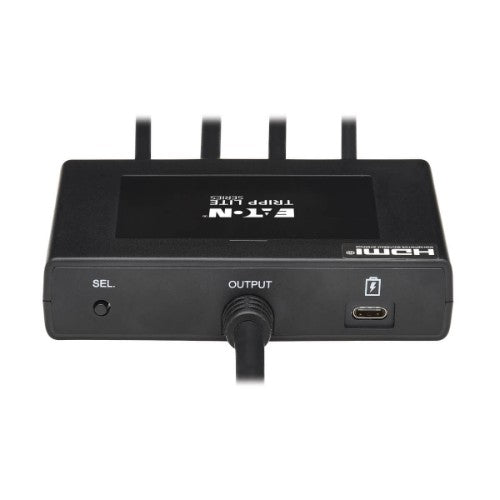

The USB-C Power Delivery port provides up to 20V 5A (100W), of which 90W is used to charge and power the connected USB-C device, such as a MacBook Pro or Windows laptop (the other 10W is reserved for the USB-C chipset system). Connect the device’s power supply or power adapter between the USB-C PD 3.0 port and an available AC outlet to prevent the source from running out of power prematurely.

TAA-Compliant for GSA Schedule Purchases
The B321-4X1-HDVC is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Ports & interfaces
VGA (D-Sub) input ports 1
Video port type HDMI
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
Number of HDMI outputs 1
HDMI in 1
DisplayPorts quantity 1
USB port type USB Type-C
Features
HD type 4K Ultra HD
Connector contacts plating Nickel
3D Yes
Colour depth 12 bit
Product colour Black
Supported video modes 1080p, 2160p
Supported graphics resolutions 1920 x 1080 (HD 1080), 4096 x 2160
Maximum resolution 4096 x 2160 pixels
Material Plastic
LED indicators Yes
HDCP Yes
Country of origin Taiwan
HDCP version 2.2
Extended display identification data (EDID) Yes
Weight & dimensions
Width 2.95" (74.9 mm)
Height 4.25" (108 mm)
Depth 0.941" (23.9 mm)
Weight 12.3 oz (350 g)
Packaging data
Package width 11.4" (290.1 mm)
Package height 2.17" (55.1 mm)
Package depth 6.46" (164.1 mm)
Package weight 16.2 oz (460 g)
Packaging content
Manual Yes
Quantity per pack 1 pc(s)
Operational conditions
Storage relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -15 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 85%
Sustainability
Sustainability compliance Yes
Technical details
Quantity per box 1 pc(s)
Sustainability compliance Yes
Harmonized System (HS) code 85176990
Compliance certificates CE, REACH, RoHS
Logistics data
Master (outer) case gross weight 10.5 lbs (4.78 kg)
Products per master (outer) case 10 pc(s)
Master (outer) case width 22.6" (573 mm)
Master (outer) case length 11.9" (303 mm)
Master (outer) case height 6.89" (175 mm)
Country of origin Taiwan
Master (outer) case GTIN (EAN/UPC) 10037332262698
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
