Tripp Lite B127A-4X4-BH4PH video splitter HDMI 2x RJ-45

EatonSKU: B127A-4X4-BH4PH

Price:
Sale price$1,129.74

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

4x4 HDMI over Cat6 Matrix Switch Kit, Switch/4x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

Key Features

  • Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
  • Switches between 4 source devices by manual push button or included IR remote
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Power over Cable (PoC) technology provides power to receivers via Cat6 cable
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

HDMI Matrix Switch Kit Ideal for Digital Signage in Offices, Schools and Trade Shows

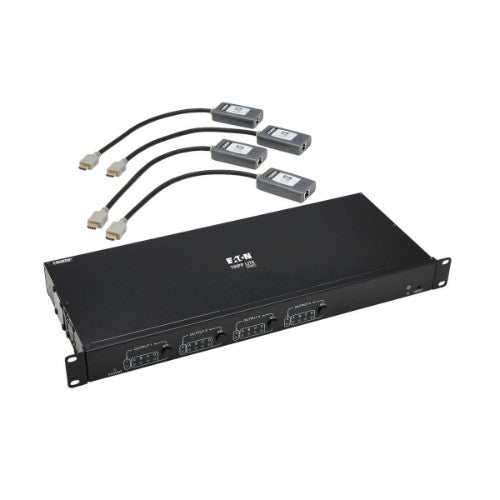

This HDMI matrix switch kit includes a quad-input switch and four pigtail-style receivers. It’s recommended for office buildings, schools, houses of worship, trade shows, meeting facilities, retail settings, hotels and other locations with video presentations or digital signage applications. The matrix switch and receivers extend 4K audio/video up to 230 feet (70.1 meters), making the kit ideal for areas where the four source devices and four remote displays are farther apart than conventional cabling allows.

Extends a 4K A/V Transmission up to 230 ft....or Even Farther
The B127A-4X4-BH4PH allows video from any of four connected HDMI sources to display on four HDMI displays up to 230 feet away via user-supplied Cat6 cabling. You may select which video to display on which monitors by using the push button on the switch or the included IR remote control, which lets you operate the switch from the receiver end of the installation. By installing B127A-010-H signal repeaters (sold separately) between the switch and receivers, you can extend the signal up to 400 feet (121.9 meters) total per video output.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-4X4-BH4PH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with 36-bit Deep Color. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
After you connect the included external power supply to the switch, Power over Cable (PoC) technology powers the receivers over Cat6 cable. LEDs on both the switch and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers without the need for a nearby AC outlet.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in the living room, but want to extend video from the source devices to the older 1080p TV in the kitchen and the 4K (at 30 Hz) monitor in your home office. The B127A-4X4-BH4PH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included matrix switch and receivers operate with no software required. The switch comes with detachable surface-mount brackets for mounting to a pole, rack or flat surface. Connect the switch to as many as four sources with user-supplied HDMI cables (such as P568- or P569-Series). Then, connect the pigtail receivers’ built-in HDMI plugs to the displays. Finally, connect the switch to the receivers with user-supplied Cat6 patch cable (such as N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-4X4-BH4PH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Ports & interfaces
Video ports quantity 4
Video port type HDMI
Video out 2x RJ-45
HDMI version 2.0
Ethernet LAN (RJ-45) ports 2
DC-in jack Yes
Consumer Electronics Control (CEC) support Yes
Cable types supported Cat6, Cat5, Cat5e
Features
Rack mounting Yes
LED indicators Yes
Housing material Metal
Maximum refresh rate 60 Hz
Colour depth 36 bit
Maximum resolution 3840 x 2160 pixels
Plug and Play Yes
Product colour Black
Certification CCC; GS; LPS; PSE; RCM; TUV; UL; WEEE; cUL, RoHS; CE (Europe); REACH; FCC (USA)
3D Yes
HD type 4K Ultra HD
Country of origin Taiwan
Network
Cable types supported Cat6, Cat5, Cat5e
Power
Input current 1.5 A
Output current 1 A
Output voltage 24 V
AC input frequency 50 - 60 Hz
AC input voltage 100-240 V
Weight & dimensions
Width 17.3" (440 mm)
Depth 7.13" (181 mm)
Height 1.73" (44 mm)
Package weight 9.26 lbs (4.2 kg)
Package type Box
Package depth 6.46" (164.1 mm)
Package width 11.4" (290.1 mm)
Package height 2.17" (55.1 mm)
Packaging data
Package weight 9.26 lbs (4.2 kg)
Package type Box
Package depth 6.46" (164.1 mm)
Package width 11.4" (290.1 mm)
Package height 2.17" (55.1 mm)
Quantity per pack 1 pc(s)
Packaging content
Manual Yes
Cables included DC
Package type Box
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 50 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 85%
Sustainability
Sustainability compliance Yes
Sustainability certificates UL ECOLOGO
Video
Maximum refresh rate 60 Hz
Colour depth 36 bit
Maximum resolution 3840 x 2160 pixels
3D Yes
Colour
Product colour Black
Certificates
Certification CCC; GS; LPS; PSE; RCM; TUV; UL; WEEE; cUL, RoHS; CE (Europe); REACH; FCC (USA)
Indication
LED indicators Yes
Technical details
Rack mounting Yes
Housing material Metal
Package width 11.4" (290.1 mm)
Package height 2.17" (55.1 mm)
Video out 2x RJ-45
Plug and Play Yes
HDMI version 2.0
Sustainability compliance Yes
Sustainability certificates UL ECOLOGO
Compliance certificates CCC, CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE
Logistics data
Quantity per pack 1 pc(s)
Master (outer) case width 12.2" (310.9 mm)
Master (outer) case length 20.4" (517.9 mm)
Master (outer) case height 7.01" (178.1 mm)
Master (outer) case gross weight 9.26 lbs (4.2 kg)
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 8525.50.3035
Country of origin Taiwan
