Tripp Lite B127A-1A1-BHFH AV extender AV transmitter & receiver Black, White

EatonSKU: B127A-1A1-BHFH

Price:
Sale price$167.34

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

HDMI over Cat6 Extender Kit, Box Transmitter/Wall Plate Receiver, 4K 60 Hz, 4:4:4, IR, PoC, HDR, HDCP 2.2, 230 ft., TAA

Key Features

  • Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
  • Transmitter's local port shows you the 4K image being displayed at the other end
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls

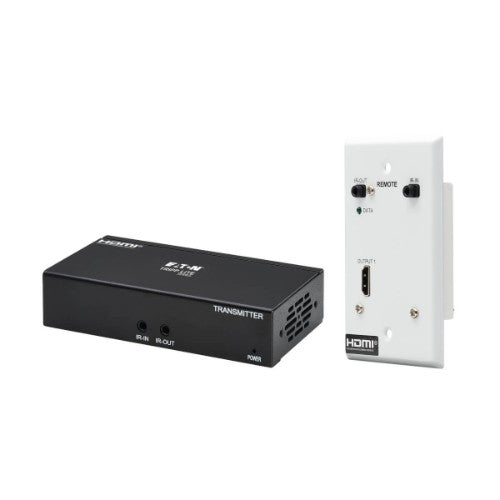

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The metal transmitter box and the single-gang metal wall plate receiver with metal back cover blend perfectly into the room décor.

Extends a 4K A/V Transmission up to 230 ft....or Even Farther
The B127A-1A1-BHFH extends 4K signals from an HDMI source device to an HDMI display up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. Bi-directional IR remote control lets you operate the source from the display end of the installation. By adding a B127A-010-H HDMI repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-1A1-BHFH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with 7.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization automatically fine-tunes the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
After you connect the included external power supply to the transmitter, Power over Cable (PoC) technology powers the receiver over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to install the receiver where best needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use

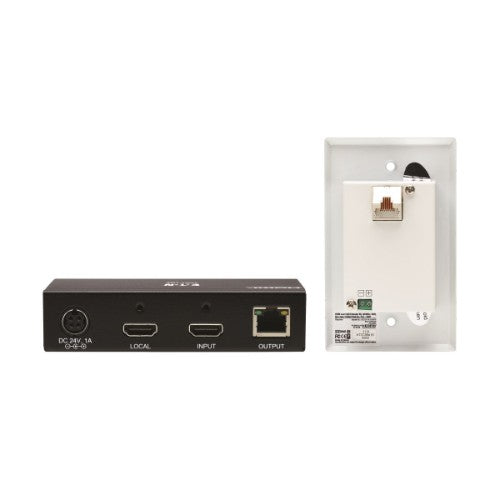

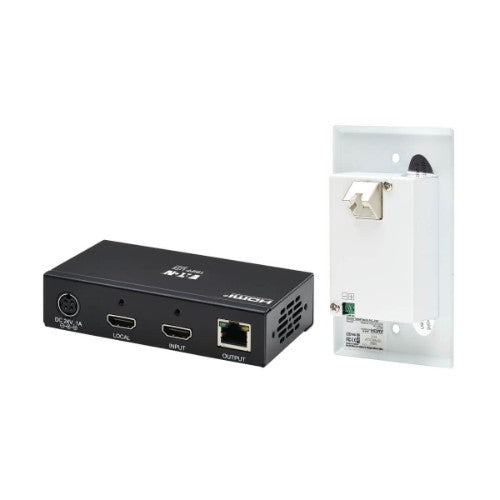

The included transmitter and receiver units work right out of the box with no software required. Connect the transmitter to the source with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the receiver to the display with another user-supplied HDMI cable. Finally, connect the two units with user-supplied Cat6 patch cable (such as N202-Series). Mounting hardware is included for both units.

TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BHFH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Features
Material Metal
HDCP Yes
Colour depth 36 bit
Audio output channels 7.1 channels
Wall mountable Yes
Rack mounting Yes
Plug and Play Yes
Consumer Electronics Control (CEC) support Yes
3D Yes
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5, Cat5e, Cat6, HDMI
Maximum transfer distance 2755.9" (70 m)
Audio system Multichannel
Supported video modes 720p, 1080p, 2160p
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
LED indicators Yes
Cable length 54.3" (1.38 m)
Product colour Black, White
Extended display identification data (EDID) Yes
HDCP version 1.4/2.2
Ports & interfaces
Remote (IR) output 2
Remote (IR) input 2
Ethernet LAN Yes
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 1
Number of HDMI outputs 2
DC-in jack Yes
Connectivity technology Wired
Power
Input current 0.6 A
Output current 1 A
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Operating voltage 24 V
Operational conditions
Storage relative humidity (H-H) 0 - 85%
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -15 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Receiver weight 22.9 oz (650 g)
Transmitter weight 22.9 oz (650 g)
Transmitter dimensions (WxDxH) 4.53 x 2.46 x 1.06" (115 x 62.4 x 27 mm)
Receiver dimensions (WxDxH) 2.76 x 1.33 x 4.53" (70 x 33.8 x 115 mm)
Packaging data
Package type Box
Package depth 6.46" (164.1 mm)
Package width 13.9" (352 mm)
Package height 2.17" (55.1 mm)
Package weight 2.27 lbs (1.03 kg)
Quantity per pack 1 pc(s)

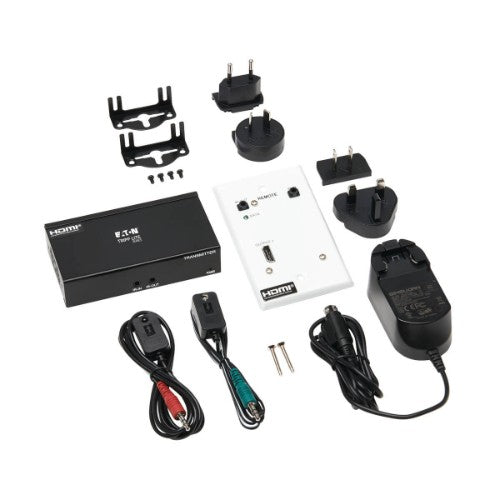

Packaging content
Mounting kit Yes
Cables included IR
AC adapter included Yes
Manual Yes
Included power plug types AU, EU, NA, UK
Technical details
Country of origin Taiwan
Sustainability compliance Yes
Compliance certificates CE, REACH, RoHS
Logistics data
Master (outer) case width 23.1" (586 mm)
Master (outer) case length 14.8" (374.9 mm)
Master (outer) case height 7.76" (197.1 mm)
Master (outer) case gross weight 24.5 lbs (11.1 kg)
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332264005
