Tripp Lite B127A-1A1-BDBH AV extender AV transmitter & receiver Black

EatonSKU: B127A-1A1-BDBH

Price:
Sale price$241.34

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

DisplayPort to HDMI over Cat6 Extender Kit, KVM Support, 4K 60Hz, 4:4:4, USB, PoC, HDCP 2.2, 230 ft., TAA

Key Features

  • Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video
  • Extend touch screen ability for Interactive Flat Panel Displays
  • Power over Cable (PoC) technology provides power to either end via Cat6 cable
  • Transmitter's local port shows you the 4K image being displayed at the other end
  • DIP switch selection allows bi-directional IR or USB function for controlling the source
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

DisplayPort to HDMI Extender Kit Ideal for Digital Signage in Schools and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft.
The B127A-1A1-BDBH extends 4K signals from a DisplayPort source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
The B127A-1A1-BDBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
After you connect the included external power supply to either the transmitter or receiver, Power over Cable (PoC) technology powers the opposite unit over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place one unit where needed without worrying about finding a nearby AC outlet.
Dip Switch Extends Your Choice of Either USB or IR.
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to either control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.

Plug-and-Play Operation for Quick Setup and Immediate Use

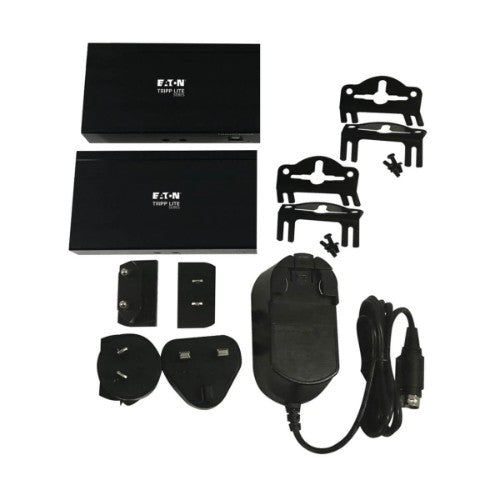

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing both units on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied DisplayPort cable (such as P580-Series). Then connect the receiver to the display with a user-supplied HDMI cable (such as P568- or P569-Series). Finally, connect the two units with user-supplied Cat6 patch cable (such as N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-1A1-BDBH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Features
Material Metal
HDCP Yes
Colour depth 36 bit
Audio output channels 7.1 channels
Wall mountable Yes
Rack mounting Yes
Consumer Electronics Control (CEC) support Yes
3D Yes
Maximum refresh rate 60 Hz
Certification TAA
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat5, Cat5e, Cat6, HDMI
Maximum transfer distance 2759.8" (70.1 m)
Audio system Multichannel
LED indicators Yes
Cable length 54.3" (1.38 m)
Product colour Black
Extended display identification data (EDID) Yes
HDCP version 1.4/2.2
Ports & interfaces
Remote (IR) output 2
Remote (IR) input 2
USB ports quantity 3
DisplayPorts in 1
USB version 1.1
USB connector type Micro-USB, USB Type-A
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 1
Number of HDMI outputs 1
HDMI version 2.0
DC-in jack Yes
Connectivity technology Wired
Digital audio optical out 1
Power
Input current 0.6 A
Output current 1 A
AC input voltage 100 - 240 V
AC input frequency 50-60 Hz
Operating voltage 24 V
Operational conditions
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -15 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Receiver weight 16 oz (453.6 g)
Transmitter weight 16 oz (453.6 g)
Transmitter dimensions (WxDxH) 4.53 x 2.46 x 1.06" (115 x 62.4 x 27 mm)
Receiver dimensions (WxDxH) 4.53 x 2.46 x 1.06" (115 x 62.4 x 27 mm)
Packaging data
Package type Box
Package depth 6.46" (164.1 mm)
Package width 10.2" (260.1 mm)
Package height 2.17" (55.1 mm)
Package weight 23.3 oz (660 g)
Packaging content
Mounting kit Yes
AC adapter included Yes
Manual Yes
Included power plug types AU, EU, NA, UK
Technical details
Country of origin Taiwan
Sustainability compliance Yes
Compliance certificates CE, REACH, RoHS
Logistics data
Master (outer) case width 22.6" (573 mm)
Master (outer) case length 10.7" (273 mm)
Master (outer) case height 6.89" (175 mm)
Master (outer) case gross weight 15.2 lbs (6.9 kg)
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332258653
