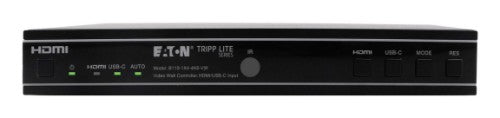

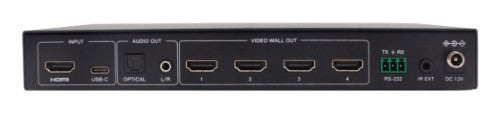

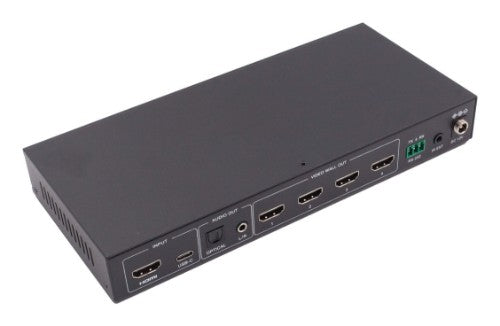

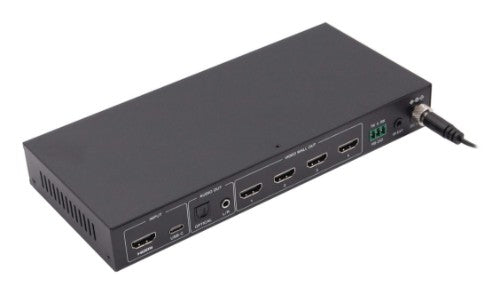

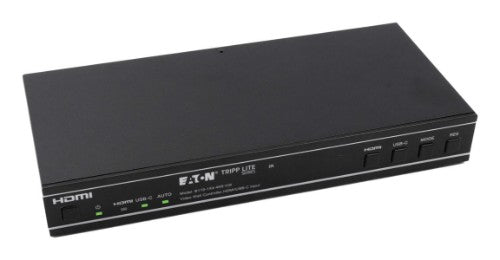

Tripp Lite B119-1X4-4K6-VW video wall processor Black

EatonSKU: B119-1X4-4K6-VW

Price:
Sale price$408.68

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

Video Wall Controller, IR remote, 3-pin RS-232 Phoenix connector, 3840 x 2160, Black

Key Features

  • Captures, converts, routes and distributes 4K audio/video to a 4K video wall
  • Supports HDMI and USB-C input with UHD resolutions up to 4K @ 60 Hz (4:4:4)
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Allows flexible control via front-panel buttons, IR remote or RS-232 commands
  • Plug-and-play operation with no software required for easy, immediate installation

Description

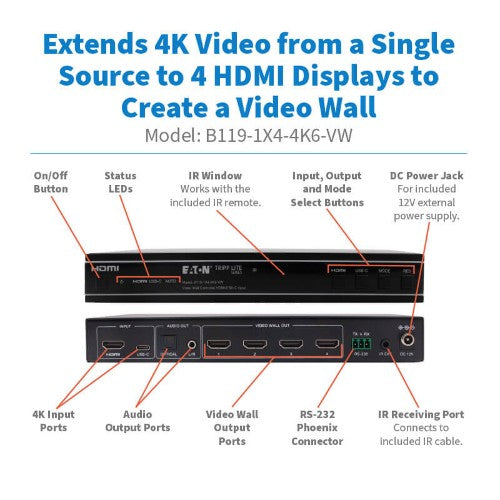

Extends 4K video from one HDMI or USB-C source to 4 HDMI displays in multiple configurations.

Extends 4K Video from a Single Source to Create 8 Different Video Wall Configurations
This Video Wall Controller is designed to capture, convert, route and distribute all video signal formats to a video wall. It features HDMI and USB-C input with resolution up to 4K at 60 Hz and four HDMI outputs to create eight video wall splicing modes to be stretched either horizontally or vertically: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4 and 2x2. You can set display modes via front-panel buttons, the included IR remote or RS-232 commands. Note: In video wall mode (except 1x1), only the screens that are selected to perform video wall splicing will display images. Their bezel can be adjusted.

Transmits 4K Video with HDR and 4:4:4 Color
The B119-1X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Plug-and-Play Operation for Quick Setup and Immediate Use

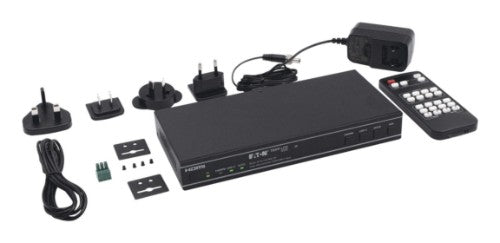

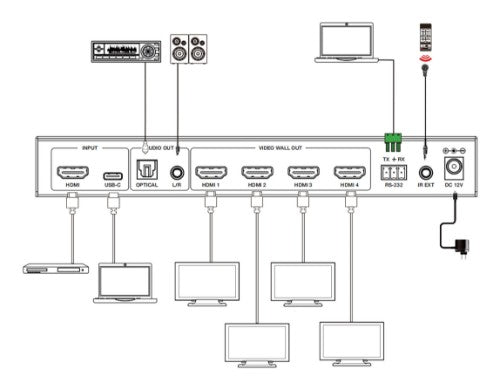

The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect a 4K source device to either the HDMI or USB-C input and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.

Specifications

Design
Product colour Black
Housing material Metal
Control type Buttons
Features
Housing material Metal
Power
Input voltage 100-240 V
Input frequency 50/60 Hz
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 90%
Weight & dimensions
Weight 20.8 oz (590 g)
Package width 7.09" (180 mm)
Package depth 11" (280 mm)
Package height 3.15" (80 mm)
Package weight 2.43 lbs (1.1 kg)
