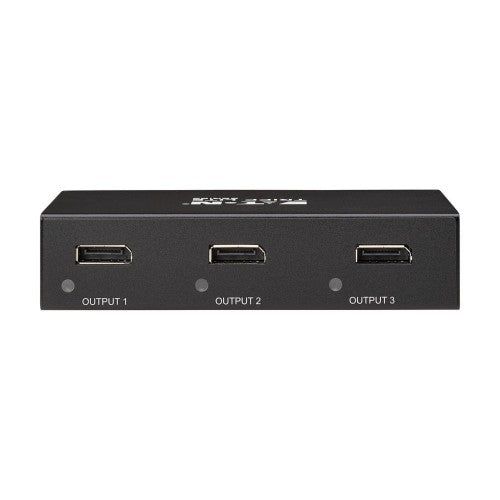

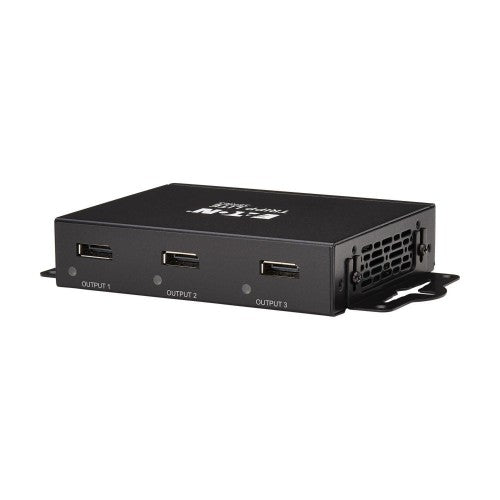

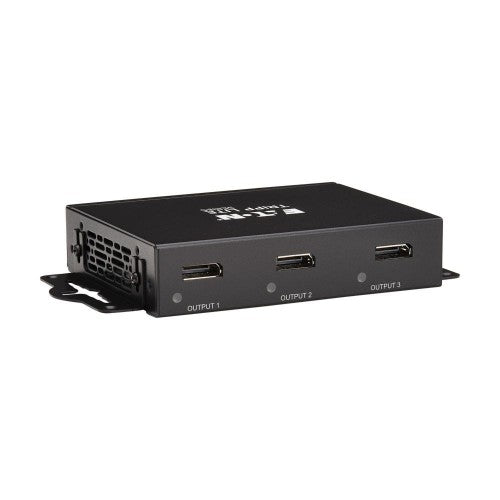

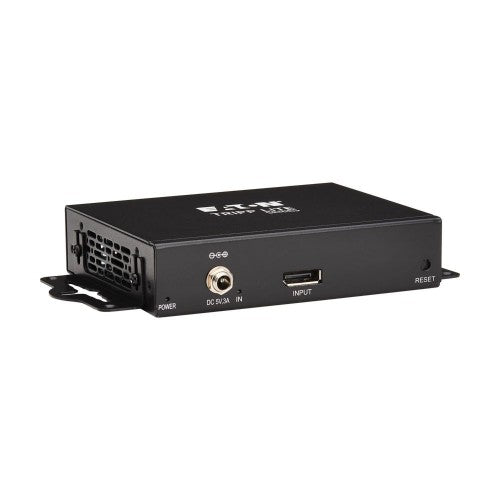

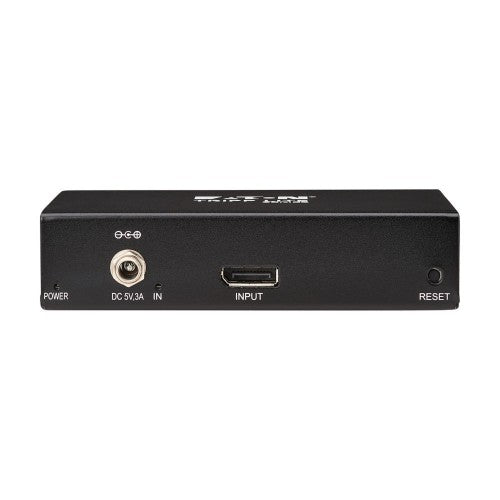

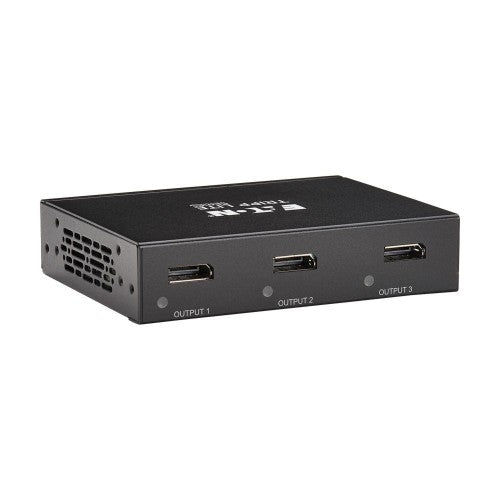

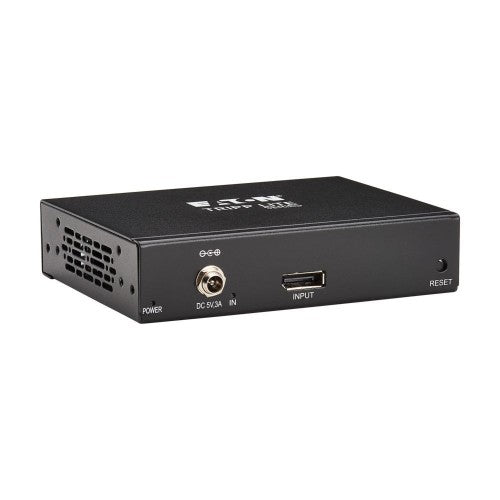

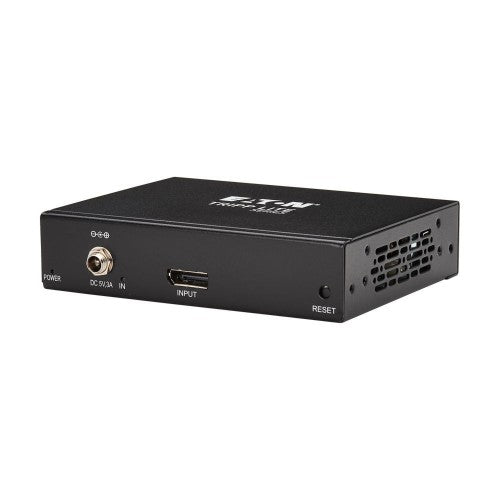

Eaton B156-003-8K video splitter DisplayPort

EatonSKU: B156-003-8K

Price:
Sale price$183.41

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

3-Port DisplayPort/USB-C to DisplayPort Multi-Monitor Splitter, MST Hub, 8K 60Hz, DP1.4, TAA

Key Features

  • Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) in video wall mode
  • Ready for plug-and-play operation with no additional software or drivers needed
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • Complies with DisplayPort 1.4 standards and backward compatible with DP 1.2
  • Transmits in mirrored, extended and video wall modes for advanced digital signage

Description

Eaton Tripp Lite Series DisplayPort to DisplayPort 3-Port Multi-Monitor Splitter 8K/4K 60Hz DP 1.4 TAA

Specifications

Ports & interfaces
Video ports quantity 3
Video port type DisplayPort
Video out DisplayPort
Connector contacts plating Nickel/Gold
Cable length 59.8" (1.52 m)
Features
LED indicators Signal, Power
Maximum refresh rate 60 Hz
Colour depth 12 bit
Maximum resolution 7680 x 2160 pixels
HDCP Yes
Plug and Play Yes
Product colour Black
Connector contacts plating Nickel/Gold
Cable length 59.8" (1.52 m)
HDCP version 1.4
High Dynamic Range (HDR) supported Yes
Power
Power consumption (typical) 26.5 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Weight & dimensions
Weight 3.17 oz (90 g)
Width 5.04" (128 mm)
Depth 3.94" (100 mm)
Height 1.17" (29.7 mm)
Packaging content
AC adapter included Yes
Packaging content External power supply (Input: 100–240V, 50/60 Hz, 0.6A; Output: 5V 3A) with 4.5 ft. cord B156-003-8K 3-Port DisplayPort to DisplayPort Multi-Monitor Splitter Installation guide (4) International plug adapters (North America, Europe, U.K., Australia) Mounting hardware
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 50 °C
Operating relative humidity (H-H) 0 - 85%
Video
Maximum refresh rate 60 Hz
Colour depth 12 bit
Maximum resolution 7680 x 2160 pixels
HDCP Yes
Colour
Product colour Black
Indication
LED indicators Signal, Power
Technical details
Video out DisplayPort
Plug and Play Yes
Compliance certificates WEEE, CE, Federal Communications Commission (FCC), UKCA, RoHS, TAA
