Eaton B127F-1A1-MMDDA AV extender AV transmitter & receiver Black

EatonSKU: B127F-1A1-MMDDA

Price:
Sale price$1,008.17

We exclusively offer FedEx Ground Shipping for all your purchases with Startechtel.com. We promise speedy delivery, offering FedEx shipping, and getting your orders out the door as fast as possible (usually same day). We primarily ship using FedEx Ground service, however we reserve the right to ship any other standard (or other) method. Business-day standard shipping orders placed by 2:00 pm PST usually ship the same day.

Description

DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, RS-232, IR, Multimode LC, 985 ft. (300 m), TAA

Key Features

  • Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with High Dynamic Range (HDR)
  • Supports uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio
  • Extends the touchscreen ability of interactive flat-panel monitors
  • Local HDMI port connects displays with different resolutions without affecting 4K signal
  • Plug-and-play operation with no software required for easy, immediate installation

Description

DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional AV cables allow. The B127F-1A1-MMDDA extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling.

Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-MMDDA supports Ultra HD 4K video resolutions up to 3840 x 2160 at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

DIP Switches Extend Your Choice of USB, IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.

Plug-and-Play Operation for Quick Setup and Immediate Use

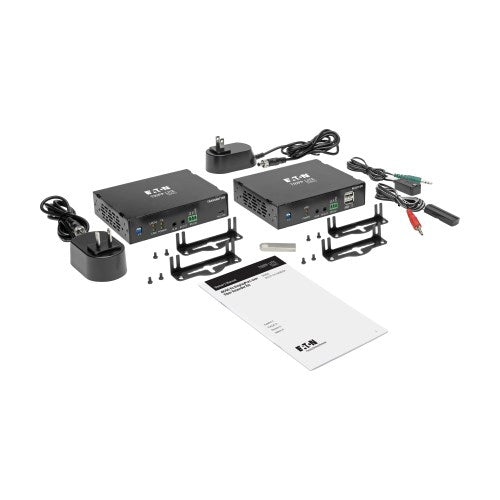

The included transmitter and receiver work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex multimode LC fiber cable (N820-Series). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the remote receiver. The local port allows connection of displays with lower resolutions, such as 720p and 1080p, without affecting the 4K 60 Hz signal transmission to the receiver.

TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-MMDDA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Features
Material Metal
HDCP Yes
Wall mountable Yes
Rack mounting Yes
Wavelengths supported 850 nm
Maximum refresh rate 60 Hz
Certification CE, FCC, REACH
Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Fiber
Maximum transfer distance 11811" (300 m)
LED indicators Yes
Product colour Black
Fiber optic wavelengths supported 850 nm
Fiber optic connector LC
Fiber mode structure Multi-mode
Extended display identification data (EDID) Yes
HDCP version 1.4/2.2
Ports & interfaces
3.5 mm (1/8-inch) out Yes
3.5 mm (1/8-inch) in Yes
USB ports quantity 3
DisplayPorts out 1
DisplayPorts in 1
USB connector type Micro-USB B, USB Type-A
HDMI in 1
Connectivity technology Wired
Fiber optic connector LC
Power
Input current 0.35 A
Output current 2 A
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
External power adapter Yes
Operating voltage 5 V
Operational conditions
Storage relative humidity (H-H) 0 - 85%
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -15 - 50 °C
Operating temperature (T-T) 0 - 40 °C
Packaging data
Package type Box
Package depth 5.91" (150.1 mm)
Package width 13.5" (343.9 mm)
Package height 3.27" (83.1 mm)
Package weight 3.06 lbs (1.39 kg)
Packaging content
Cables included AC
AC adapter included Yes
Manual Yes
Included power plug types AU, EU, NA, UK
Technical details
Country of origin Taiwan
Compliance certificates RoHS
Logistics data
Master (outer) case width 17.3" (438.9 mm)
Master (outer) case length 14.3" (363 mm)
Master (outer) case height 12.8" (324.1 mm)
Master (outer) case gross weight 31.5 lbs (14.3 kg)
Products per master (outer) case 10 pc(s)
Master (outer) case GTIN (EAN/UPC) 10037332239164
