Description

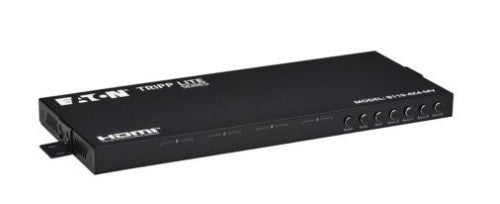

HDMI 4x4 Matrix Switch with Quad Multiviewer - 4K 30 Hz, 4:4:4
This compact unit splits a video signal for display on multiple monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, lecture halls, trade shows, retail settings and other digital signage applications, this splitter supports video resolutions up to {MaxResolution}. It is compatible with all major operating systems. The plug-and-play splitter comes ready to connect right out of the package and requires no additional software.
Key Features
- Supports 4K @ 30 Hz video with 4:4:4 and 4:2:2 color formats up to 12-bit depth
- Seamless switching on Output A with no black screen or delay
- Extracts audio via stereo or TOSLINK; supports LPCM, Dolby Digital and DTS
- Controlled via front panel, IR remote or RS-232; plug-and-play setup with no software
- Route up to 4 HDMI inputs to 4 HDMI outputs or displays all inputs on one screen
Description
Transmits Video to Multiple Displays SimultaneouslyThis compact unit splits a video signal for display on multiple monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, lecture halls, trade shows, retail settings and other digital signage applications, this splitter supports video resolutions up to {MaxResolution}. It is compatible with all major operating systems. The plug-and-play splitter comes ready to connect right out of the package and requires no additional software.
Specifications
| Features | |
|---|---|
| Product type | AV matrix switcher |
| HDCP | Yes |
| No Signal Latency | Yes |
| No video compression | Yes |
| Firmware upgradeable | Yes |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
| Data transfer rate | 10.2 Gbit/s |
| Maximum pixel clock | 297 MHz |
| Maximum TMDS clock | 297 MHz |
| Crosspoint size | 4 x 4 |
| Bandwidth | 10.2 Gbit/s |
| EDID emulation (TX) | Yes |
| Number of layers per screen | 4 |
| Maximum resolution | 3840 x 2160 pixels |
| Audio channels | 2 |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Audio formats supported | LPCM, AC3, DTS |
| Supported chroma subsampling | 4:2:2, 4:4:4 |
| Design | |
| Housing material | Metal |
| Housing colour | Black |
| Control type | Buttons, Remote |
| Cooling type | Passive |
| LED indicators | Yes |
| Remote control included | Yes |
| Rubber feet | Yes |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| Digital audio optical out | 1 |
| USB ports quantity | 1 |
| RS-232 ports | 1 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| USB connector type | Micro-USB B |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Power | |
| Power consumption (max) | 10 W |
| Power supply location | External |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 0.4 A |
| Number of power supply units | 1 |
| Output power | 10 W |
| Output current | 2000 mA |
| Output voltage | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 34.12 BTU/h |
| Heat dissipation (max) | 34.12 BTU/h |
| Weight & dimensions | |
| Width | 4.33" (110 mm) |
| Depth | 10.6" (270 mm) |
| Height | 1.06" (27 mm) |
| Weight | 19 oz (540 g) |
| Packaging content | |
| Cables included | USB Type-A to Micro USB-B |
| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Screws included | Yes |
| IR receiver included | Yes |
