Description

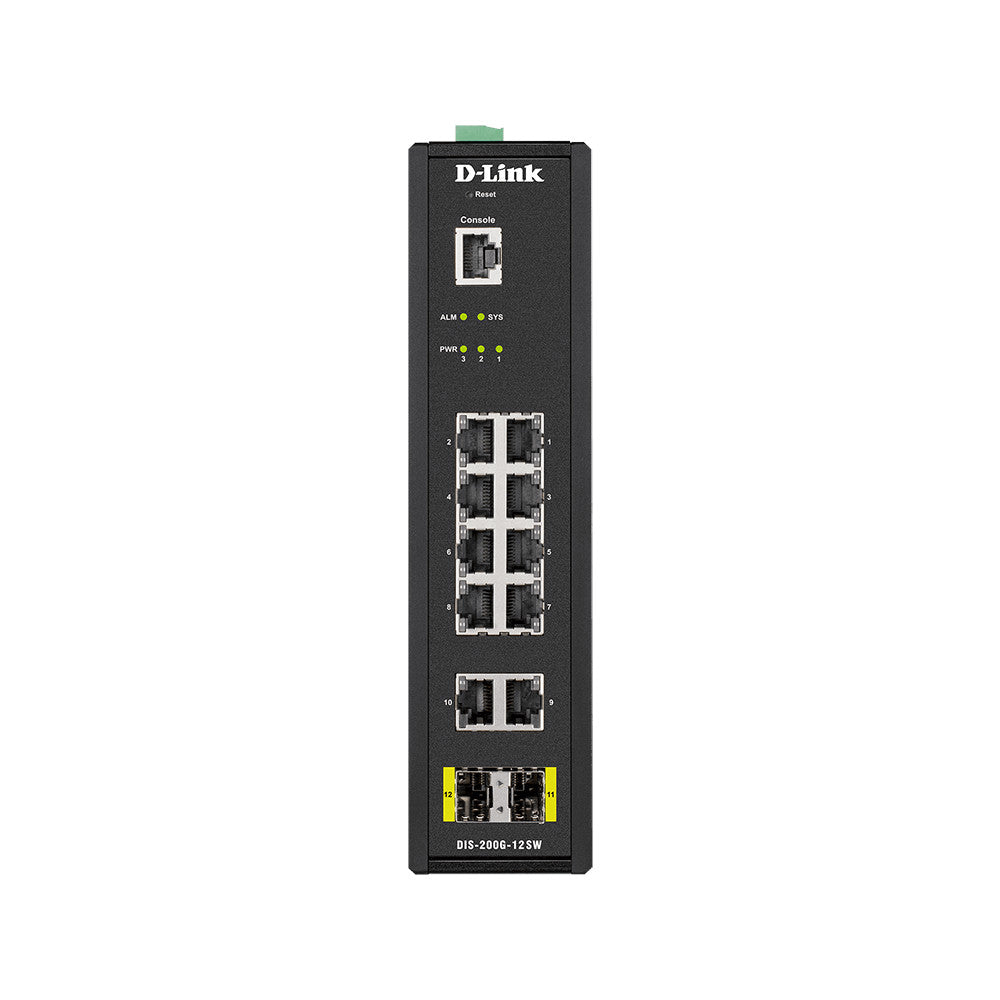

The DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 8 PoE-capable 10/100/1000BASE-T ports (PoE models), 2 10/100/1000BASE-T ports, and 2 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G Series furthermore integrates advanced management and security functions to provide a complete solution.
Flexible Availability
- Available in PoE and non-PoE models
- Industrial model variations with wider operating temperature ranges
Robust and High-Redundancy Design
- Fanless, passive cooling design
- High EMC endurance
- 6 kV surge protection on copper ports
- Ethernet Ring Protection Switching (ERPS)
- Dual power input for redundant power supplies
Specifications
	Hardware Version
	A1
	Number of Ports
	10x 10/100/1000BASE-T ports
	2 x SFP ports
	1 x RJ-45 Console port
	Port Functions
	IEEE 802.3 for Ethernet
	IEEE 802.3u for Fast Ethernet
	IEEE 802.3ab for Gigabit Ethernet
	IEEE 802.3z for Gigabit fiber
	IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW)
	IEEE 802.3az-compliant
	Media Interface Exchange
	Auto-MDI/MDIX adjustment for all twisted pair ports
	Performance
	Switching Capacity: 24 Gbps
	Maximum Forwarding Rate: 17.85 Mpps
	MAC Address Table Size: Up to 8K entries
	Transmission Method: Store-and-forward
	PoE
	PoE Standard: N/A
	PoE Capable Ports: N/A
	PoE Power Budget: N/A
	Diagnostic LEDs
	SYS
	ALM
	PWR1/2/3
	Link/Activity/Speed
	Power Input
	12 to 48 V DC terminal block dual input
	12 V DC 4-pin DIN single power input
	Power Consumptions
	Maximum: pending
	Standby: pending
	Alarm Relay
	1 A at 24 V
	Ventilation
	Fanless
	Environmental
	Operating Temperature: -40 to 75oC (-40 to 167oF)
	Storage Temperature
	-40-85oC (-40 to 185oF)
	Operating Humidity
	0% to 95% RH, non-condensing
	Storage Humidity
	0% to 95% RH, non-condensing
	Material
	IP30-rated metal casing
	Installation
	DIN rail/wall/rack mountable
	Certifications
	CE, FCC, BSMI
	Safety
	UL60950-1
	EMI
	CISPR 22, FCC Part 15B Class A
	EMS
	EN 61000-4-2 ESD
	EN 61000-4-3 RS
	EN 61000-4-4 EFT
	EN 61000-4-5
	EN 61000-4-6 CS
	EN 61000-4-8
	IEC Standards
	IEC 60068-2-27 Shock
	IEC 60068-2-32 Freefall
	IEC 60068-2-6 Vibration
	Item Dimension (L"xW"xH")
	14 x 9 x 3
	Weight
	5.51 lb
