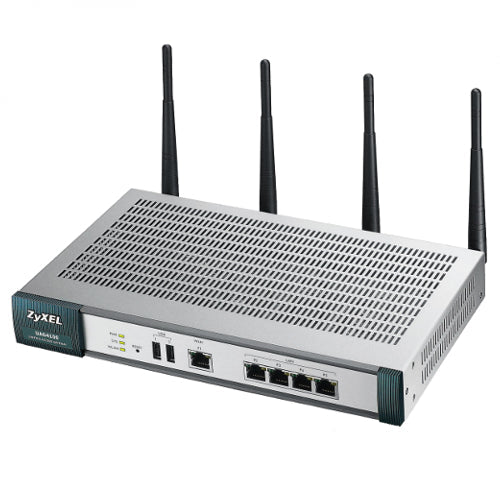

ZyXEL UAG4100 802.11n Hotspot Service Gateway with 200 Concurrent Device Support

The ZyXEL UAG4100 Unified Access Gateway is a next-generation, all-in-one wireless hotspot/access gateway designed to fulfill the hospitality challenges of both today and tomorrow. In addition to account management, billing, and data retention capabilities, the UAG4100 offers premium features-like 802.11 a/b/g/n dual-radio Wi-Fi and a built-in WLAN controller-to deliver better scalability, capacity, and performance to fulfill tomorrow's guest access demands. The built-in WLAN controller can manage up to 16 APs, which makes the UAG4100 ideal for multi-room network deployments in smaller accommodation facilities like small hotels, hostels, or B&Bs (bread and breakfast). Used with the SP350E ticket printer, on the other hand, the UAG4100 is the perfect solution for single-location Wi-Fi hotspot deployments in hotel lobbies, restaurants, or cafés.

Key Features:

• Mfr. Part #: UAG4100
• EEE 802.11 a/b/g/n dual-radio (2.4 GHz and 5 GHz) design
• Supports 200 concurrent logins by default and up to 300 via license upgrade (UAG4100)
• Integrated account generator, Web-based authentication portal and billing system
• Supports external RADIUS servers
• Per account bandwidth management
• SP350E Service Gateway Printer enables oneclick account and billing generation
• Built-in WLAN controller
• Facilitates compliance with data retention regulations
• Broadband Transmission Technology: Ethernet
• Wireless LAN Standard: IEEE 802.11n
• ISM Band: Yes
• UNII Band: Yes
• ISM Maximum Frequency: 2.40 GHz
• UNII Maximum Frequency: 5 GHz
• Total Number of Antennas: 4
• Wireless Transmission Speed: 190 Mbit/s
• Wireless Security: 64/128-bit WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, AES, TKIP
• Number of Network (RJ-45) Ports: 4
• Network (RJ-11): No
• VGA: No
• Serial: No
• USB: Yes
• Powerline: No
• PoE (RJ-45) Port: No
• Management Port: No
• Number of Broadband (RJ-45) Ports: 1
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T
• VPN Supported: Yes
• Management: VLAN, DHCP, Web-based Management, SNMP v2c (MIB-II), Command Line Interface (CLI), Syslog
• Security Features: NAT, PAT, Stateful Packet Inspection Firewall, IP Pass-Through, RADIUS
• Input Voltage: 12 V DC
• Power Source: AC Adapter
