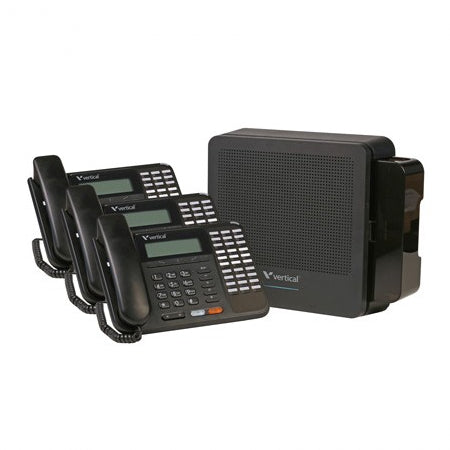

Vertical Vodavi VS-5000B-330B Summit 4x8 KSU with Voicemail and Three 30-Button Phones

The versatile Vertical Summit™ platform includes advanced VoIP technology that supports low cost SIP trunking, on/off-premise mobility, remote connectivity and multi-site networking to give your small business cost-effective options that add up to real-time communications and bottom-line benefits. The Vertical Summit includes all the basic features and functions of a sophisticated communications platform such as Transfer, Caller ID, MOH, etc., and delivers advanced functions including an integrated multi-level Auto Attendant and Voice Mail with both mobile and e-mail notification.

Key Features:

• Mfr. Part #: VS-5000-330B
• KSU configured 4CO x 8D x 4S
• 4-Port 16hr VM
• (3) Edge 9030-00 30-Button Digital Phones (Black)
• Vodavi Starplus Analog Phones: (2801) (2802) (2803)
• Additional Supported Endpoints: Door Box (3560-08)
• Integrated voice mail/auto attendant
• Voice Mail/Unified Messaging with .wav file attachment via email
• Automatic Call Distribution for call center support
• Wireless DECT option for in-building mobility solution
• Web-based Administration
• Automatic Call Distribution (ACD)
• Supports networking with Vertical SBX IP and MBX IP platforms

System Capacity:

• CO/Trunk Lines: Max. 60
• Station: Max. 140
• Attendants: 4
• Modem Channel: 1 (MODU)
• Power Fail Circuit: Max. 6 (1 per KSU, EKSU, CH204, CH408, CS416)
• VSF Device 1: Built-in AA/VM
• VSF Device 1: Built-in AA/VM w/MEMU
• VSF Device 2: (VVMU)
• Dect Phones: 48
• Built-in VoIP Channels: 8 (2 ch. by default, 2 ch. by license)
• VVMU VoIP Channels: 8 (by license)
• IP Stations and SIP Trunks: 32 Stations / 16 SIP Trunks
• SMDR Buffer: 5,000
• System Speed Dial / Zones (Groups): 3,000 numbers, 23 digits each / 10 zones
• Conference Groups - System: 40
• Conference Groups - Station: 20 per station

Interface and Standard:

• LAN Interface: 10/1000Base-T Ethernet (IEEE 802.3) 1 port, Half and Duplex (Auto-Negotiation)
• Serial Port (RS-232C): 1
• USB (2.0) Host port: 1
• VoIP Protocol: SIP and H.323 Revision 2
• Voice Compression: G.711/G.726/G.729/G.723.1
• Voice/Fax Switching: T.38
• Echo cancellation: G.165
