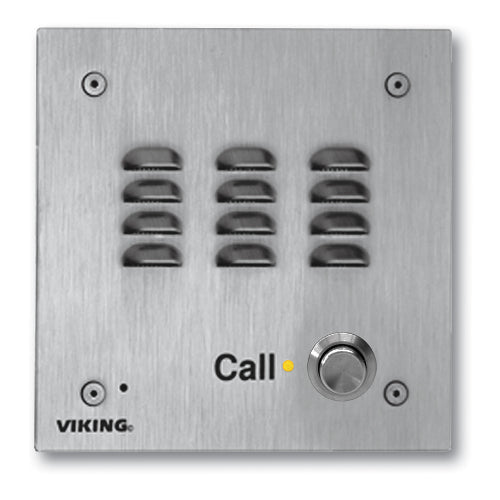

Viking W-3000 Weather Resistant Speaker Unit

Viking Weather Resistant Speaker Unit The W-3000 is a vandal resistant 5" x 5" brushed 14 Ga. stainless steel flush mount unit. LED indicates switch location and call progress. Can generate custom ringing. An electrical mounting box is supplied. 3 REN output.

Key Features:

• Vandal resistant, 14 gauge stainless steel faceplate
• Heavy-duty metal push button and mounting gasket.
• Flush mount using the included rough-in box or surface mount using an optional VE-5x5 backbox
• Yellow call progress/ night light LED
• New high output speaker amplifier with volume adjustment POT
• Microphone volume adjustment POT
• 24 volt talk battery
• 20 Hz ring generator (3.0 REN ring load maximum)
• Selectable ring cadence (standard or 2 short rings)
• Selectable number of rings (2, 3, 10 or 30)
• Selectable "Push-to-Talk" feature for noisy environments
• Extended operating temperature range: -15°F to 130°F
• Compact 45° terminal strip for easy wiring
• W-3000-EWP has Enhanced Weather Protection
• One year warranty.
• Made in the USA.

Specifications:

• Power: 120V AC/13.5V AC 1.25A UL listed adapter provided
• Dimensions: 127 mm x 127 mm x 57.2 mm (5" x 5" x 2.25")
• Ringer Output: 20Hz 3.0 REN.
• Environmental: -26° C to 54° C (-15° F to 130° F) with 5% to 95% non-condensing humidity.
• Maximum Loop Length: 1.9 Km (6300 ft) - 24 AWG twisted pair.
• Maximum Power Run: 38.1 m (125 ft) - 24 AWG twisted pair.
• Connections: 4-pin screw terminal strip, W-3000-EWP: Gel filled butt connectors

Applications:

• Ideal for noisy locations in "Push-to-Talk" mode Commercial, industrial or residential door security
• Door or gate communication
• Truck stop/gas station fuel island communication
• Use with the C-1000B controller for single line residential systems or when the operation of door strikes or gate openers is necessary
