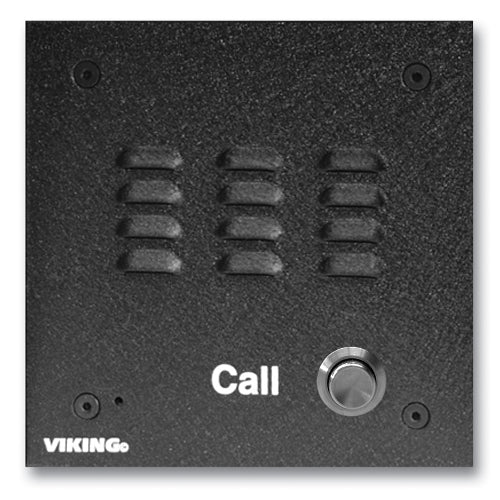

Viking W-1000 Weather Resistant Door Speaker

Viking Weather Resistant Door Speaker The W-1000 is a weather and vandal resistant flush mount unit. Comes with specially designed electrical box. Will not fit a standard double-gang electrical box.

Key Features:

• 24 volt talk battery
• 20 Hz ring generator.
• Microphone volume adjustment
• 45° terminal strip for easy wiring
• Adjustable number of rings (1-7) 3.0 REN
• One year warranty
• Made in the USA

Specifications:

• Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
• Dimensions: W-1000 - Overall - 127 x 127 x 57 mm (5.0" x 5.0" x 2.25"), Plastic Electrical Box - 102 x 102 x 57mm (4" x 4" x 2.25"), W-2000A - 140 x 115 x 38mm (5.5" x 4.5" x 1.5")
• Standard W-1000/W-2000A Environment: -26° C to 54° C (-15° F to 130° F) with 5% to 95% non-condensing humidity
• W-1000-EWP/W-2000A-EWP Environment: -26° C to 54° C (- 15° F to 130° F) with up to 100% condensing humidity
• Ringer Output: 3.0 REN maximum, 20Hz
• Ring Cadence: 1 second ON, 3 seconds OFF
• Maximum Loop Length: 1.9 Km (6300 ft) - 24 AWG twisted pair
• Maximum Power Run: 45.7 m (150 ft) - 24 AWG twisted pair
• Speaker Volume: Approximately 70db maximum @ 1m
• Standard Connections: (1) 4-position terminal block
• EWP Connections: (4) gel-filled butt connectors

Applications:

• Residential and Business door security
• Gate communication
• Communication with truck stop/gas station fuel islands
• Communication with delivery and employee entrances
• Use with Viking's C-1000B, RC-2A, or RC-3 to operate electronic door strikes
• Add the VE-5x5 to allow the W-1000 to be surface mounted or attached to a gooseneck
