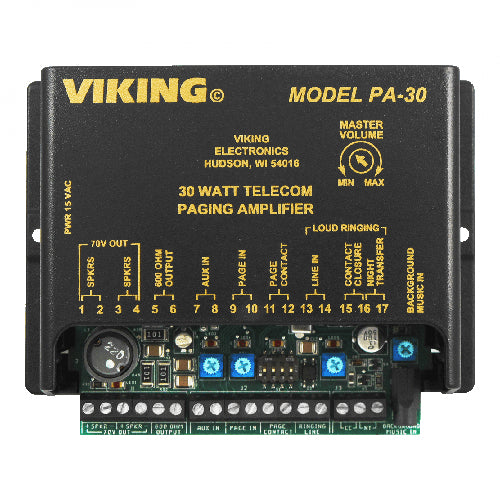

Viking PA-30 30-Watt Paging Amplifier

The PA-30 can directly drive up to thirty (30) 8 ohm paging speakers or fifty (50) 70 volt paging speakers. The PA-30 provides loud ringing and paging to electronic key systems, 1A2 Key systems, PABX's as well as No-KSU phones and multiline phones. Paging is accomplished by connecting the PA-30 to a paging port or unused telephone line input (trunk port) of nearly any phone system. The PA-30 will also generate adjustable loud ringing from a ringing analog line or from a dry contact closure. Either a loud electronic warble, or one of three other soft chime sounds may be selected. An external night transfer switch can be added to turn loud ringing on or off in night bell applications.

Applications

• Amplified loud paging
• Loud ringing
• Night bell
• Background music

Provides loud ringing or night bell

• Night transfer switch
• Page from an unused trunk port or paging port
• Can provide background music from an external source
• Use as a low cost stand alone power amplifier
• 600 Ohm output to drive additional amplifiers
• Use multiple units for more paging power

Specifications

• Power: 120V AC/15V AC 2.2A UL listed adapter provided
• Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75")
• Shipping Weight: 1.36 kg (3 lbs)
• Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity
• Paging Output: 30 watts - powers up to (30) 8 ohm speakers or (50) 70V speakers
• Talk Battery: 40V DC
• Connections: (1) 3.5mm (1/8") audio jack, (1) 6 position

More Information

• 30 Watts of paging power
• Drive up to (30) 8 ohm speakers
• 70V output can drive up to (50) 70V speakers
• Master volume control
• Separate volume controls for Auxiliary Input, Paging, Ringing Tones and Background Music
• Choose from up to 4 ringing sounds: Electronic warble (traditional loud ringer), Double gong (two identical gong tones), Quadruple chime (four descending chime tones), Door chime (ding-dong)
