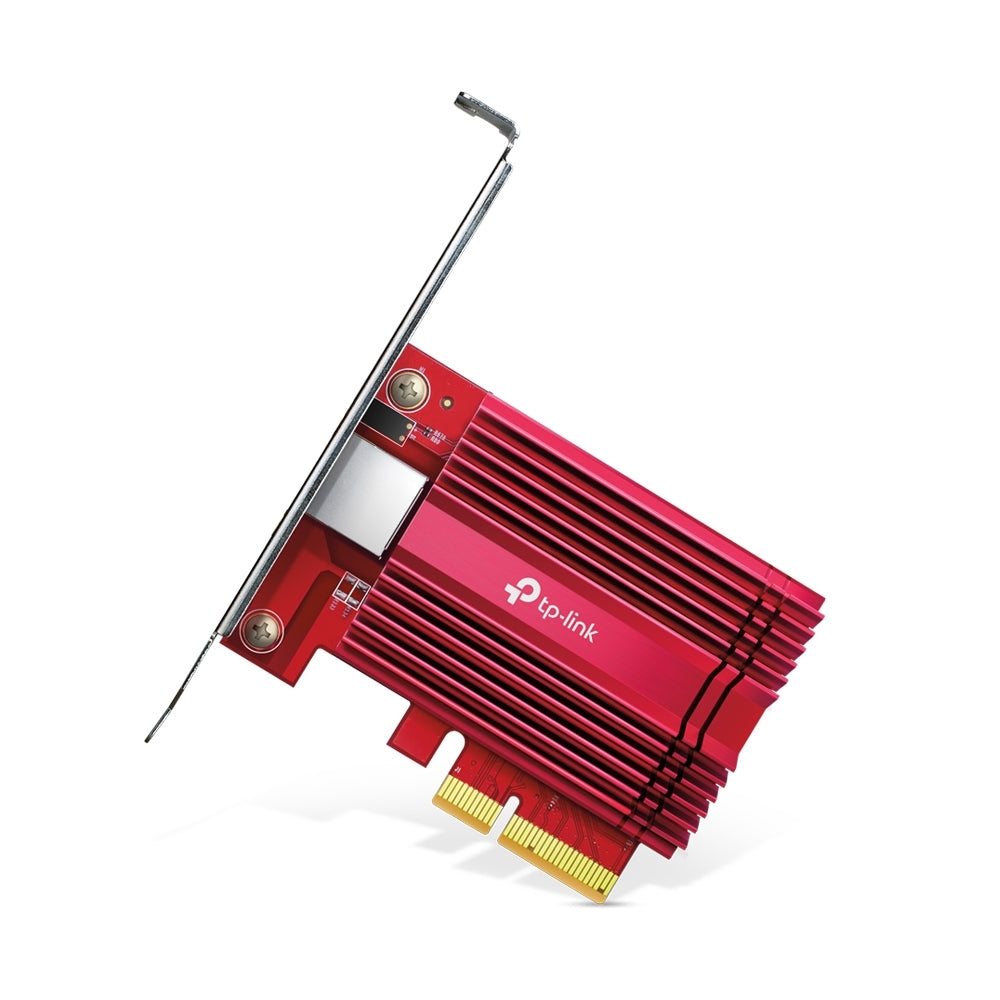

TP-Link TX401 10 Gigabit PCI Express Network Adapter (New)

• 10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.
• Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
• CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.
• Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
• Comprehensive System Support - Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.

Upgrade to 10G Networking
10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.

Play Never Ends with 10G
With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Specifications

HARDWARE FEATURES
Interface
1x PCI Express 3.0 x4, 1x RJ45 Gigabit/Megabit Port
Network Media
10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
LED
10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
Wireless Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz,
IEEE802.3an,
IEEE802.3az, IEEE 802.3x
Data Rates
100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode,
200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode
Flow Control
802.3x

OTHERS
Certification
FCC, CE, RoHS
Package Contents
10 Gigabit PCIe Network Adapter (TX401)
Standard/Low-Profile Brackets
Quick Installation Guide
Resource CD
1.5 m CAT6A Ethernet Cable
System Requirements
Windows 10/8.1/8/7, Windows Servers 2019/2016/
2012 R2, Linux
Environment
Operating Temperature: 0^oC-40^oC (32^oF -104^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing

Item Dimension (L"x W"x H")
8 x 6 x 2

Weight
1.00 LB
