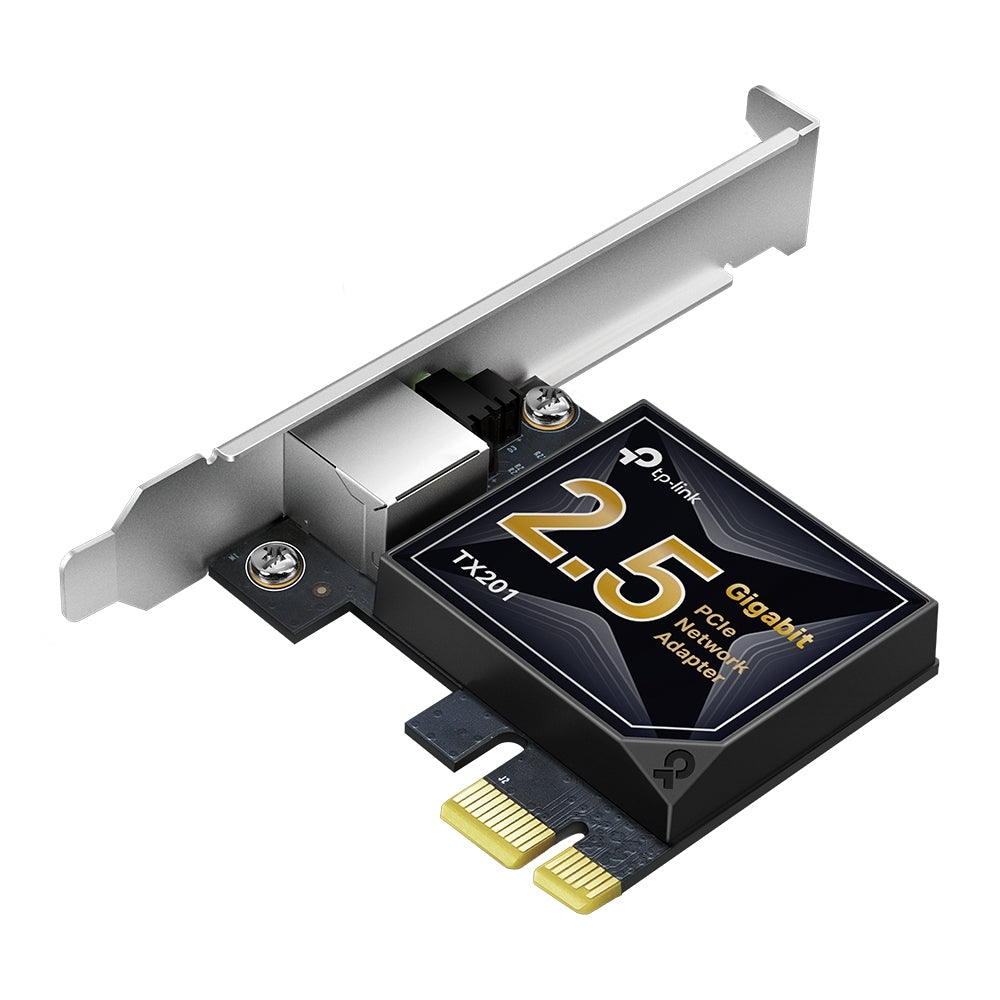

TP-Link TX201 2.5 Gigabit PCI Express Network Adapter (New)

2.5 Gigabit PCIe Network Adapter

• 2.5 Gbps Networking - 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.†
• Versatile Compatibility - With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
• Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
• Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.‡

†Maximum wired data throughput rates are the physical rates derived from IEEE Standard 802.3 specifications. Actual wired data throughput is not guaranteed and will vary as a result of environmental factors, Ethernet cable class, and computer performance.
‡To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x

Interface
1 PCI Express 2.1 x 1, 1 RJ45 Gigabit/Megabit Port

Network Media
2.5GBASE-T/1000BASE-T/100BASE-TX

Network Media
2.5GBASE-T/1000BASE-T/100BASE-TX

Data Rates
10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode,
20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode

Flow Control
802.3x

OTHERS
Certification
FCC, CE, RoHS

Package Contents
2.5 Gigabit PCIe Network Adapter (TX201)
Standard/Low-Profile Brackets
Quick Installation Guide
Resource CD

System Requirements
Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
8 x 6 x 2

Weight
1.00 lb
