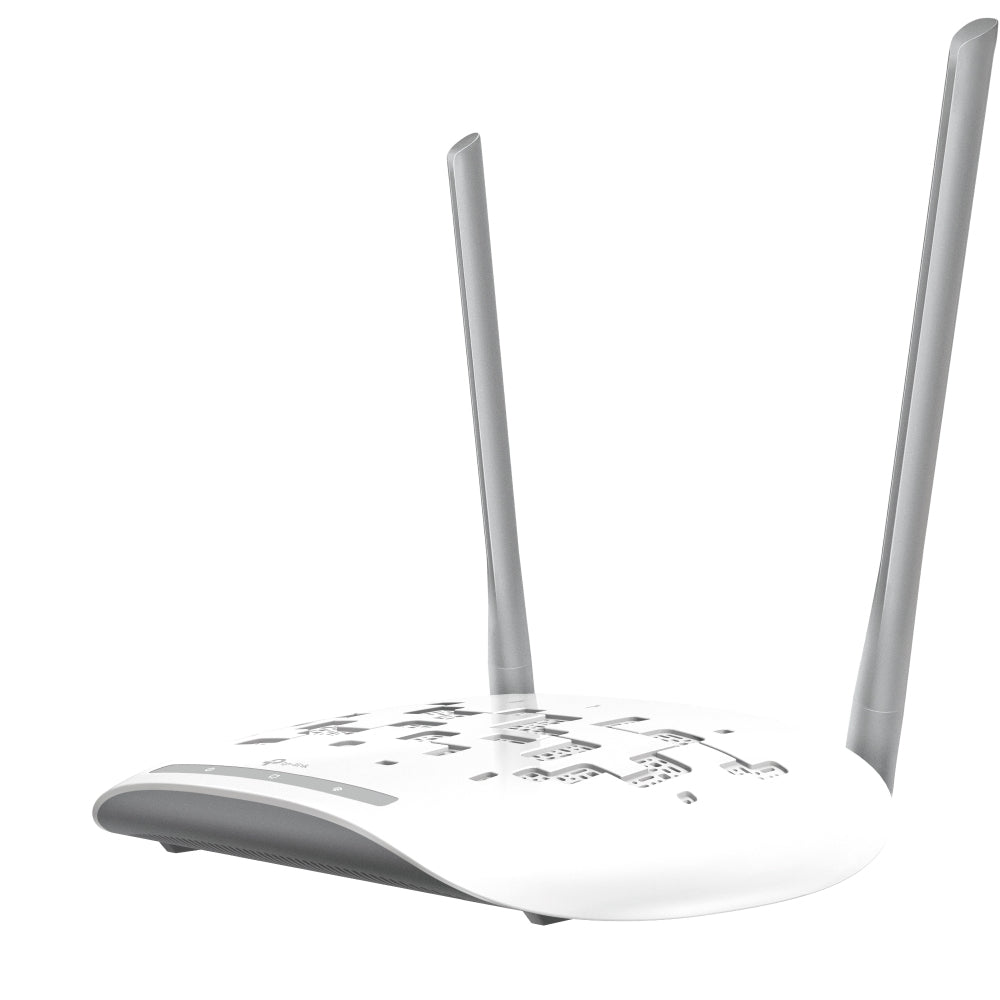

TP-Link TL-WA801N 300Mbps Wireless N Access Point 2.4GHz (New)

300Mbps Wireless N Access Point 2.4GHz

• 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
• Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
• Protects your home network with WPA2 encryption and makes quick connection with the push of a button
• Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

What This Product Does
The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N - Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes - Easy to Build WLAN
Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Specifications

HARDWARE FEATURES
Interface
1 x 10/100 M Ethernet Port(RJ45)
Support Passive PoE
Button
Power On/O Button, WPS Button, Reset Button
External Power Supply
9VDC / 0.6A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna Type
2 Fixed Omni-Directional Antennas

WIRELESS FEATURES
Frequency
2.4 GHz
Signal Rate
300 Mbps at 2.4 GHz
Reception Sensitivity
11g 6Mbps: -90dBm
11g 54Mbps: -77dBm
11n HT20 MC7: -73dBm
11n HT40 MC7: -70dBm
Transmit Power
is less than 20dBm
Wireless Modes
AP Mode
Multi-SSID Mode
Client Mode
Range Extender Mode
Wireless Functions
Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor
Wireless Security
WEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Quality of Service
WMM
Management
SNMP
Advanced Functions
Up to 30 meters Passive PoE is supported

OTHERS
Certification
FCC, RoHS
Package Contents
Wireless Access Point TL-WA801N
Power Adapter
Passive PoE Power Injector
RJ45 Ethernet Cable
Quick Installation Guide
Environment
Operating Temperature: 0^oC-40^oC (32^oF -104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF -158^oF)
Operating Humidity: 10%-90% RH
Storage Humidity: 5%-90% RH

Item Dimension (L"x W"x H")
13 x 9 x 3

Weight
3.00 LB
