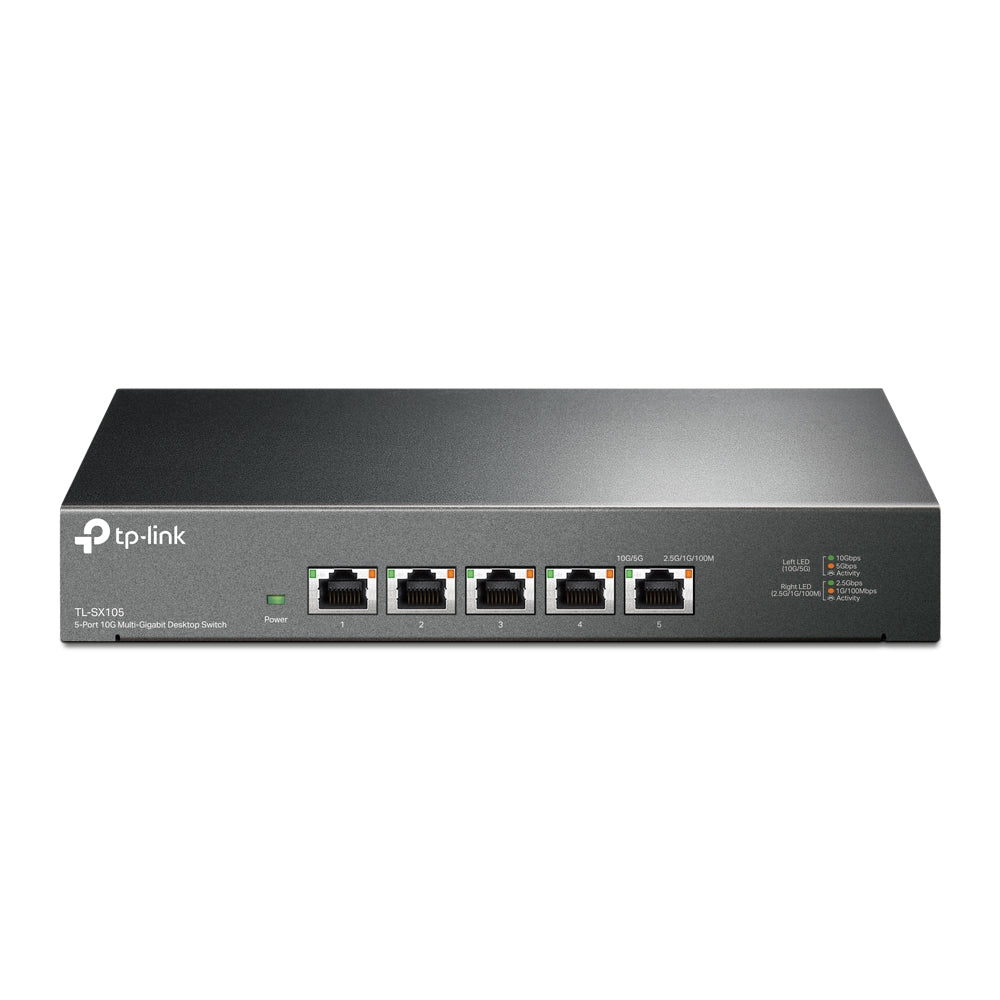

TP-Link TL-SX105 5-Port 10G Desktop Switch (New)

TL-SX105
5-Port 10G Desktop Switch

• Five 10 Gbps Ports - 5 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
• Lightning-Fast Connections - Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
• Ideal for Various Scenarios - Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.
• Optimal 5-Speed Connections - Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
• Silent Operation - The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
• Durable Metal Casing - Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.
• Plug and Play - Allows for easy deployment without the need for a technician.

Futuristic Networking with Lightning-Fast 10G Connections
5-Port 10G Desktop Switch
TL-SX105

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices
As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface
5x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 12 VDC / 2.0 A)
LED Indicator
System Power: 1
Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Max Power Consumption
21.4 W

PERFORMANCE
Switching Capacity
100 Gbps
Packet Forwarding Rate
74.4 Mpps
MAC Address Table
32 K
Packet Buffer Memory
2 Mb
Jumbo Frame
10 KB

SOFTWARE FEATURES
Advanced Features
802.3X Flow Control
802.1p/DSCP QoS
Transfer Method
Store and Forward

OTHERS
Certification
CE, FCC ,RoHS
Package Contents
5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105
Power Cord
Installation Guide
Rubber Feet
Environment
Operating Temperature: 040 ^oC (32104 ^oF)
Storage Temperature: -4070 ^oC (-40158 ^oF)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing

Item Dimension (L"xW"xH")
13 x 10 x 3

Weight
3.62 lbs
