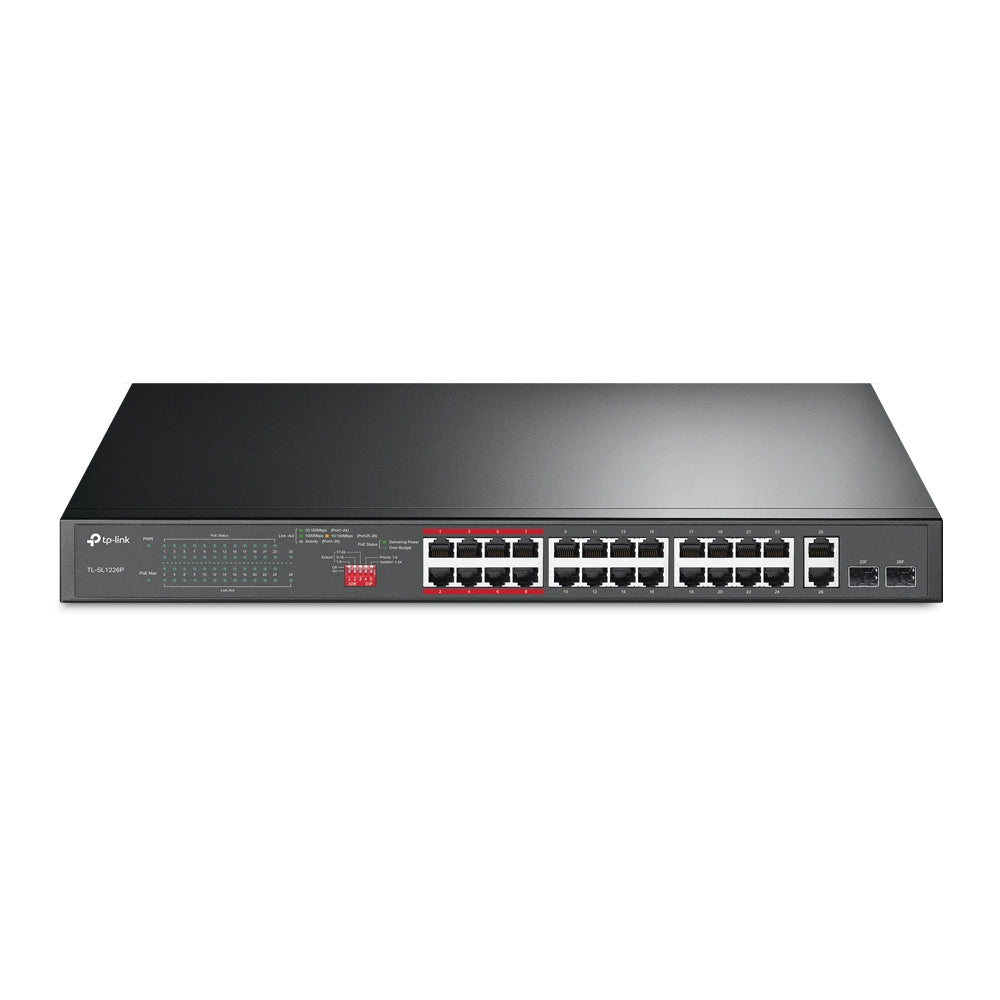

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch (New)

Professional High-Power 24-Port PoE+ Switch
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24 PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Dedicated Design for IP SurveillanceUp to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 mperfect for IP Camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. Actual transmission distance may vary due to cable quality.

Dedicated Design for IP SurveillanceHigher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Specifications

HARDWARE FEATURES
Interface
24 PoE+ 10/100 Mbps RJ45 Ports
2 10/100/1000 Mbps RJ45 Ports
2 Combo Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Omega STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240 VAC, 50/60 Hz
Packet Forwarding Rate
6.5472 Mpps
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port 1 Port 24
PoE Power Budget: 250 W
Mac Address Table
8 K
Jumbo Frame
10 KB
Switching Capacity
8.8 Gbps
Max Power Consumption
18.32 W (220/50 Hz. no PD connected)
294 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation
62.47 BTU/h (no PD connected)
1002.54 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
PD Detection
Intelligent Power Supply
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control
Transmission Method
Store-And-Forward

OTHERS
Certification
FCC
Package Contents
TL-SL1226P
Power Cable
Installation Guide
Two mounting brackets and the fittings
Environment
Operating Temperature: 050 ^oC (32122 ^oF)
Storage Temperature: -4070 ^oC (-40158 ^oF)
Operating Humidity: 1090% non-condensing
Storage Humidity: 590% non-condensing

Item Dimension (L"xW"xH")
21 x 10 x 4

Weight
7 lbs
