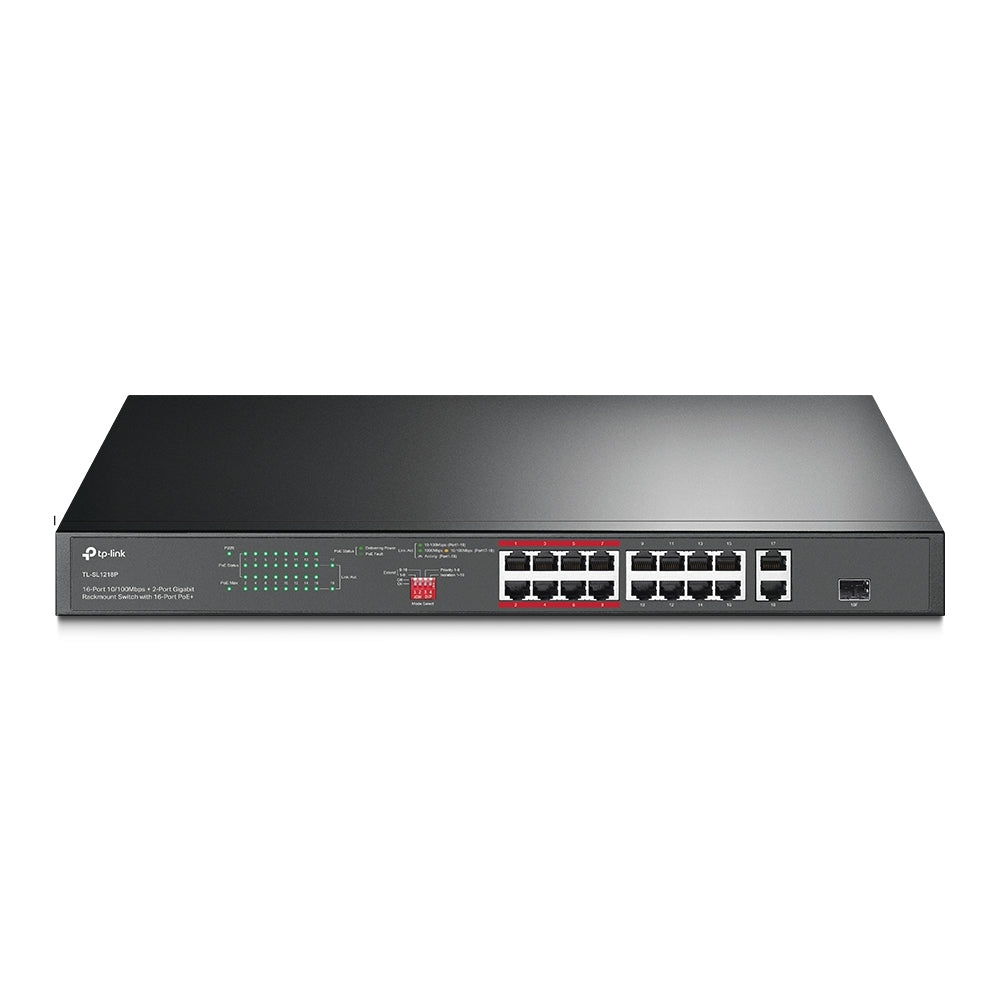

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (New)

• 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
• High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.
• Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
• Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• Easy to use, with no configuration and installation needed.
Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Specifications

HARDWARE FEATURES
Interface
16 PoE+ 10/100 Mbps RJ45 Ports
2 10/100/1000 Mbps RJ45 Ports
1 Combo Gigabit SFP Slot
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1-16
PoE Power Budget: 150 W
Max Power Consumption
12.71 W (220/50Hz. no PD connected)
172.8 W (220/50Hz. with 150 W PD connected)
Max Heat Dissipation
43.34 BTU/h (no PD connected)
589.25 BTU/h (with 150 W PD connected)

PERFORMANCE
Switching Capacity
7.2 Gbps
Packet Forwarding Rate
5.36 Mpps
MAC Address Table
8K
Jumbo Frame
10 KB

SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method
Store-And-Forward

OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SL1218P
Power Cable
Installation Guide
Two mounting brackets and the fittings
Environment
Operating Temperature: 0-50 ^oC (32-122 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

Item Dimension (L"x W"x H")
21 x 10 x 4
Weight
7.00 LB
Warranty Information
Limited Lifetime
