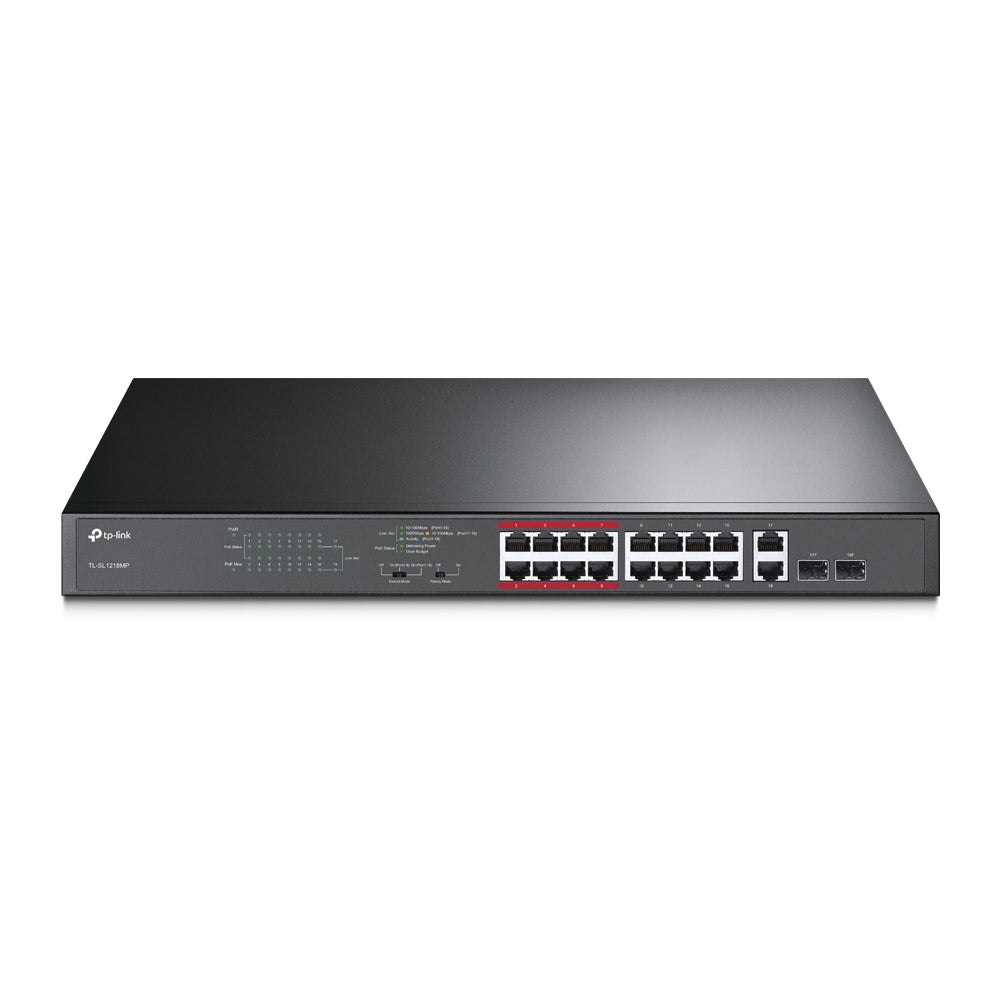

TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (New)

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

• 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
• Up to 250m data and power transmission under extend mode specially designed for surveillance system
• Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
• High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
• Easy to use, with no configuration and installation needed

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Specifications

HARDWARE FEATURES

Interface
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity
2 Fans

Power Supply
100-240V AC, 50/60 Hz

Backup Bandwidth
7.2 Gbps

PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W

Mac Address Table
8K

Max Power Consumption
18.7 W (no PD connected)
217.2 W (with 192W PD connected)

Max Heat Dissipation
63.9 BTU/h (no PD connected)
741.2 BTU/h (with 192W PD connected)

SOFTWARE FEATURES

Advanced Features
Compatible with IEEE 802.3at/af compliant devices
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, RoHS

Package Contents
TL-SL1218MP
Power Cable
Installation Guide

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
21 x 10 x 4

Weight
7.00 LB
