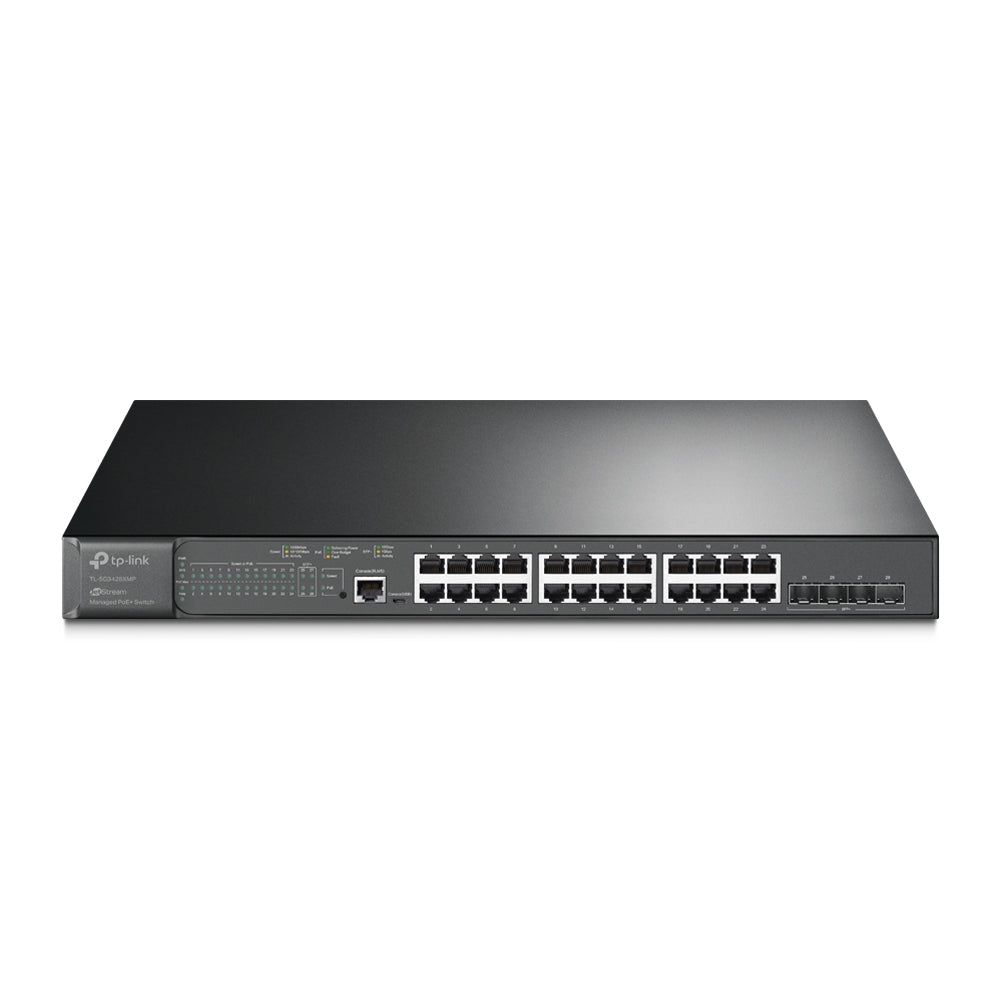

TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ (New)

JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
• 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Enterprise Switch with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications
Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Specifications

HARDWARE FEATURES
Interface
24 10/100/1000 Mbps RJ45 Ports
4 10G SFP+ Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Fan Quantity
2
Power Supply
100-240 V AC-50/60 Hz
Mounting
Rack Mountable
Max Power Consumption
34.4 W (110V/60Hz) ( no PD device connected)
465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation
117.38 BTU/h (110 V/60 Hz) (no PD device connected)
1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

PERFORMANCE
Switching Capacity
128 Gbps
Packet Forwarding Rate
95.23 Mpps
MAC Address Table
16 K
Jumbo Frame
9 KB

SOFTWARE FEATURES
Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
Bandwidth Control
- Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 and L2+ Features
Link Aggregation
- static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
- Port based
- VLAN based
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
IGMP Authentication
MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile

VLAN
VLAN Group
- Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
Voice VLAN
Access Control List
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL apply to Port/VLAN
Security
IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
- 48 static routes
Static ARP
- 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Management
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)
MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB

OTHERS
Certification
CE, FCC, RoHS
Package Contents
TL-SG3428XMP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0-45 ^oC (32-113 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

Item Dimension (L"x W"x H")
21 x 18 x 4

Weight
13.60 LB
