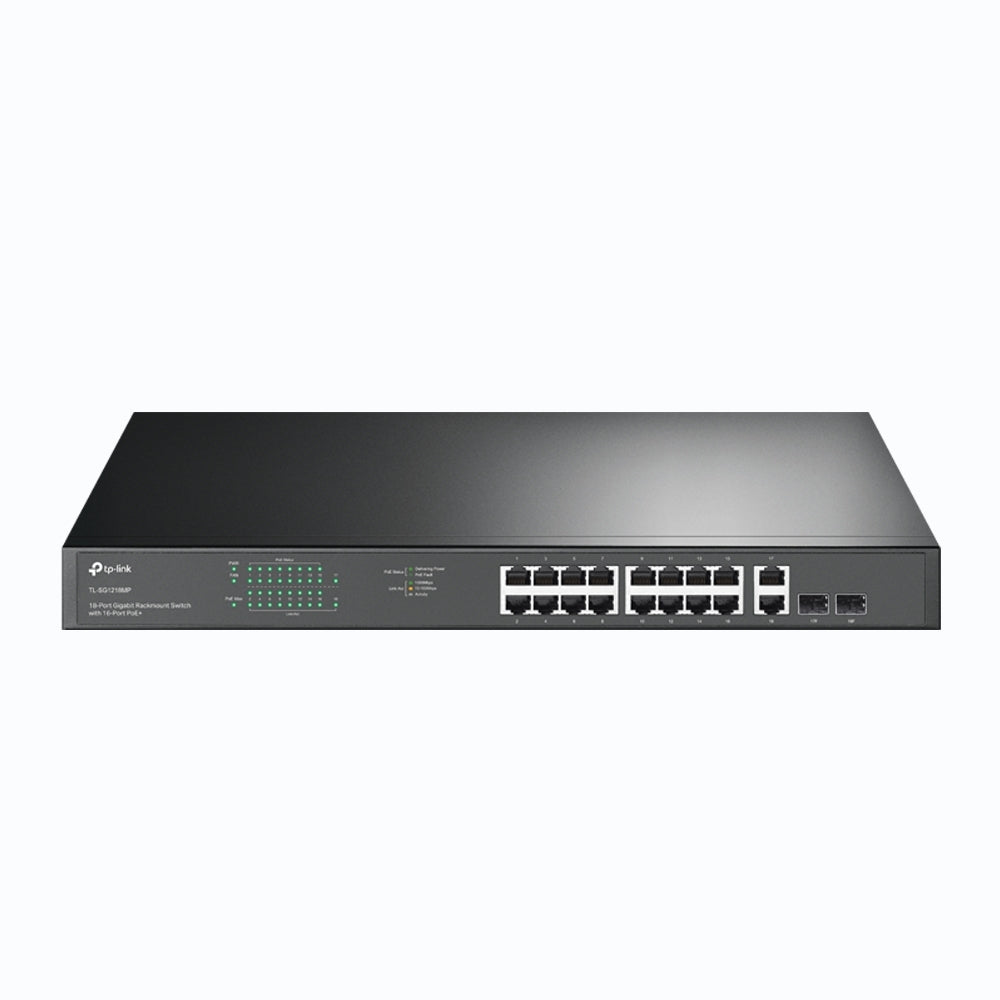

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+ (New)

18-Port Gigabit Rackmount Switch with 16 PoE+

• 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Working with IEEE 802.3af/at compliant PDs
• Plug and play, with no configuration and installation needed
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface
16x PoE+ gigabit RJ45 ports
2x gigabit non-PoE RJ45 ports
2x combo gigabit SFP slots

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100OHM STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 OHM STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 OHM STP (maximum 100m)
1000BASE-X MMF, SMF

Fan Quantity
2

Physical Security Lock
Yes

Power Supply
100 to 240 VAC, 50/60 Hz

PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1 to 16
PoE Power Budget: 250 W

Mounting
19" 1U rack mountable

Max Power Consumption
21.4 W (no power device connected)
286.6 W (with 250 W power devices connected)

Max Heat Dissipation
73.0 BTU/h (no PD connected)
977.4 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity
36 Gbps

Packet Forwarding Rate
26.78 Mbps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
802.1p/DHCP QoS
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame
10 KB

OTHERS
Certification
CE, FCC, RoHS

Package Contents
TL-SG1218MP
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet

Environment
Operating Temperature: 0 to 50 ^oC (32 to 122 ^oF)
Storage Temperature: -40 to 70 ^oC (-40 to 158 ^oF)
Operating Humidity: 10 to 90% RH non-condensing
Storage Humidity: 5 to 90% RH non-condensing

Item Dimension (L"xW"xH")
21 x 10 x 4

Weight
8.18 lb
