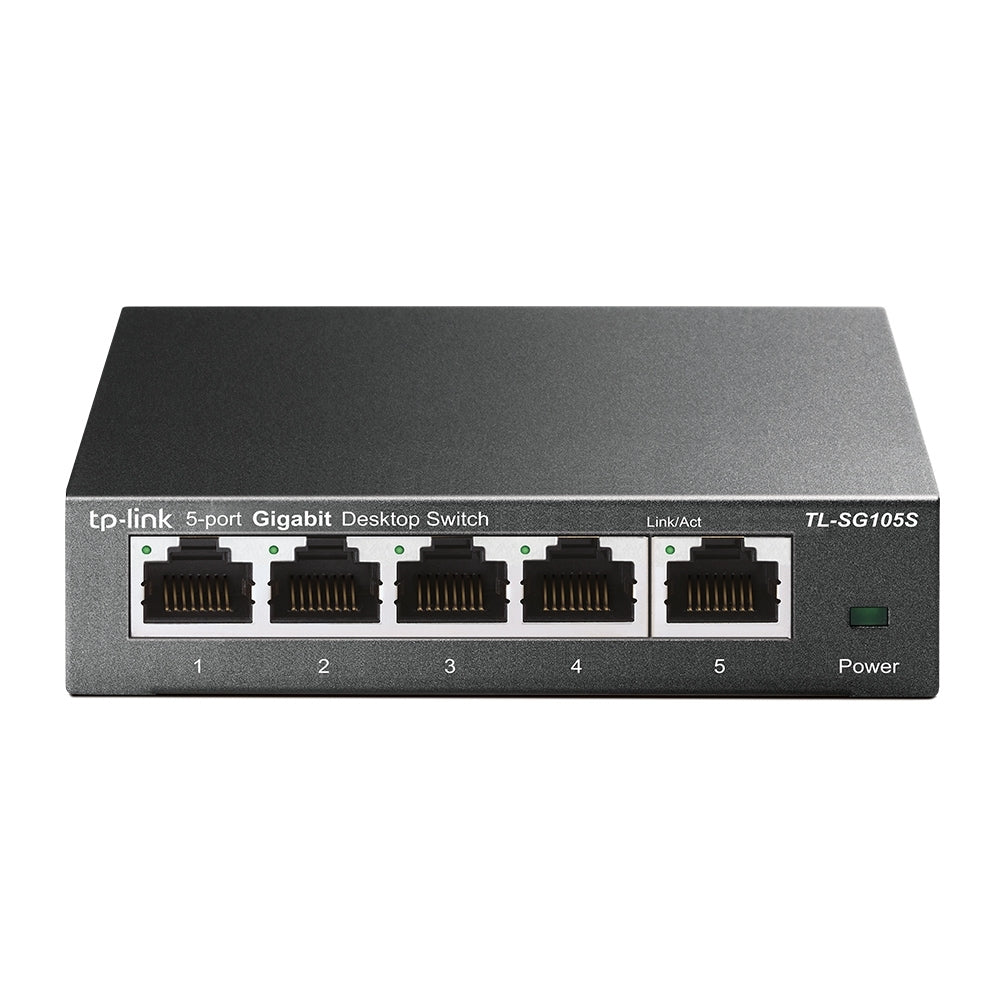

TP-Link TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch (New)

TL-SG105S
5-Port 10/100/1000Mbps Desktop Switch

• 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS and IGMP Snooping function
• Plug and play, no configuration needed

What This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface
5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
Power Consumption
Maximum: 2.3W (220V/50Hz)
External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Max Heat Dissipation
7.83 BTU/h

PERFORMANCE
Packet Forwarding Rate
7.4Mpps
MAC Address Table
2K
Packet Buffer Memory
1Mb
Jumbo Frame
16KB

SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method
Store and Forward

OTHERS
Certification
CE, FCC, RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0^oC-40^oC (32^oF-104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5%-90% non-condensing

Item Dimension (L"xW"xH")
6 x 5 x 4

Weight
1 lb
