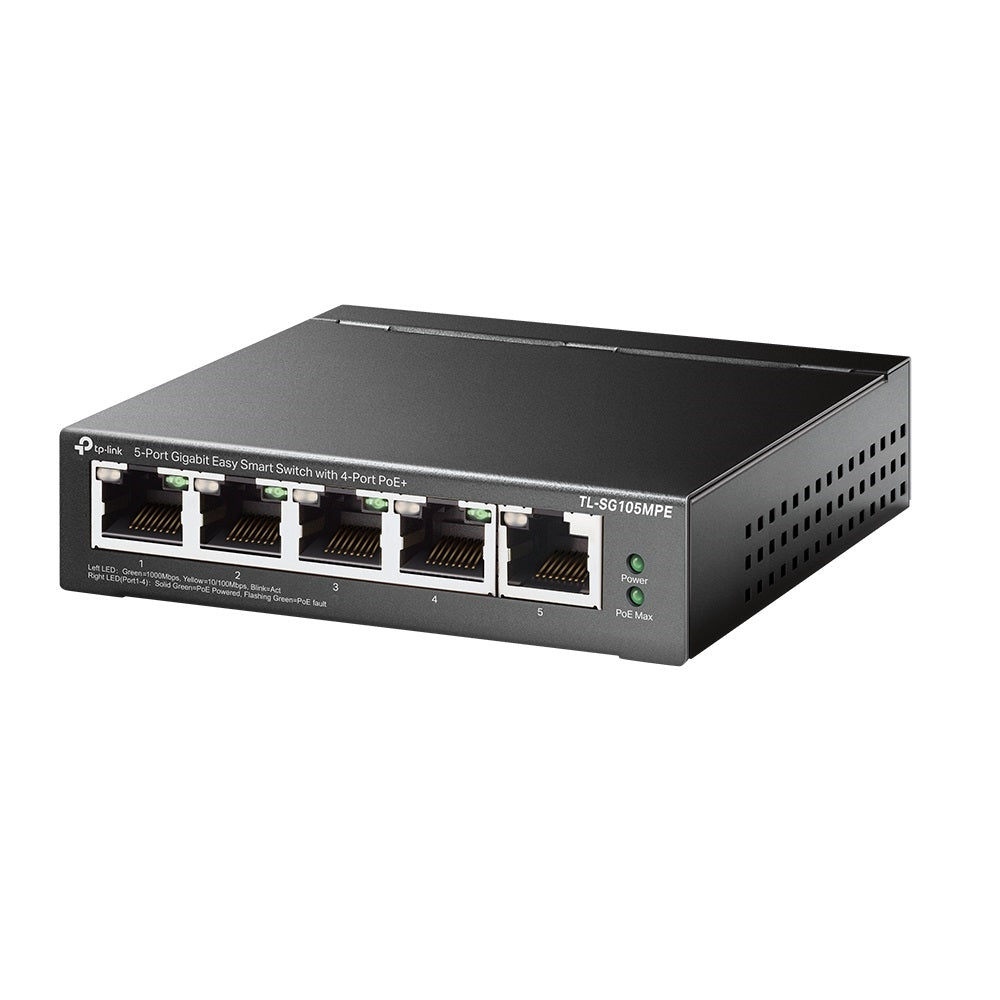

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ (New)

5-Port Gigabit Easy Smart Switch with 4-Port PoE+

• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
• Supports PoE power up to 120 W for all PoE ports*
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
• Fanless design lowers energy consumption and eliminates operating noise

Multiple Application Scenarios
The TL-SG105MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Omada EAPs
Wired Connections
Works with PCs and Printers

Dedicated 4 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 4× gigabit PoE+ ports make it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 120 W
Max Power Consumption
4.34 W (220 V/50 Hz with no PD connected)
137.01 W (110 V/50 Hz with 120 W PD connected)
Max Heat Dissipation
14.8 BTU/h (with no PD connected)
467.17 BTU/h (with 120 W PD connected)

PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
MAC Address Table
2 K
Packet Buffer Memory
1 Mb
Jumbo Frame
16 KB

SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward

OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG105MPE
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows for running Utility
Environment
Operating Temperature: 0^oC-40^oC (32^oF-104^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90%RH non-condensing
Storage Humidity: 5%-95%RH non-condensing

Item Dimension (L"xW"xH")
10 x 9 x 3

Weight
2.38 lbs
