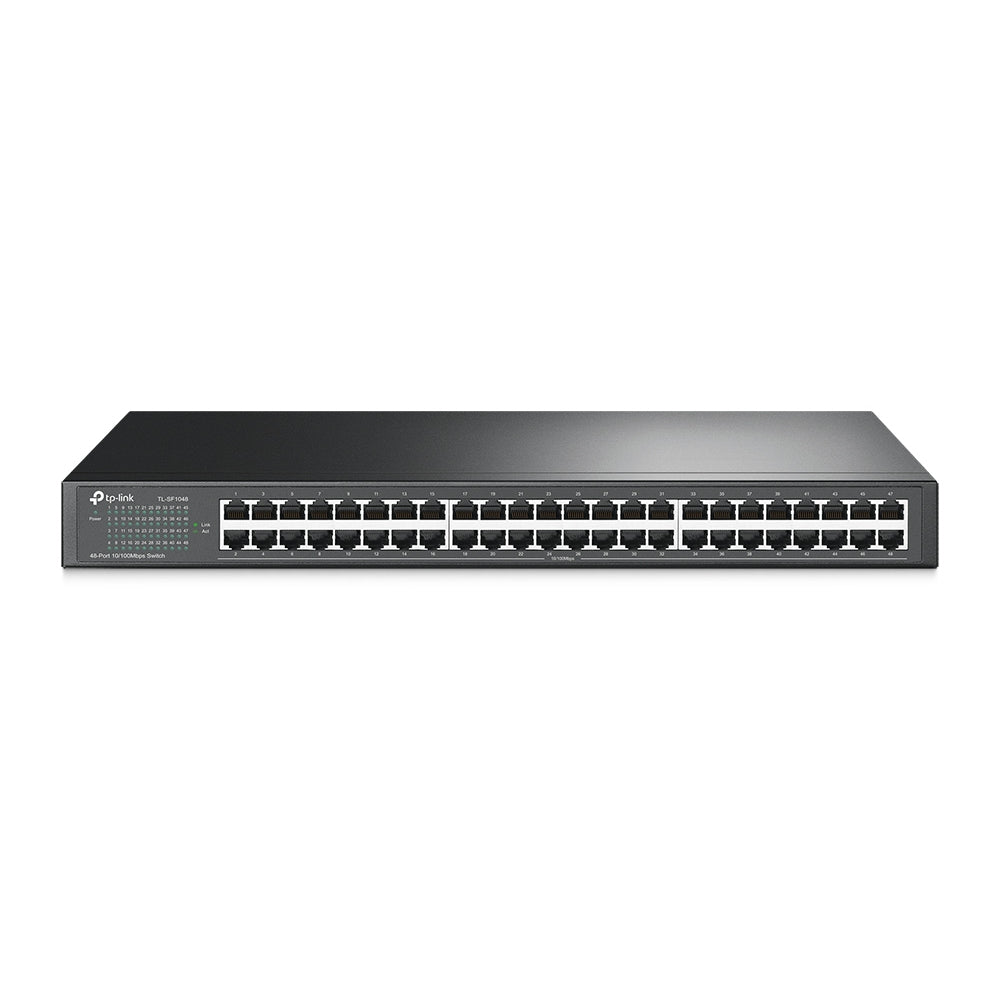

TP-Link TL-SF1048 48-Port 10/100Mbps Rackmount Switch (New)

The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.

Specifications

Key Features
Status Indicators: Power, Link Activity
MAC Address Table Size: 8K
Device Type: Rackmount Switch
Compliant Standards: IEEE 802.3, IEEE 802.3u and IEEE 802.3x
Power Device: 100 - 240 VAC , 50/60 Hz
Ports Qty: 48 Port
Data Link Protocol: CSMA/CD, TCP/IP

Detail Specifications

Features
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity, 100Mbps
Standard 19-inch rack-mountable steel case
Internal universal power supply
Specifications
Standards and Protocols : IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function : Wire-speed Performance MAC Address Auto-Learning and Auto-agingIEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth : 9.6Gbps
MAC Address Table : 8k
Forwarding Rate : 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
Transmission Method : Store-and-Forward
Ports : 48 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media : 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100U STP (maximum 100m)100Base-Tx: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100U STP (maximum 100m)
LED Indicators : Power, Link/Act
Safety and Emission : FCC, CE
Environment : Operating Temperature: 0C-40C (32F-104F)Storage Temperature: -40C-70C (-40F-158F)Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing
Power : 100-240VAC, 50/60Hz

Dimensions / Weight
Dimensions (WxDxH) : 17.3x10.2x1.7 in. (440x260x44 mm)
Packing Dimension LxWxH : 21 x 4 x 10 inch
Weight : 10lbs
