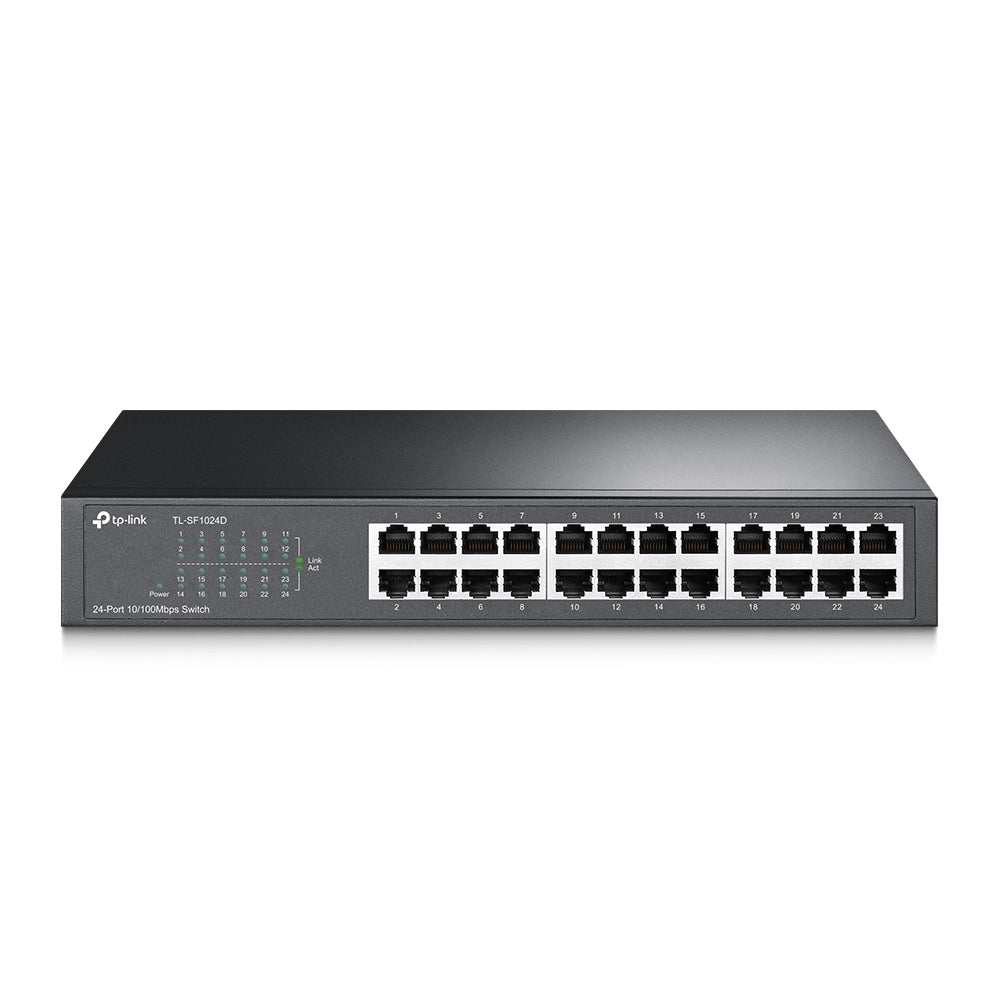

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch (New)

24-port 10/100Mbps Desktop/Rackmount Switch

• 24 10/100M RJ45 ports.
• Innovative energy-efficient technology saves power up to 75%
• Supports MAC address self-learning and auto MDI/MDIX
• Standard 13-inch steel case.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Interface
24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)

Backup Bandwidth
4.8Gbps

External Power Supply
100-240VAC, 50/60Hz

LED Indicator
Power, Link/Act, 100Mbps

SOFTWARE FEATURES

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Port Forwarding
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

Transfer Method
Store-and-Forward

MAC Address Table
8k

Item Dimension (L"xW"xH")
20.48 x 16.54 x 13.59

Weight
28.00 lb
