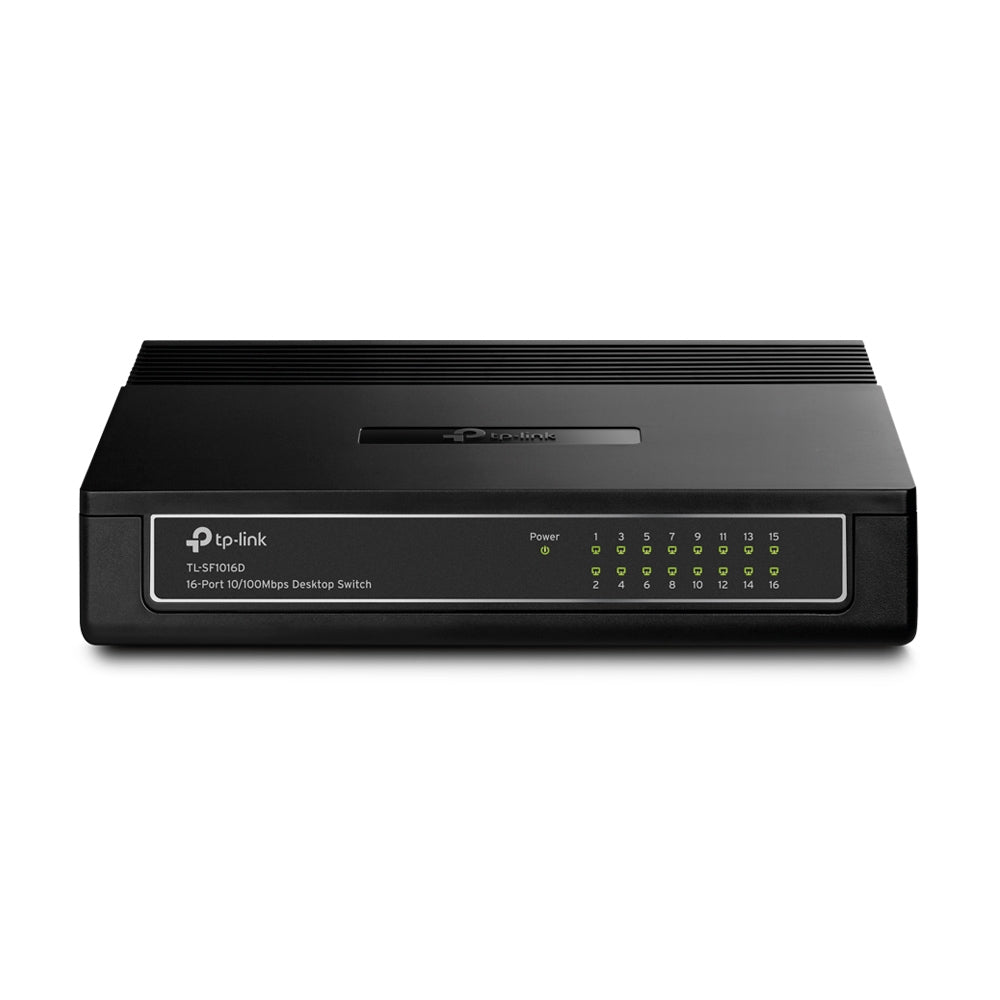

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch (New)

TL-SF1016D 16-port 10/100Mbps Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.The TP-LINK TL-SF1016D 16-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Specifications

Key Features
MAC Address Table Size: 1K entries
Power Device: Power Adapter - External
Status Indicators: Power, Link Activity
Device Type: Desktop Switch
Ports Qty: 16 Ports
Compliant Standards: IEEE 802.3, IEEE 802.3u and IEEE 802.3x
Data Link Protocol: CSMA/CD, TCP/IP

Detail Specifications

Features
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
Plastic case, desktop or wall-mounting design
External Power Adapter supply
Specifications
Standards and Protocols : IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth : 3.2Gbps
MAC Address Table : 1k
Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method : Store-and-Forward
Ports : 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
LED Indicators : Power, Link/Act (1-16)
Safety and Emission : FCC, CE
Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Power External Power Adapter
Power : External Power Adapter

Dimensions / Weight
Dimensions (WxDxH) : 7.9x5.6x1.6 in. (200x142x40 mm)
Packing Dimension LxWxH : 12 x 3 x 9 inch
Weight : 3lbs
