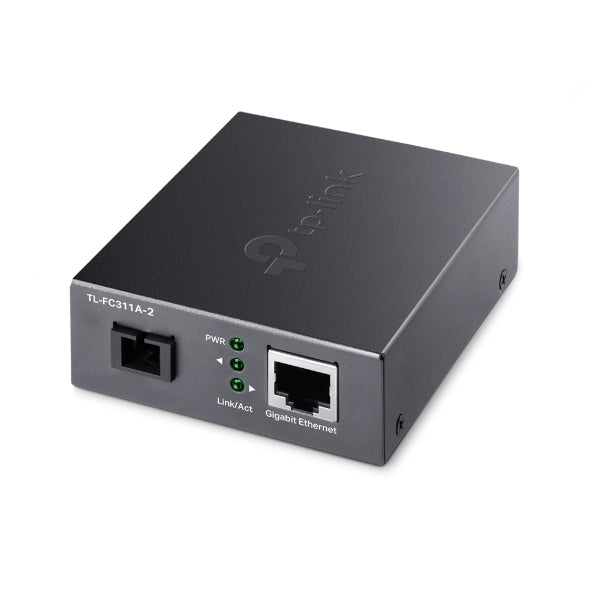

TP-Link TL-FC311A-2 Gigabit WDM Media Converter (New)

TL-FC311A-2

• Gigabit WDM Media Converter
• 1x 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km

What This Product Does
TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as remote video surveillance system and wireless networking.

How This Product Works
TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only one single mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.

Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Links TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications

NETWORK
Standards and Protocols
IEEE 802.3i, 802.3u, 802.3ab, 802.3z

ENVIRONMENT
Operating Temperature
0^oC to 50^oC (32^oF to 122^oF)
Storage Temperature
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing

HARDWARE FEATURES
Interface
1x Gigabit SC Fiber Port
1x 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media
Single-mode Fiber
UTP category 5, 5e cable (maximum 100m)
Power Supply
External Power Adapter: 5 V/0.6 A
LED
PWR, Link/Act
Wave Length
1550 nm TX, 1310 nm RX

MEDIA CONVERTER AND MODULE
Fiber Type
9/125 micrometer single-mode fiber (2 km max.)

OTHERS
Package Contents
Media Converter TL-FC311A-2
Power Adapter
Installation Guide

Item Dimension (L"xW"xH")
9 x 7 x 3

Weight
2 lbs
