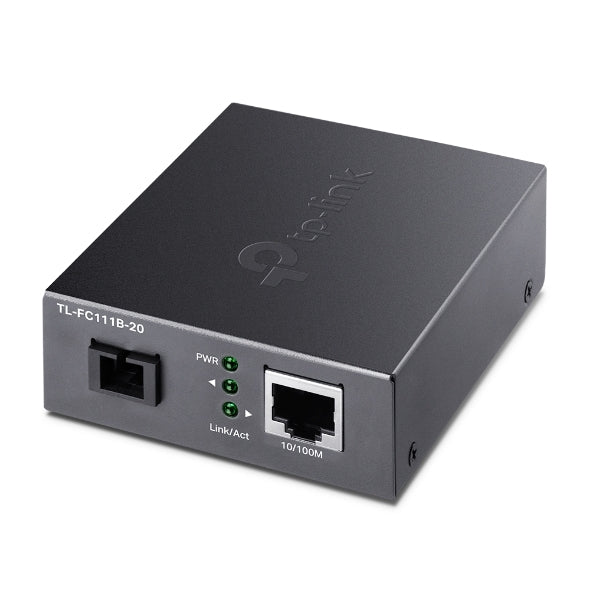

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter (New)

TL-FC111B-20
10/100 Mbps WDM Media Converter

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• 9/125 micrometer SMF (Single-Mode Fiber)
• Bidirectional WDM communication on a single fiber
• Ranges up to 20km (12.4 miles)
• Work with TL-FC111B-20 as a pair

What This Product Does
TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

How This Product Works
TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.

Specifications

NETWORK
Standards and Protocols
IEEE802.3, IEEE802.3i, IEEE802.3u

ENVIRONMENT
Operating Temperature
0^oC to 50^oC (32^oF to 122 ^oF)
Storage Temperature
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing

HARDWARE FEATURES
Interface
1x 100 Mbps SC Fiber Port
1x 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media
100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (less than or equal 100 m)
Power Supply
External Power Adapter: 5 V/0.6 A
LED
PWR, Link/Act
Wave Length
1310 nm TX, 1550 nm RX

MEDIA CONVERTER AND MODULE
Standards and Protocols
IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function
Auto-negotiation of half-duplex / full-duplex transfer mode
Full-duplex flow control (IEEE 802.3x)
Half-duplex flow control (Backpressure)
Extends fiber distance up to 20km (12.4 miles)
Ports
1x 100M single SC/UPC port
1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX
1310 nm
WDM RX
1550 nm
Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Omega STP (maximum 100m)
Network Media 100BASE-FX
Single-mode fiber
LED Indicators
PWR, Link/Act
Power Supply
External Power Adapter: 5 V/0.6 A
Safety and Emission
FCC, CE, RoHS
Fiber Type
9/125 micrometer single-mode fber (less than or equal 20 km)
Environment
Operating Temperature: 0^oC-50^oC (32^oF-122^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing

OTHERS
Package Contents
Media Converter TL-FC111B-20
Power Adapter
Installation Guide

Item Dimension (L"xW"xH")
9 x 7 x 3

Weight
2 lbs
