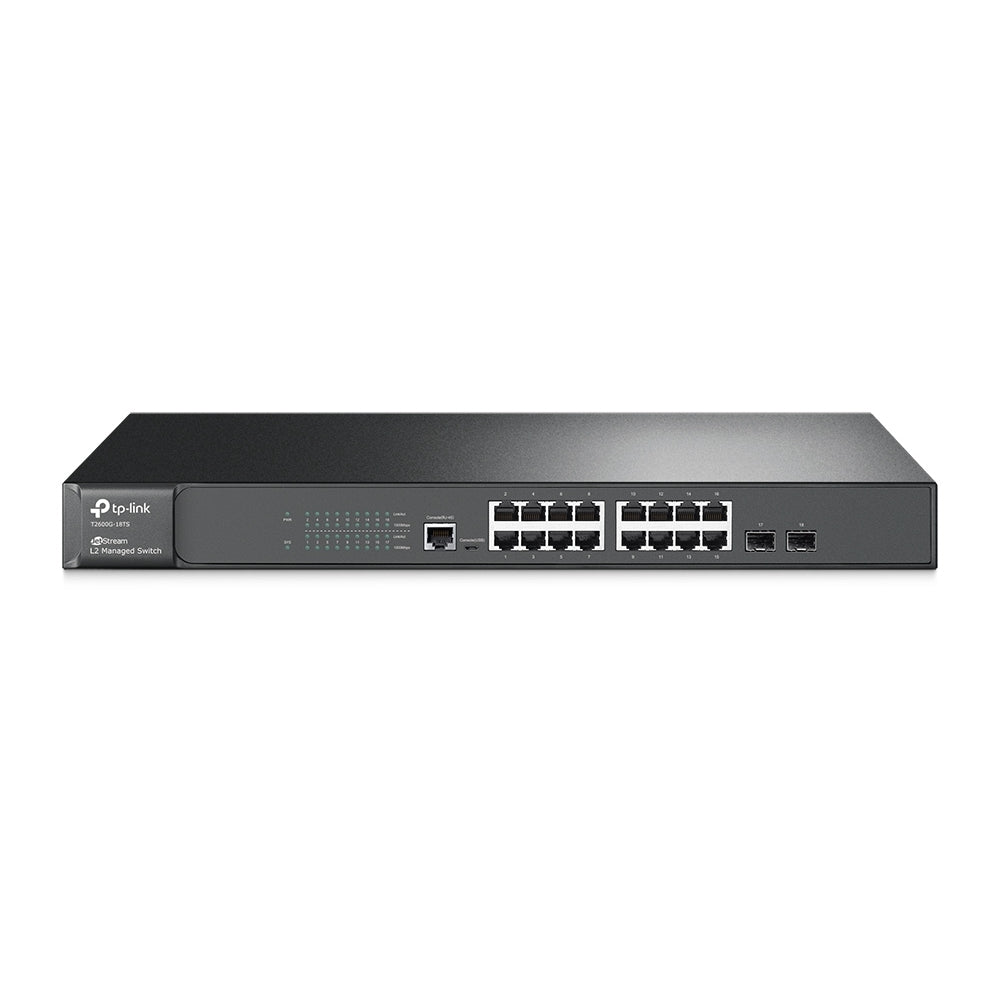

TP-Link T2600G-18TS JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots (New)

JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots

• 16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots
• Selectable RJ45 or Micro-USB Console Port
• L2+ feature——Static Routing, helps route internal traffic for more efficient use of network resources
• IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you with robust security strategies
• L2/L3/L4 QoS and IGMP snooping that optimize voice and video application
• DDM provides monitoring of all SFP Modules inserted to the switch
• IPv6 supported with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies

What This Product Does
TP-Link JetStream Gigabit L2 managed switch T2600G-18TS provides 16 10/100/1000Mbps ports and 2 Gigabit SFP Slots. The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. The IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-Link JetStream 16-Port Gigabit L2 managed Switch T2600G-18TS provides you the ideal network solution.

Specifications

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE802.3z
IEEE 802.3ad
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s
IEEE 802.1w
IEEE 802.1q
IEEE 802.1p

Interface
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 100/1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF

Fan Quantity
Fanless

Physical Security Lock
Yes

Power Supply
100 to 240VAC, 50/60Hz

Mounting
19" 1U rack mountable

Max Power Consumption
11.5W

Max Heat Dissipation
39.1 BTU/h

PERFORMANCE
Switching Capacity
36Gbps

Packet Forwarding Rate
26.78Mpps

MAC Address Table
8k

Jumbo Frame
9216 Bytes

SOFTWARE FEATURES
Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN

L2 and L2+ Features
Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT

VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
802.1Q/MAC/Protocol-based VLAN
GARP/GVRP

Access Control List
L2 to L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p,DSCP, protocol and VLAN ID
Time Range Based ACL

Security
IP-MAC-Port Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control

IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 ACL
DHCPv6 Snooping
IPv6 Interface

IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL
IPv6 Interface
IPv6 Routing
DHCPv6 Snooping

Management
Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
PPPoE Circuit ID
DHCP Relay
DHCP Server
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
DDM
Time Setting: SNTP
Firmware Upgrade: TFTP and Web
System Diagnose: VCT
SYSLOG and Public MIBS
Password Recovery

OTHERS
Certification
CE, FCC, RoHS

Package Contents
Switch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
21 x 4 x 14

Weight
9.00 lb
