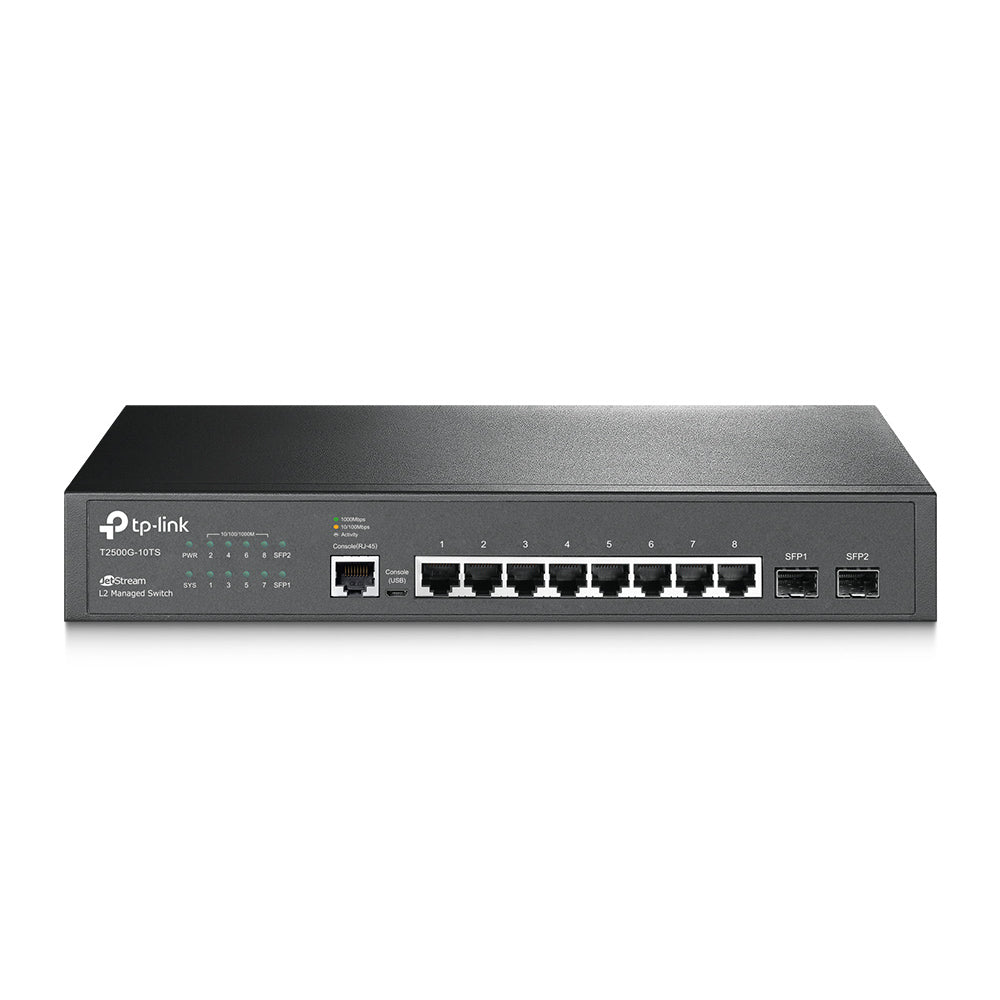

TP-Link T2500G-10TS JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots (New)

JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots

• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Selective RJ45 console port and Micro-USB console port
• Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Specifications

Hardware Features
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface: 8 10/100/1000Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity: Fanless
Power Supply: 100 - 240VAC, 50/60Hz
Power Consumption: Maximum: 8.38W (220V/50Hz)

Performance
Bandwidth/Backplane: 20Gbp
Packet Forwarding Rate: 14.9Mpps
MAC Address Table: 8k
Packet Buffer Memory: 4Mb
Jumbo Frame: 10KB

Software Features
Quality of Service: Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features: IGMP Snooping v1/v2/v3
MLD v1/v2 Snooping
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
LLDP/LLDP-MED
DHCP VLAN Relay
L2PT
VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
GARP/GVRP
VLAN VPN (QinQ)
Management VLAN configuration
Access Control List: L2 - L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
Security: IP-MAC-Port-VID Binding
AAA
DHCP Snooping
IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
PPPoE
IPv6: Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications: DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management: Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Dual Image
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP Web
System Diagnose: VCT
SYSLOG Public MIBS

Others
Certification: CE, FCC, RoHS
Package Contents: Switch Power Cord Quick Installation GuideResource CD Rackmount Kit Rubber Feet
System Requirements: Microsoft Windows10, 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment: Operating Temperature: 0^o - 40^o (32^o - 104^o )
Storage Temperature: -40^o - 70^o (-40^o - 158^o)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

Item Dimension (L"xW"xH")
16 x 4 x 10

Weight
5.00 lbs
