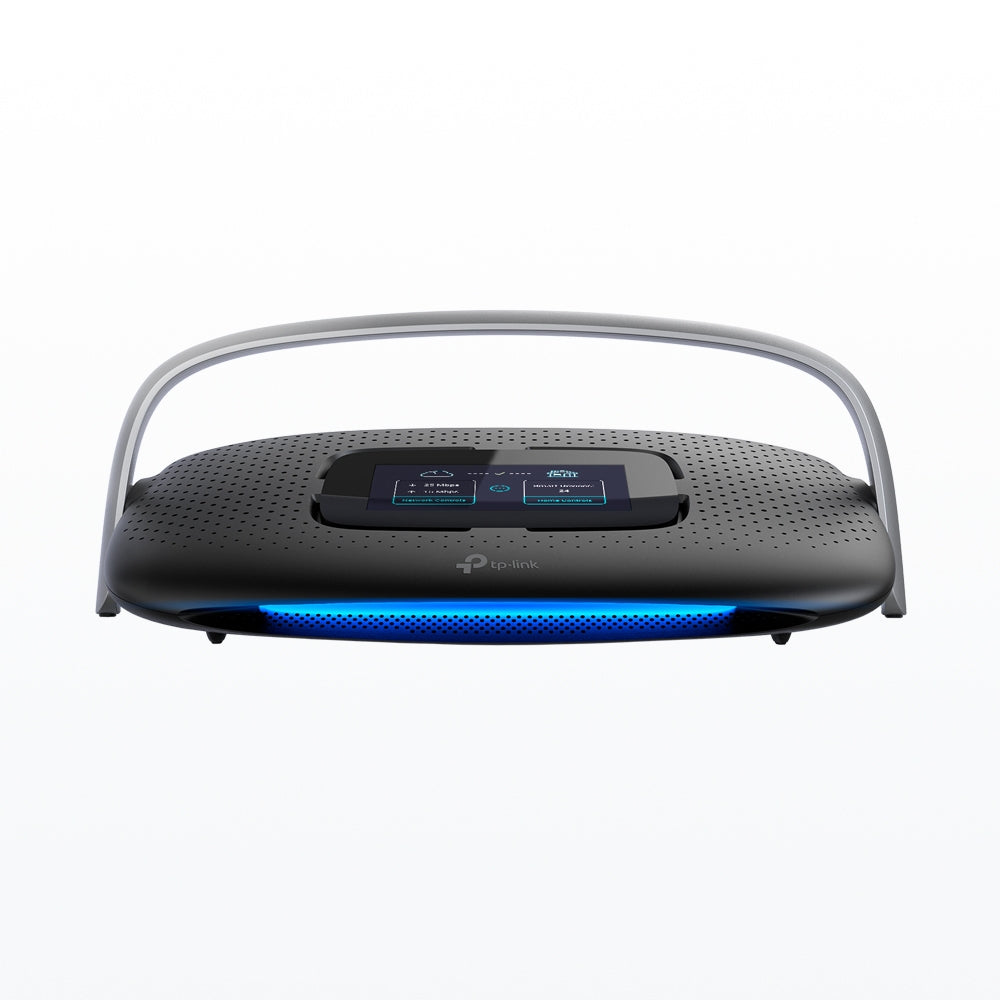

TP-Link SR20 AC1900 Kasa Smart Home Router with Touch Screen (New)

Kasa Smart Home Router AC1900 Wi-Fi Router + Smart Home Hub + Touch Screen

• Connect your Wi-Fi, ZigBee and Z-Wave devices to a unified smart home network for increased performance, intelligence, reliability and peace of mind.
• Built-in smart home hub lets you control your favorite ZigBee, Z-Wave, and TP-Link Wi-Fi smart home devices from anywhere using the Kasa app.
• Easily set up, monitor and control your entire smart home network from the built-in touchscreen or the Kasa app. Pause internet access, manage guest access, control smart home devices, and more.
• Experience Gigabit Wi-Fi for all your gaming and streaming. Dual-band AC1900 Wi-Fi provides 1300 Mbps in 5GHz and 600 Mbps in 2.4GHz.
• Automatically turn on lights with sensors*, schedule lighting, set timers and more with built-in Smart Actions. (*Sensors sold separately)
• Requires a secured home Wi-Fi network connection

A Smart Home Starts with A Smarter Network
The SR20 makes it easy to set up and manage your smart home, whether you're just starting out or already fully integrated. It works with smart devices that use ZigBee and Z-Wave and serves as a Wi-Fi router for the rest of your wireless home.

A True Ecosystem for Your Home
The SR20 seamlessly merges all the smart products and Wi-Fi devices in your home so they work together, making it easier for you to add them to the schedules and scenes you've already created.

Specifications

HARDWARE FEATURES
Processor
1 GHz Dual Core
Memory
128MB RAM
128MB Flash

Standards and Protocols
IEEE 802.11 Wi-Fi ac/n/a 5GHz
IEEE 802.11 Wi-Fi b/g/n 2.4GHz + 256QAM
ZigBee 3.0 (2.4Ghz)
Z-Wave + (900MHz)
Interface
1 WAN Gigabit Ethernet
4 LAN Gigabit Ethernet
1 USB 2.0
1 USB 3.0
LED Panel
Front LED light bar
Home button LED

Wi-Fi Chipset Features
Dual Band 5GHz and 2.4GHz
Enable/Disable Wireless Radio
WPA/WPA2, WPA-PSK/WPA-PSK2, WEP128 security
WIRELESS FEATURES
Frequency
1300Mbps on 5GHz
600Mbps on 2.4GHz

Transmission Power
5GHz: 11a 6Mbps: - 94dBm, 11a 54Mbps: -75dBm, 11ac
HT20: -66dBm, 11ac HT40: -62dBm, 11ac HT80: -59dBm
2.4GHz: 11g 54MBps: -76dBM, 11n HT20: -73dBm, 11n HT40: -71dBm
SOFTWARE FEATURES
System Tools
Built-in Touchscreen management interface
Remote Kasa app management interface
Built-in web interface for advanced router settings

Basic Function
Wi-Fi Router
ZigBee HA Gateway
Z-Wave Gatway
Quick setup using Kasa App built-in touchscreen
Easily view and test internet connection via App or touchscreen
Pause Intent access for specific clients
Easily manage access to guest Wi-Fi network
Internet Speed Test using touchscreen or Kasa app
Easily view connected devices
Monitor and control smart home devices using the touchscreen

Protocols
Supports IPv4 and IPv6
ZigBee HA
Z-Wave Plus

Advanced Features
WAN Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/Bigpond
DHCP: Server, Client, DHCP Client List, Address Reservation
Quality of Service: WMM, Bandwidth Control
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
USB sharing: Supports Samba(Storage)/FTP Server/Media Server/Printer Server

APP
Easy setup using Kasa App and Touchscreen
Monitor and test internet connection
Easy guest network management
Pause Internet Screen Time
Block/unblock clients

Supported Operating Systems
Microsoft Windows, Mac OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
SECURITY
Access Control
Touch Screen Lockout
Parental Control
Local Management Control
Host list
Rule Management

Wi-Fi Security
Supports WEP, WPA/WPA2 Enterprise and WPA/WPA2-PSK
Supports MAC Filtering
Supports WPS
Supports WEP128
Firewall Features
DoS, SPI Firewall, IP and MAC Address Binding

NETWORK
System Requirements
iOS
Android
INTERFACES
Button
4.3 inch Capacitive Touch Screen
Power On/Off button
Reset button

GENERAL
General Features
Fast AC1900 Dual-Band Wi-Fi Router
Built-in ZigBee and Z-Wave smart home hub
Built-in 4.3 inch Touchscreen
4 GB Ethernet LAN ports
Controls a growing ecosystem of smart home devices
Easy network management via touchscreen or Kasa App

Mobile App Features
Easy setup using Kasa App and Touchscreen
Monitor and test internet connection
Easy guest network management
Pause Internet Screen Time
Block/unblock clients

Certification
FCC/IC
ZigBee HA
Z-Wave Plus
Package Contents
SR20 Smart Home Router
Plug-in Power Supply
Optional wall mount bracket
Quick Start Guide

Power Requirements
120VAC power support with 12V 3.3A output
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

WORKING STATUS
Rated input Voltage
120VAC power support with 12V 3.3A output

OTHERS
Smart Motion Sensor (MS100)
Motion Detection
- 46ft. max (14m) - 120-degree field of view
Wireless Communication
- ZigBee HA
- 100ft. max (30m)
Dimensions
- 3in H x 2.5in W x 3.5in D for Sensor Body
Battery Life
- Up to 2 years (typical)
Intended for Indoor Use Only
Whats required
- Kasa Smart Home Router
- Kasa Smart app
Whats in the box
- Smart Motion Sensor 1
- Ceiling/Wall Mount Bracket
- Quick Start Guide
- Adhesive Strip
- AA Battery 2

Smart Open-Closed Sensor (CS100)
Sensor Dectection Range
- 0.4in. max (10mm)
Wireless Communication - ZigBee HA
- 100ft. max (30m)
Dimensions
- 2.4in H x 0.7in W x 2in D for Sensor Body
- 1.9in H x 0.6in W x 0.6in D for Magnet
Battery Life
- Up to 2 years (typical)
Whats required
- Kasa Smart Home Router
- Kasa Smart app
Whats in the box
- Smart Open-Closed Sensor 1
- AA Battery 1
- Quick Start Guide
- Adhesive Strip

Item Dimension (L"xW"xH")
15 x 5 x 11

Weight
6.00 LB
