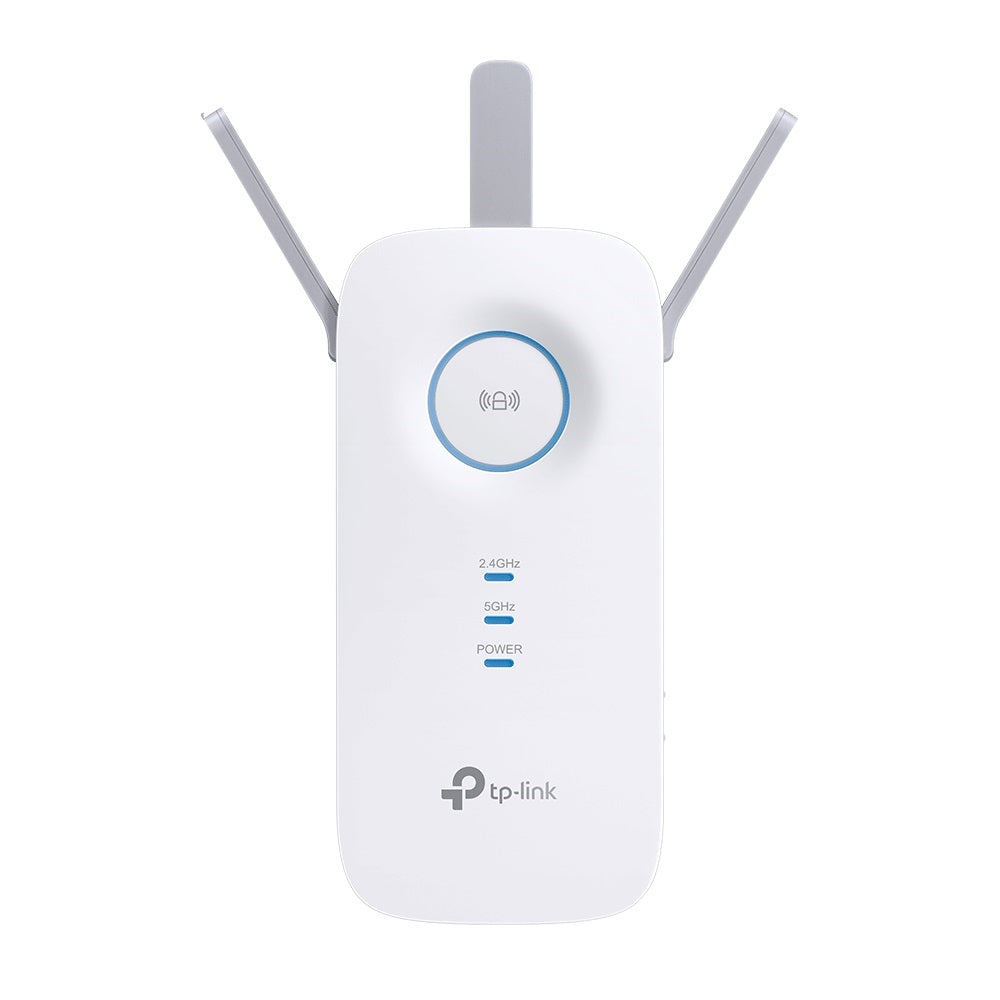

TP-Link RE550 AC1900 Mesh Wi-Fi Range Extender Dual-Band 600Mbps (New)

AC1900 Wi-Fi Range Extender

• Maximum Coverage - Extend Wi-Fi coverage by up to 1,115 m2（12,000sq. ft).
• AC1900 Dual Band Wi-Fi - Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz
• Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
• Gigabit Ethernet port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed
• Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
• AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

Boost Whole Home Wi-Fi with Your Existing Router
A single router has limited Wi-Fi coverage and always causes Wi-Fi dead zones. RE550 wirelessly connects to your existing router and expands its Wi-Fi signal into areas it can’t reach on its own. Enjoy your stable network experience wherever you are at home.

Wi-Fi keeps Strongest for Unlimited Moving
With TP-Link Mesh Technology, it’s easy to form a Mesh network with a single Wi-Fi name for seamless whole home coverage. Just connect RE550 to a OneMeshTM router. Always enjoy the strongest Wi-Fi when you’re walking around with no need to search around for a stable connection.

Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set? TP-Link OneMesh™ resolves your dilemma.

Specifications

HARDWARE FEATURES
Plug Type
EU, UK, US, AU, KR, JP

Standards and Protocols
IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface
1 x 10/100/1000M Ethernet Port (RJ45)

Button
WPS Button, Reset Button, LED Button, Power Button

Power Consumption
10Wmax power consumption

Antenna
3 x external

WIRELESS FEATURES
Frequency
2.4GHz and 5GHz(11ac)

Signal Rate
5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mpbs

Reception Sensitivity
5GHz:
11a 6Mbps:-93dBm at 10% PER
11a 54Mbps: -76dBm at 10% PER
11ac HT20 mcs8: -68dBm at 10% PER
11ac HT40 mcs9: -64dBm at 10% PER
11ac HT80 mcs9: -61dBm at 10% PER
2.4GHz
11g 54M: -77dBm at 10% PER
11n HT20 mcs7: -73dBm at 10% PER
11n HT40 mcs7: -70dBm at 10% PER

Wireless Modes
Range Extender/Access Point

Wireless Functions
Wireless Statistic
Concurrent Mode Boost Both 2.4G/5G WiFi Band
Access Control
LED Control
Domain Login Function
Wi-Fi Coverage

Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power
less than 20dBm(2.4GHz)
less than 23dBm(5GHz)

OTHERS
Certification
CE, FCC, RoHS

Package Contents
AC1900 Wi-Fi Range Extender RE550
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0^oC to 30^oC (32^oF to 86^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
8 x 5 x 4

Weight
2.00 lb
