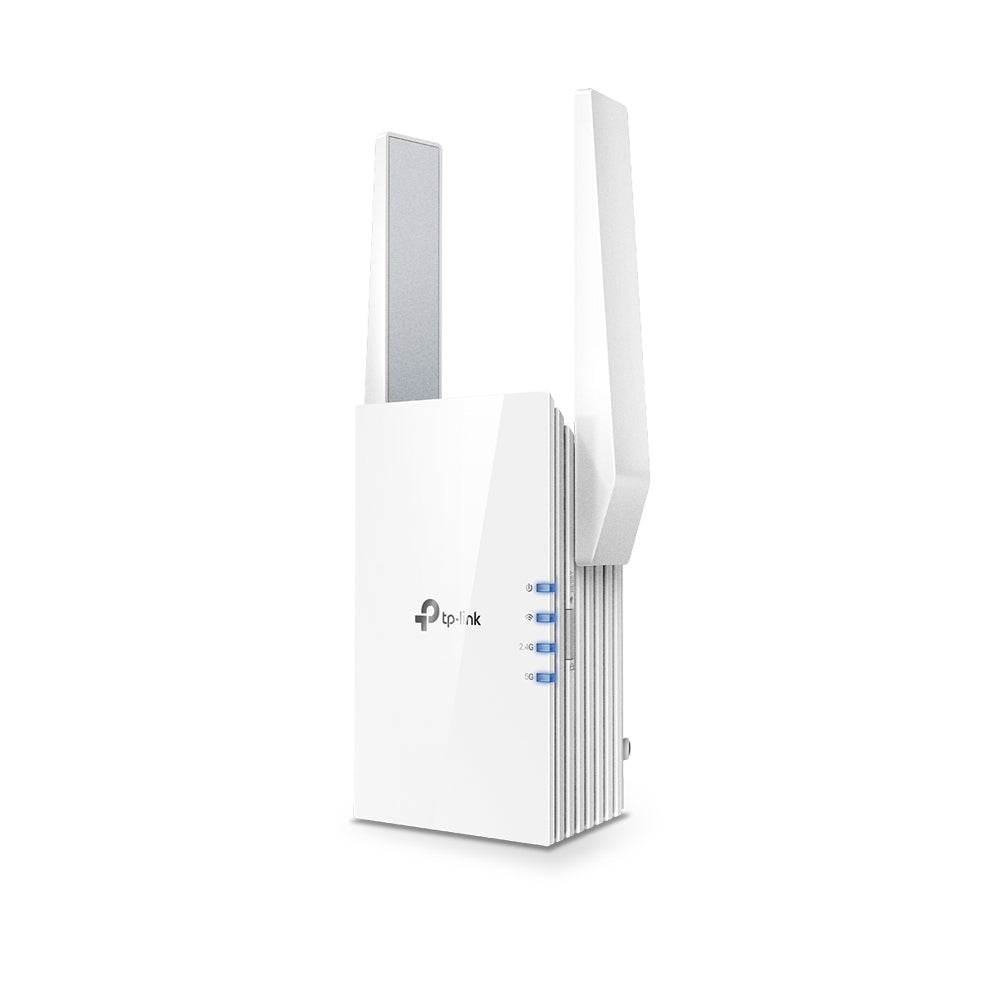

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender Dual-Band (New)

Cutting-Edge Wi-Fi 6
The latest WiFi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network connections. ^1,2

Fill Every Inch of Your Home with Wi-Fi 6
The RE505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge-watch your favorite show anywhere.

Dual-Band, More Benefits

Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.

High-Speed Mode
Use both WiFi bands to enjoy super-fast connections —ideal for HD streaming and gaming.

Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual-band wireless signal.

TP-Link OneMesh ^TM
OneMesh^TM is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect an OneMesh^TM range extender to an OneMesh^TM router so you can stop searching around for a stable connection.

Note
1. This range extender may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification. Further software upgrades for feature availability may be required.
2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Specifications

HARDWARE FEATURES
Ports
1 Gigabit Ethernet Port

Button
WPS Button, Reset Button

Power Consumption
10W

Antenna
2 External Antennas

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency
2.4GHz and 5GHz

Signal Rate
300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Reception Sensitivity
5GHz:

11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm

Transmit Power
CE: 2.4GHz is less than or equal to 20dBm, 5GHz is less than or equal to 30dBm

Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics

Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics

OTHERS
Package Contents
Wi-Fi Range Extender RE505X
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista^TM or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Certifications
FCC, RoHS

Item Dimension (L"xW"xH")
8 x 5 x 4

Weight
2.00 LB
