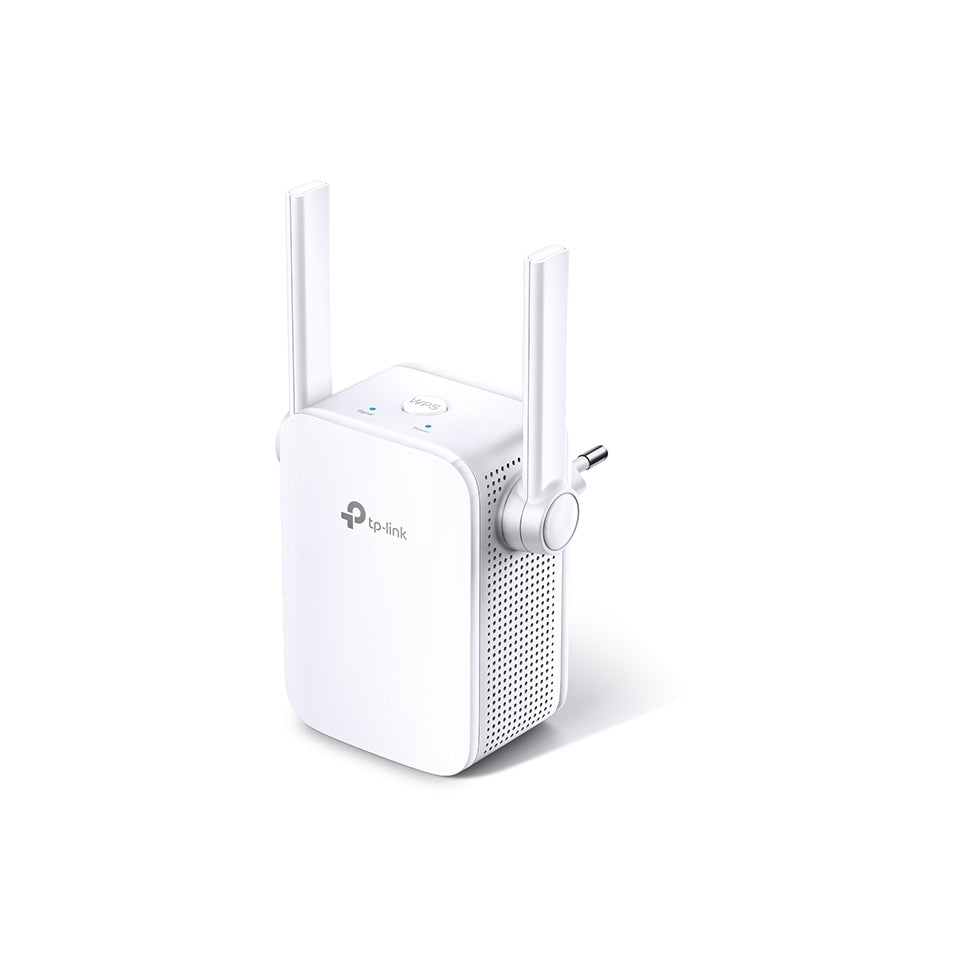

TP-Link RE105 300Mbps Wi-Fi Range Extender (New)

300Mbps Wi-Fi Range Extender

• Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity
• External antennas for faster and more reliable Wi-Fi
• Supports AP mode which creates a new Wi-Fi Access point
• Easily expand wireless coverage at a push of the Range Extender button
• Set the Power Schedule for the range extender for power-saving
• Works with Any Wi-Fi Router

Compact. Strong.
Despite its compact size, it may be hard to ignore the RE105 due to the truly impressive way that it projects Wi-Fi access into the areas of your home that your standard router simply cannot reach. The RE105 supports wireless speeds of up to 300Mbps and keeps all of your favorite devices running as fast as possible.

As Powerful As You Expect
The two external antennas with MIMO technology help set the RE105 apart from the rest. MIMO technology enhances your network by dramatically increasing wireless speeds and the two external antennas ensure that a stable wireless signal reaches you where you need it most.

Effortless Network Expansion
Two Simple Taps and You are Ready to Connect
Just press the WPS button on your router, then press the Range Extender button on RE105 to begin enjoying simple, expanded Wi-Fi.

Specifications

HARDWARE FEATURES
Plug Type
EU, UK, US

Interface
1 x 10/100M Ethernet Port (RJ45)

Button
WPS Button, Reset Button

Power Consumption
3.6W

Antenna
2 x external

WIRELESS FEATURES
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency
2.4 to 2.4835GHz

Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)

Reception Sensitivity
270M: less than -68dBm at 10% PER
130M: less than -68dBm at 10% PER
108M: less than -68dBm at 10% PER
54M: less than -68dBm at 10% PER
11M: less than -68dBm at 8% PER
6M: less than -68dBm at 10% PER
1M: less than -68dBm at 8% PER

Transmit Power
less than 20 dBm (EIRP)

Wireless Modes
Range Extender/Access Point

Wireless Functions
Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control

Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK

OTHERS
Certification
CE, RoHS

Package Contents
300Mbps Wi-Fi Range Extender RE105
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
7 x 4 x 4

Weight
1.00 lb
