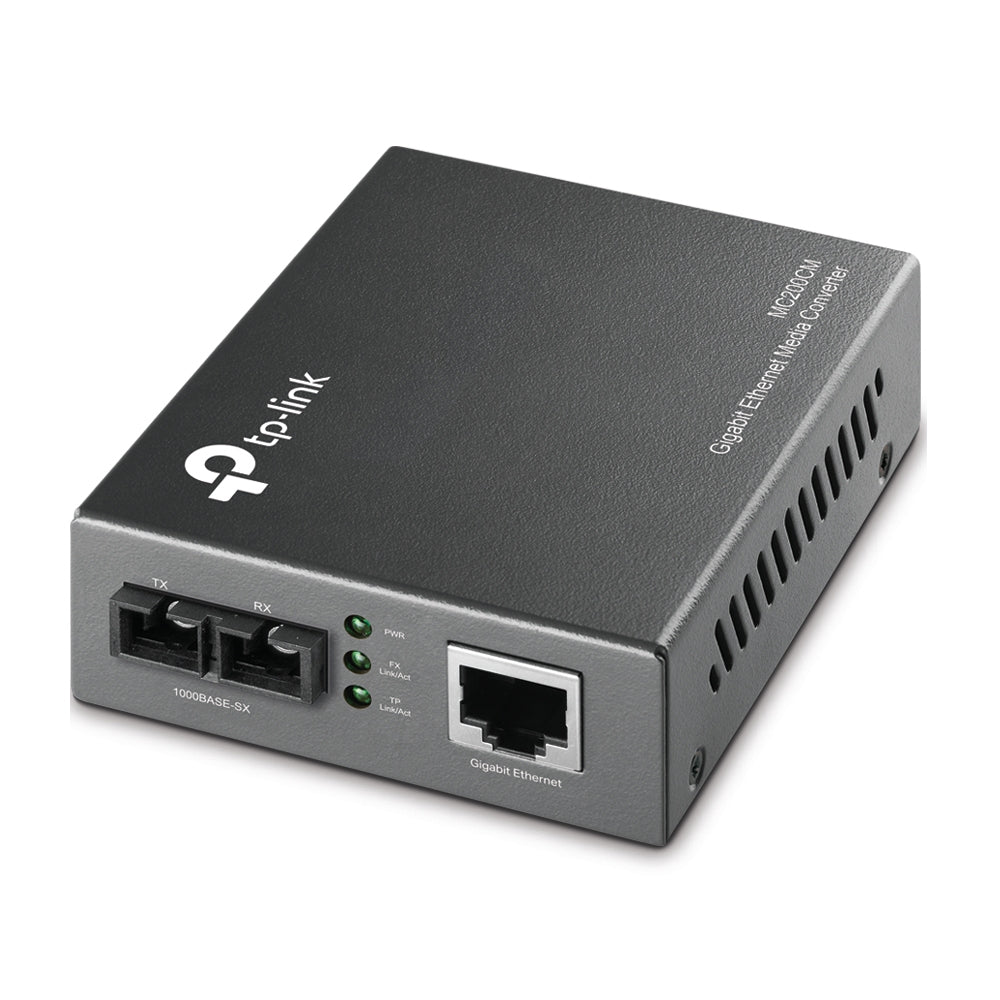

TP-Link MC200CM Gigabit Multi-Mode Media Converter (New)

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

Specifications

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports
1 1000M SC port
1 1000M RJ45 port (Auto MDI/MDIX)

Network Media
1000BASE-T : UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
1000BASE-FX : Multi-mode Fiber

LED Indicators
PWR, LINK, RX

Safety Emission
FCC, CE

Dimensions
LxWxH:8x3x7 inch

Environment
Operating Temperature: 0C - 40C (32F - 104F)
Storage Temperature: -40C - 70C (-40F - 158F)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

Power Supply
External Power Adapter
