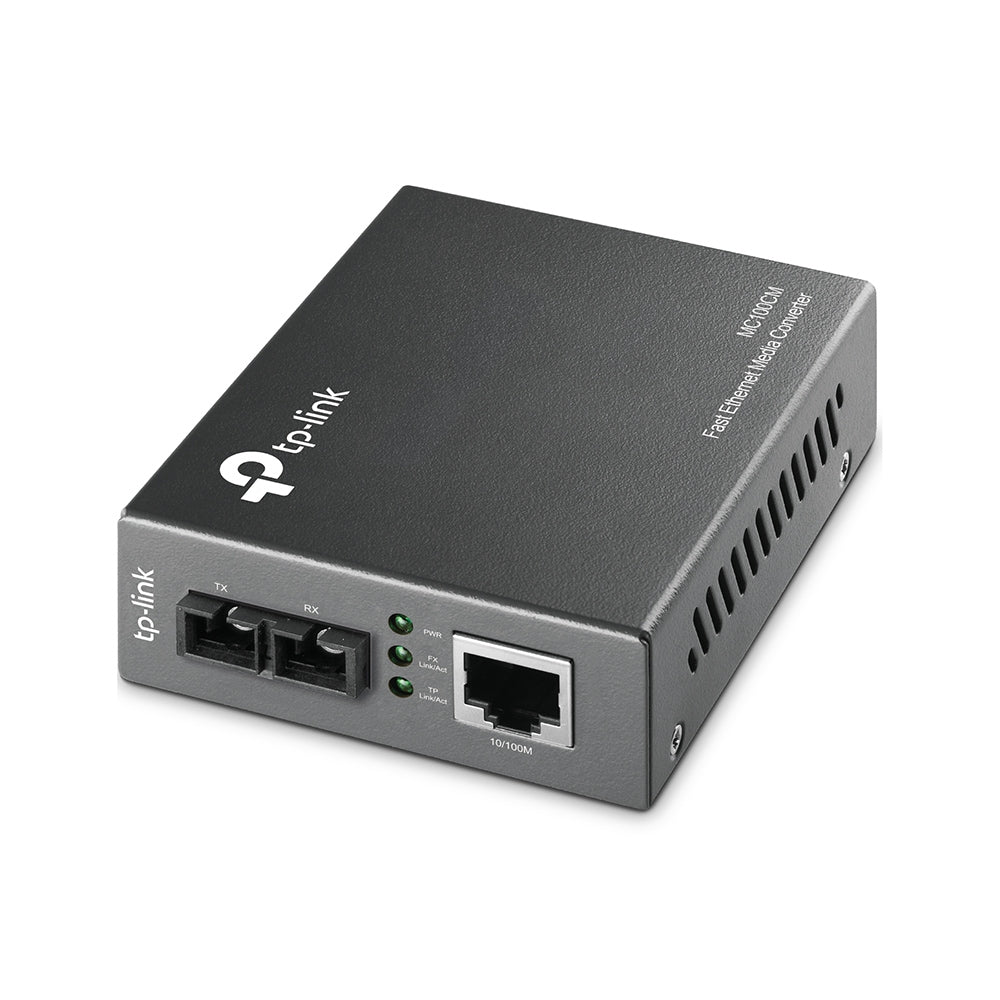

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter (New)

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.

Specifications

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic Function
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports
1 100M SC port
1 100M RJ45 port (Auto MDI/MDIX)

Network Media
10BASE-T : UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
100BASE-T : UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 STP (maximum 100m)
100BASE-FX : Multi-mode Fiber

LED Indicators
PWR, FDX/Col, Link/Act, SPD

Safety and Emission
FCC, CE

Dimension
LxWxH:8x3x7 inch

Environment
Operating Temperature: 0C - 40C (32F - 104F)
Storage Temperature: -40C - 70C (-40F - 158F)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

Power Supply
External Power Adapter
