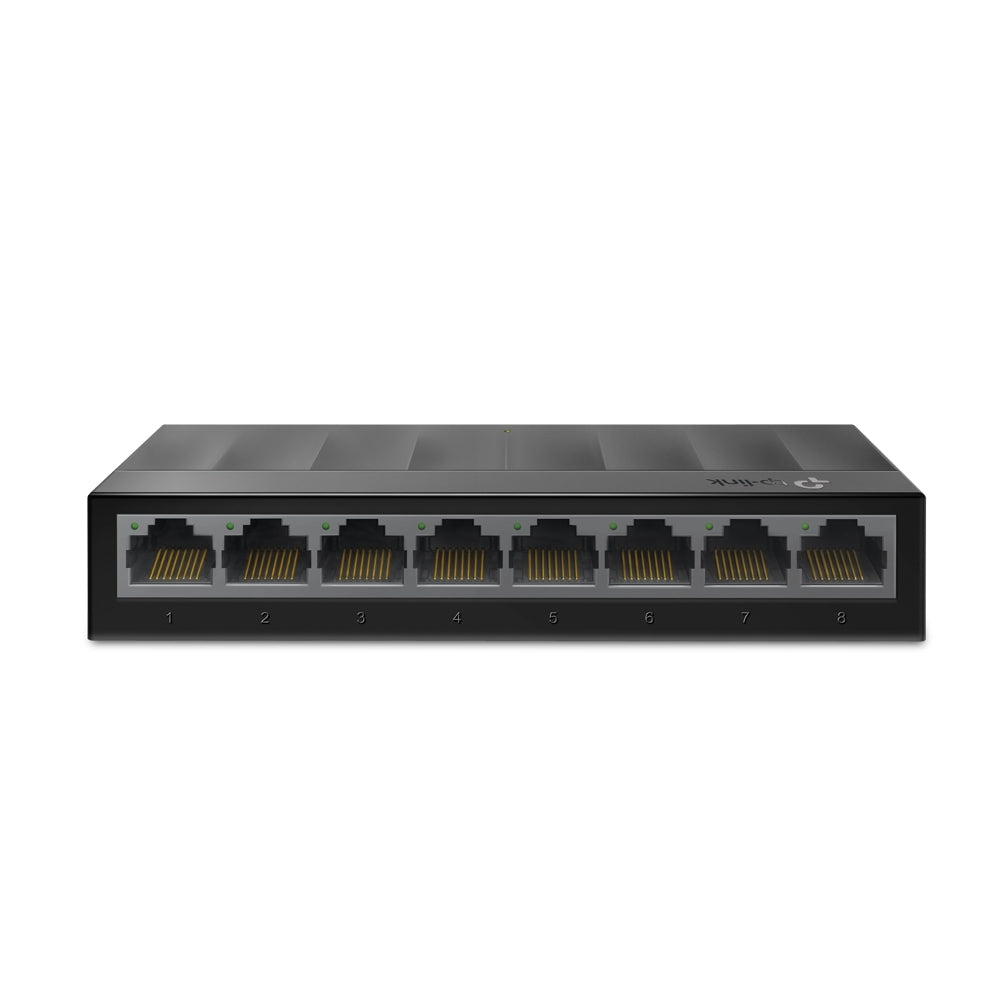

TP-Link LS1008G 8-Port 10/100/1000Mbps Gigabit Desktop Switch (New)

• 8× 10/100/1000Mbos Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing, desktop or wall-mounting design
• Plug and play, no configuration needed
• Fanless design ensures quiet operation

Increase Performance. Save Energy.
8-Port Gigabit Desktop Switch

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly.

Plug and Play
1.Connect to Power
2.Connect The Devices
3.Enjoy

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Gigabit Ports For More Reliable Speeds
Increase the reliability of your connected devices with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.

Use Where You Need, However You Need
The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface
8 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 9VDC / 0.6A)

Max Power Consumption
3.9W

Max Heat Dissipation
13.3 BTU/h

PERFORMANCE

Switching Capacity
16 Gbps

Packet Forwarding Rate
11.9 Mpps

MAC Address Table
4K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Advanced Features
Green Technology

802.3X Flow Control

Back Pressure

Transfer Method
Store and Forward

OTHERS

Certification
FCC, RoHS

Package Contents
8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature:-40^oC to 60^oC (-40^oF to 140^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
6 x 4 x 4

Weight
1.00 LB
