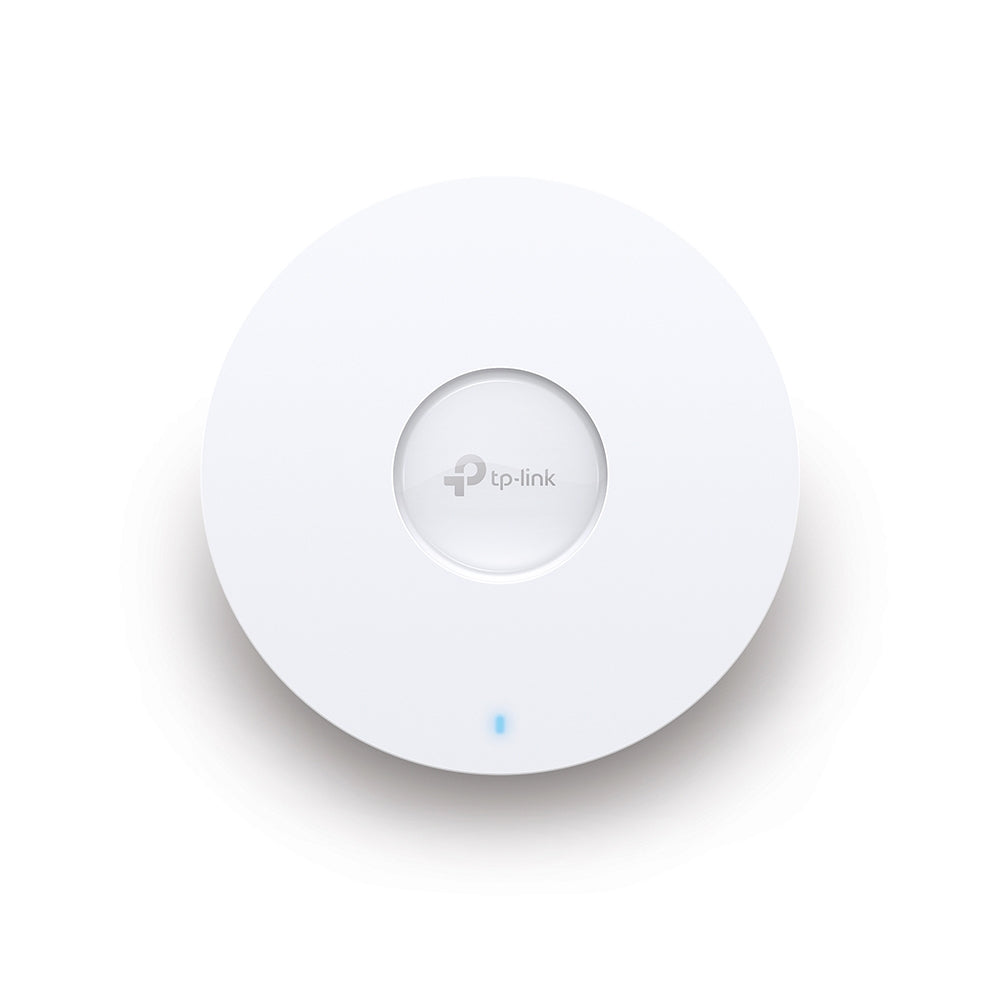

TP-Link EAP650 AX3000 Ceiling Mount Wi-Fi 6 Access Point (New)

EAP650
AX3000 Ceiling Mount WiFi 6 Access Point

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
• Ultra-Slim Design: 160 mm 33.6 mm elegant design brings more agility.

Specifications

HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12V DC (Power Adapter included)
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Power Consumption
EU: 13.5 W
US: 14.7 W
Antenna Type
Internal Omni
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4 Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm(2.4 GHz, EIRP)
Less than 23 dBm(5 GHz, Band1 and Band2, EIRP)
Less than 30 dBm(5 GHz, Band3, EIRP)
FCC:
Less than 25 dBm (2.4 GHz)
Less than 25 dBm (5 GHz)

MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP650
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 040 ^oC (32104 ^oF)
Storage Temperature: -4070 ^oC (-40158 ^oF)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing

Item Dimension (L"xW"xH")
10 x 9 x 3

Weight
2 lbs
