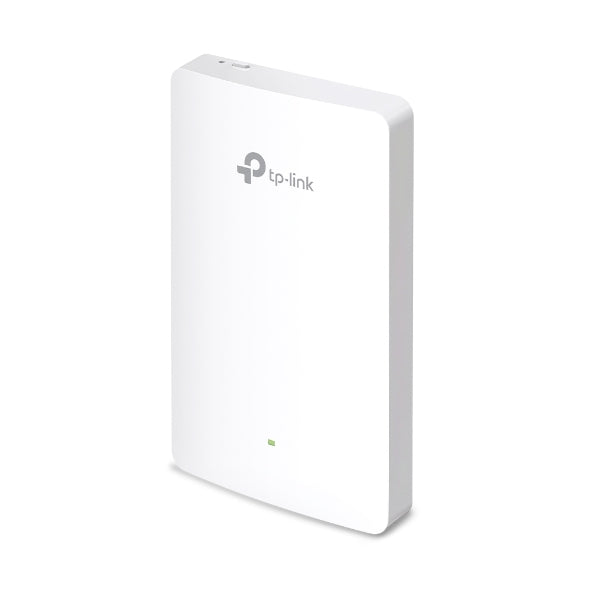

TP-Link EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point (New)

EAP615-Wall
AX1800 Wall Plate WiFi 6 Access Point

• Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
• High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
• Four Gigabit Ports: 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
• Centralized Management: Integrates into Omada SDN for cloud access and remote management.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm EU US standard junction box, and 802.3af/at PoE support.

New Experience of Room Coverage with WiFi 6

• Omada
• Wi-Fi 6

Superior WiFi 6 Speeds
Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps.

High-Performance Connectivity for Better User Experience
The latest WiFi 6 features and advanced wireless techniques guaranteee higher network efficiency and lower latency.

Specifications

HARDWARE FEATURES
Interface
Uplink: 1x 10/100/1000 Mbps Ethernet Port
Downlink: 3x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/at PoE
Power Consumption
EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Antenna
2 Dual-Band Antennas
2.4 GHz: 2x 3 dBi
5 GHz: 2x 4 dBi
Mounting
Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
MU-MIMO
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
Less than 20 dBm (2.4 GHz, EIRP)
Less than 23 dBm (5 GHz, EIRP)
FCC:
Less than 21 dBm (2.4 GHz)
Less than 21 dBm (5 GHz)

MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes

OTHERS
Certification
CE, FCC, RoHS
Package Contents
AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
Installation Guide
Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
Operating Temperature: 040 ^oC (32104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

Item Dimension (L"xW"xH")
8 x 5 x 2

Weight
1 lb
