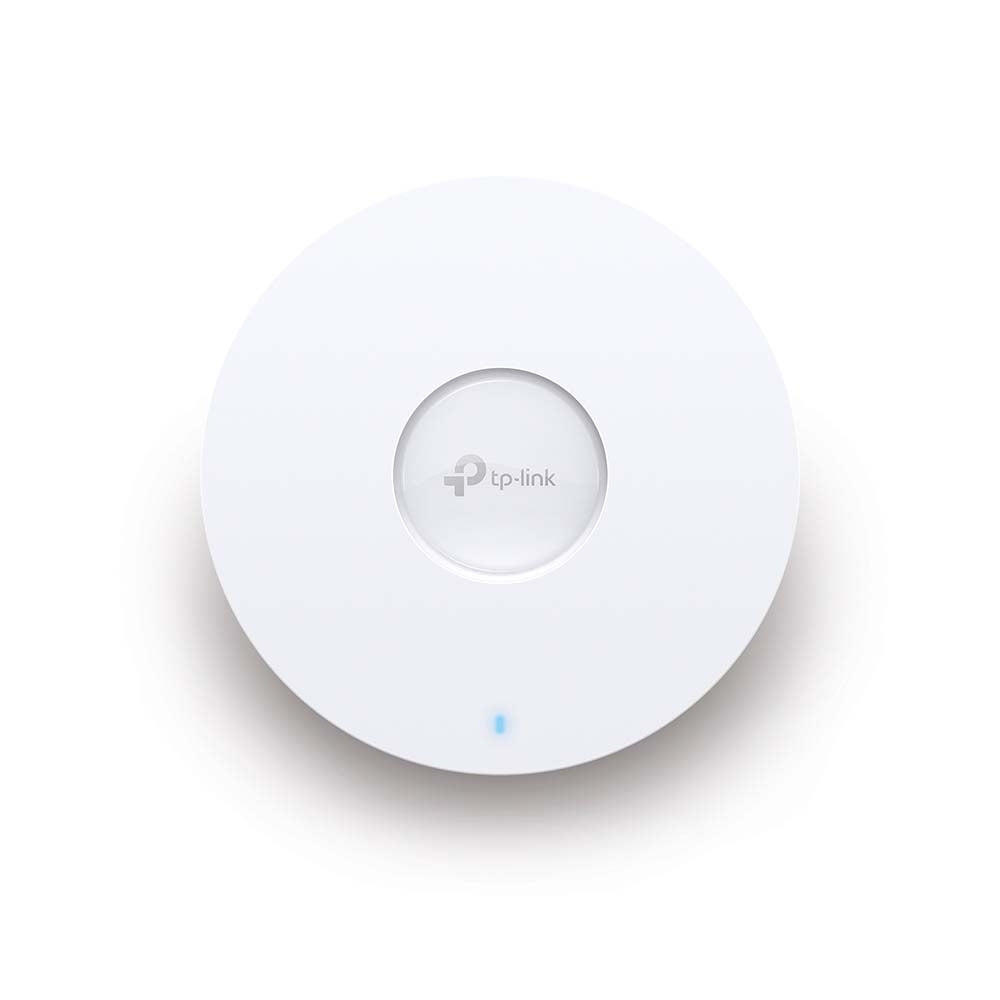

TP-Link EAP613 AX1800 Ceiling Mount Wi-Fi 6 Access Point (New)

EAP613
AX1800 Ceiling Mount WiFi 6 Access Point

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
• PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
• Ultra-Slim Design: Φ160 mm x 33.6 mm elegant design brings more agility.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications

HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port
Button
Reset
Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1 A DC (Power Adapter IS NOT included)
Power Consumption
11.0W (For PoE)
9.9W (For DC)
Antenna TypeI
nternal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller
Cloud Access
Yes, through
OC300
OC200
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP613
Ceiling/ Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment
Operating Temperature: 0-40 ^oC (32-104 ^oF)
Storage Temperature: -40-70 ^oC (-40-158 ^oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

Item Dimension (L"xW"xH")
10 x 9 x 3

Weight
2 lbs
